PLANNING
GUIDE
DR30GS, DR30GFS, DR30GIS, DR30GIFS
Distinctive
30” Wide
All Gas Ranges
Document # PG05-007
Revised 04/04/13 Page 1/5
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
All tolerances ±1/16” (±1.6 mm) unless otherwise noted.

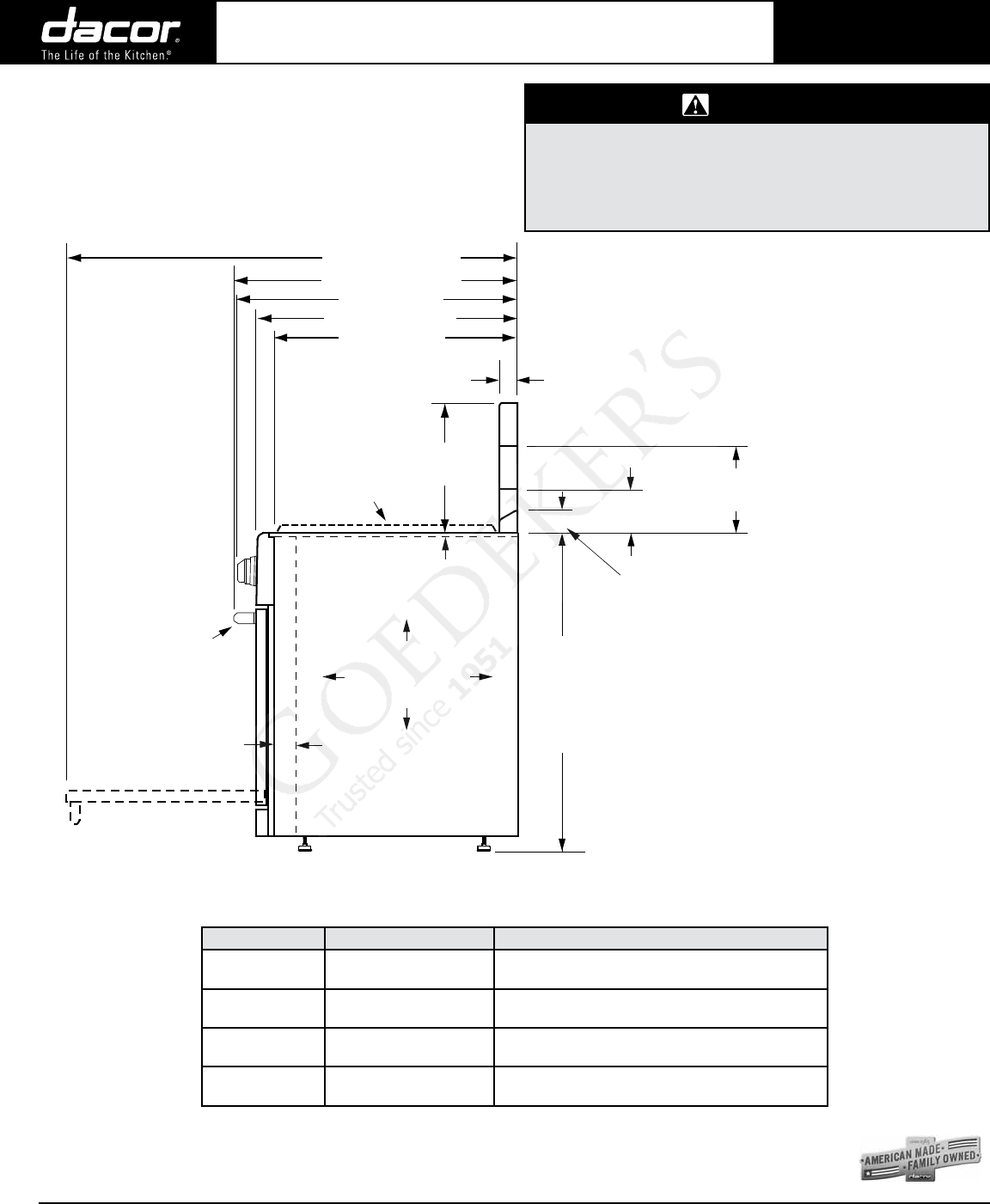

OVERALL DEPTH DIMENSIONS - SIDE VIEW
AVAILABLE BACKGUARDS
Part Number Description Compatibility
AER30GLBG Lowprole(13/4inch)
Standard on models DR30GIS, DR30GIFS
Optional on models DR30GS, DR30GFS
AERB30G03 3 Inch
Optional on models DR30GS, DR30GFS
NOT compatible with models DR30GIS, DR30GIFS
AERB30G06 6 Inch
Standard on models DR30GS, DR30GFS
NOT compatible with models DR30GIS, DR30GIFS
AERB30G09 9 Inch
Optional on models DR30GS, DR30GFS
NOT compatible with models DR30GIS, DR30GIFS
1 1/8” (2.9 cm)
DR30GI[F]S:
1/4” (6.4 mm)
thick top trim
Front of open door
Front of handle
Front panel
Rear of front panel
Backguard thickness
26 1/8” (66.4 cm)
28 9/16” (72.5 cm)
Front of knobs
28” (71.1 cm)
24” (61.0 cm)
3” (7.6 cm)
backguard*
DR30G[F]S:
Full stainless
steel side panels
DR30GI[F]S:
3 1/2” (8.9 cm)
partial stainless
steel side panels
(removable)
External handle
shown, some models
have integral handle
(see inside cover)
Grates extend
1” above trim
6” (15.2 cm)
backguard*
1 3/4” (4.4 cm) backguard*
* See table for compatibility
Product width:
29 7/8” (75.9 cm)
NOTE: Models DR30GS and
DR30GFS are not compatible
with a raised vent.
35
(88.9 cm)
to
37
(94.0 cm)
9” (22.9 cm)
Backguard*
46 3/4” (118.7 cm)
2
1
1
Only backguard model AER30GLBG is compatible with a raised vent.
