30”, 36”, 46”, 48” Wide,
Slim Raised Vent
ERV30, ERV36, ERV48
PRV30, PRV36, PRV46
L65339 rev C
8.1
8 1/2"
(216mm)
6 5/8”
(168mm)
10"
(254mm)
30"
(762mm)
18 13/16”
(478mm)
1 5/8" x 16"
Exhaust duct
Stiffener
3 3/4"
(95mm)
3/4"
(19mm)
Finished floor
1 5/8" x 16"
Exhaust duct
3 1/4" x 10"
Rear
Exhaust duct
1 5/8" x 16"
Exhaust duct
1 5/8" x 16"
Exhaust duct
48", 3 prong
grounded
power cord
Electrical
access panel
Countertop
Motor
cover
6"
(152mm)
3 1/4" x 10"
Exhaust duct
25 7/8"
(657mm)
2 13/16"
(71mm)
Cooktop/Range
Stud wall
Wall board
3/4" (19mm) Max. backsplash thickness
1/4" (6mm) Min. flat area
3"
(76mm)
9/32" (7mm)
1 15/16"
(49mm)
“B”
“A”
ATD2
10"
(254mm)

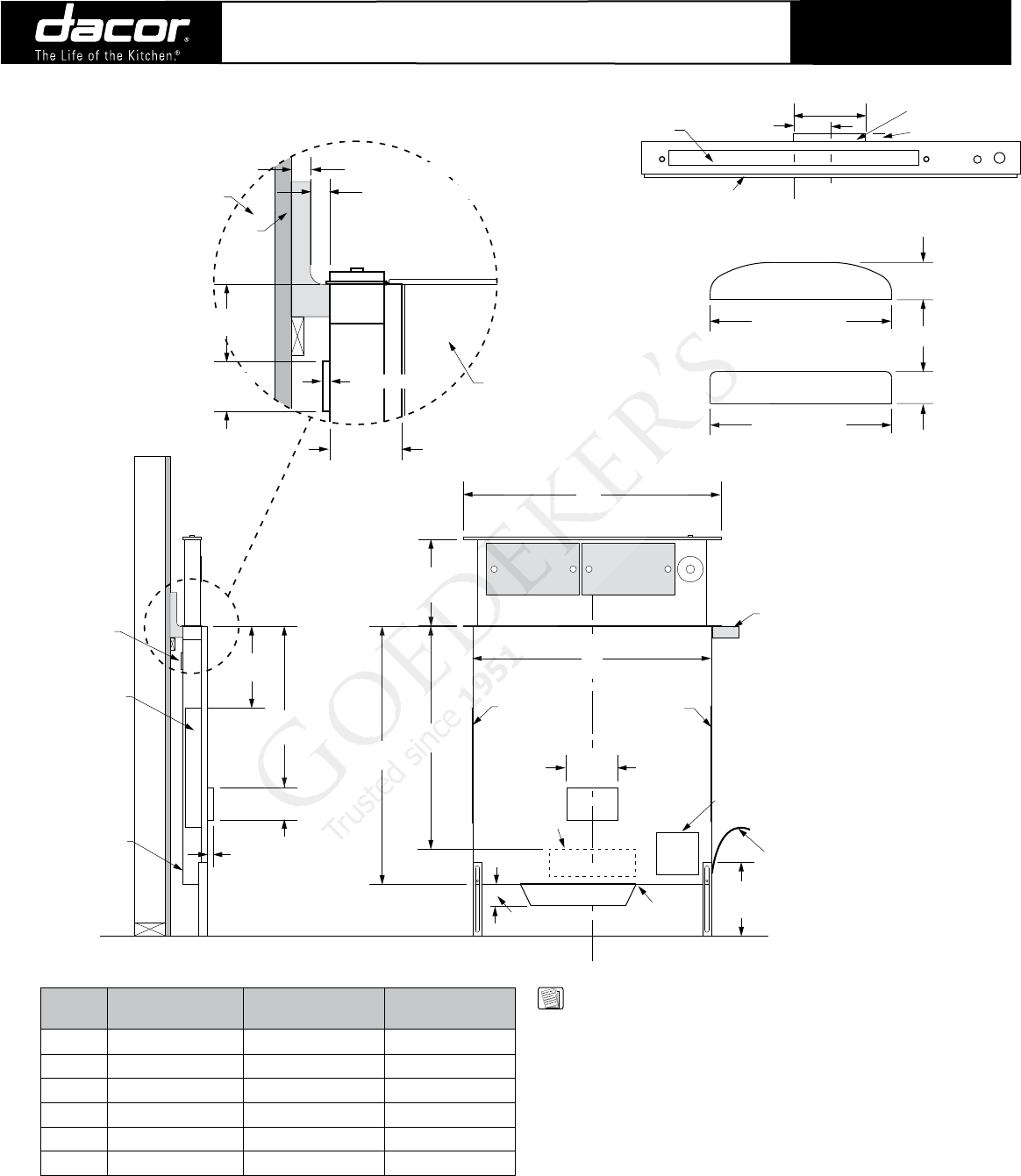

ERV/PRV OVERALL DIMENSIONS
Model
No. “A” Overall Width “B” Chassis Width
Approximate
Shipping Weight
ERV30 30” (762mm) 27 3/8” (695mm) 48 lbs.
ERV36 36” (914mm) 33 3/8” (848mm) 55 lbs.
ERV48 48” (1219mm) 43 3/8” (1102mm) 69 lbs.
PRV30 30” (762mm) 27 3/8” (695mm) 50 lbs.
PRV36 36” (914mm) 33 3/8” (848mm) 57 lbs.
PRV46 46” (1168mm) 43 3/8” (1102mm) 67 lbs.
NOTES:
1. The Dacor custom transition ATD2 ships with each
ERV and is used for the left, right or down ducting
options.
Rear ducting is designed for 3 1/4” x 10”
rectangular duct.
2. The ATD2 transitions are equivalent to 4 straight
feet.
3.
It may be necessary to route or remove the cabinet
back if the minimum interior depth cannot be met.
2 1/8" (54mm)
2 1/8" (54mm)
3/8"
(10mm)
7/16"
(11mm)
PRV Dimensions
ERV Dimensions
TOP CAP DIMENSIONS
3" (8mm)
Motor Cover
C
L
C
L
6"
(152mm)
3/4" (19mm)
of ERV/PRV
of 1 5/8" x 16" Duct Exhaust
Support Channel
Exhaust
Duct
BOTTOM VIEW
