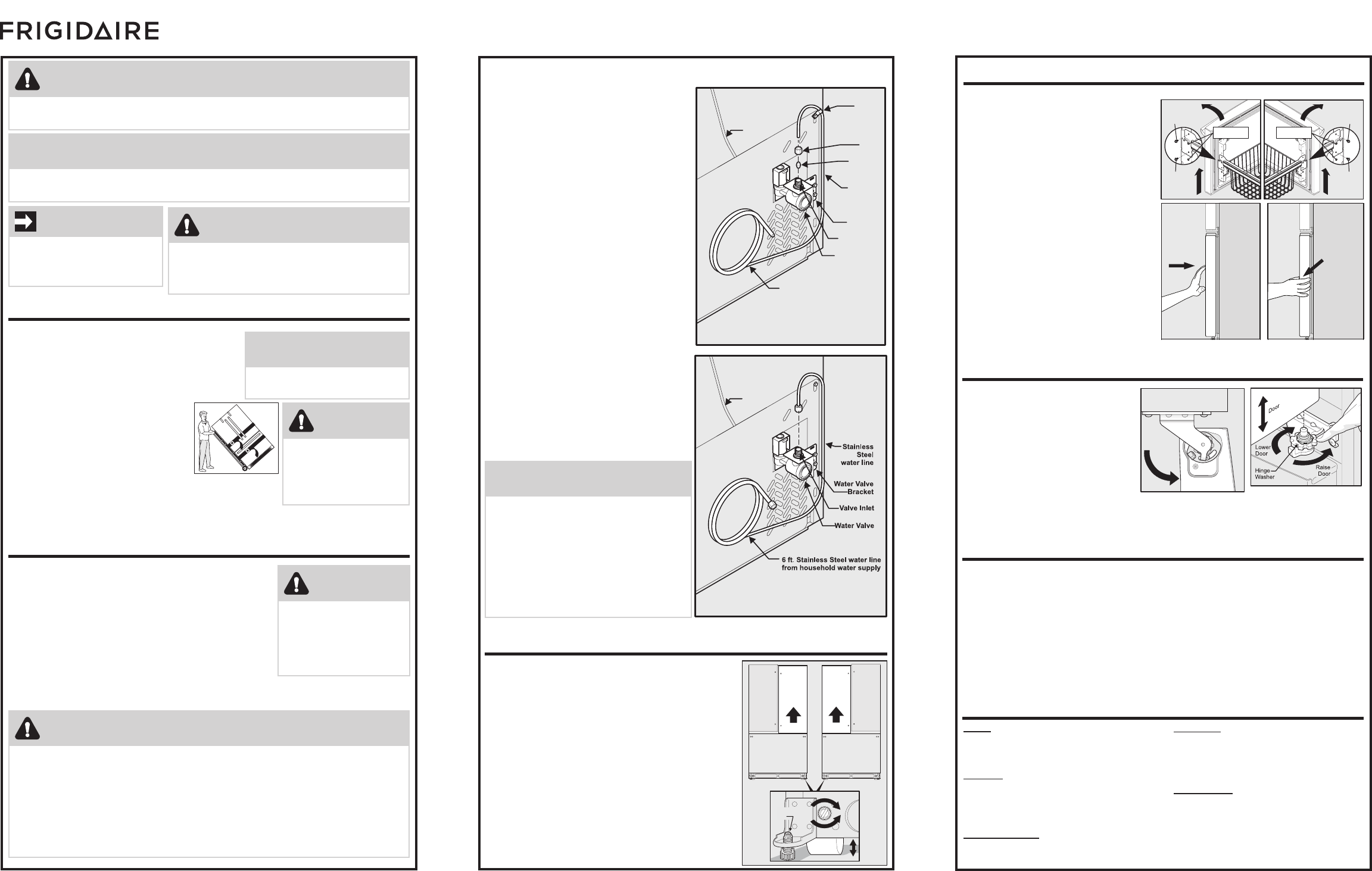

DO NOT REMOVE this label until the refrigerator has been leveled.
Please follow all instructions for leveling your refrigerator.
P/N: 242062402
2
1
7
Doors
□ Handles are secure and tight
□ Door seals completely to cabinet on all sides
□ Fresh food doors are level
Leveling
□ Refrigerator is level, side to side and tilted
¼ inch (6 mm) front to back
□ Toe grille is properly attached to refrigerator
□ Cabinet is sitting solid on all corners
Electrical Power
□ House power turned on
□ Refrigerator plugged in
Installation Check List
Preparing For Installation
Be sure to coordinate site preparation and installation
with your kitchen contractor.
Include these minimum guidelines in your site preparation:
• Chooseaplacenearagroundedelectricaloutlet.
• Donotuseanextensioncordoranadapterplug.
• Avoiddirectsunlightandcloseproximitytoarange,
dishwasher or other heat source.
• Floorshouldbelevelandabletosupportafully
loaded refrigerator.
• Therefrigerator’sIceDispenser
requires water supply access.
• Planforeasyaccesstocountertops
when removing food.
• Forcompleteaccesstodrawersand
freezer baskets, doors must be able to
fully open.
• Loadrefrigeratorfromsideofcabinet
only.
• Donotrunretainingstrapsoverhandlesnorovertightenstraps.
• Neveruserefrigeratorhandlestomovetherefrigerator.
Allowthefollowingclearancesforeaseofinstallation,properair
circulation, and plumbing and electrical connections: Sides & Top:
3
/
8
inch / Rear: 1 inch
Level Refrigerator
6
Frigidaire uses packing foam and tape to secure the internal parts of your refrigerator for
shipping. Once the refrigerator is in position, you can remove this material.
What’s Next?
Congratulations! You are ready to begin enjoying your new Frigidaire refrigerator.
• Forimportantsafetyinstructionsandtolearnhowtooperateyourrefrigerator,pleaseread
the entire Use & Care Guide.
• Youmaywanttostartwiththe“NormalOperatingSights&Sounds”sectionoftheGuideto
learnwhattoexpectduringtypicaloperation.
• Pleaseregisteryourproduct.Youcanregisteronlineatwww.frigidaire.comoryoucan
simply send in the Registration Card.
Guidelines for nal positioning of your refrigerator
• Allfourcornersofthecabinetmustrestrmlyonthe
oor.
• Thesidesshouldtilt¼inch(6mm)fromfrontto
back (to ensure that doors close and seal properly).
• Doorsshouldalignwitheachotherandbelevel.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1 You can raise or lower each door. Use a
3
/
8
inch socket
wrench to turn the adjustment screws (1 per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
2 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that cabinet
is stable.
3 Afterunitisleveled,loweranti-tipleguntilitcontacts
theoor.
To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or
bucket.TurnONwatersupplyandush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
3. Remove plastic cap from water valve inlet
and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto
water supply line. Push water supply line into
water valve inlet as far as it will go (¼ inch).
Slide ferrule (sleeve) into valve inlet and
ngertightencompressionnutontovalve.
Tighten another half turn with a wrench; DO
NOT overtighten. See Figure 1.
If you use stainless steel tubing - The nut
and ferrule are already assembled on the
tubing. Slide compression nut onto valve
inletandngertightencompressionnut
onto valve. Tighten another half turn with a
wrench; DO NOT overtighten. See Figure 2.
5. With steel clamp and screw, secure water
supply line (copper tubing only) to rear panel
of refrigerator as shown.
6.Coilexcesswatersupplyline(coppertubing
only), about 2½ turns, behind refrigerator
as shown and arrange coils so they do not
vibrate or wear against any other surface.
7. Turn ON water supply at shutoff valve and
tighten any connections that leak.
8. Reconnect refrigerator to electrical power
source.
9. To turn ice maker on, lower wire signal arm
(freezericemaker)orsettheicemaker’sOn/
Offpowerswitchtothe“ON”position(fresh
food ice maker).
BeforeInstallingTheWaterSupplyLine,YouWillNeed:
• BasicTools:adjustablewrench,at-bladescrewdriver,and
Phillips
TM
screwdriver
• Accesstoahouseholdcoldwaterlinewithwaterpressure
between 30 and 100 psi.
• Awatersupplylinemadeof¼inch(6mm)OD,copper
or stainless steel tubing. To determine the length of
tubing needed, measure the distance from the ice
maker inlet valve at the back of the refrigerator to your
coldwaterpipe.Thenaddapproximately7feet,sothe
refrigerator can be moved out for cleaning.
• Ashutoffvalvetoconnectthewatersupplylinetoyour
household water system. DO NOT use a self-piercing type
shutoff valve.
• Acompressionnutandferrule(sleeve)forconnectingacopperwatersupplylinetothe
ice maker inlet valve.
*Please refer to your Use & Care Guide for more details.
Connect Water Supply
Ice Maker
□ House water supply connected to
refrigerator
□ No water leaks present at all connections
□ Ice Maker is turned ON.
Final Checks
□ Shipping material removed
□ Fresh Food and Freezer temperatures set
3
Raise
Lower
Anti-tip
Leg
Door
Door
If you are not satised with the installation of your refrigerator, please contact the store where you purchased it or call 1-800-944-9044 for assistance.
Installing & Leveling Freezer Drawer (if necessary)
4
Remove Internal Shipping Materials
Installation Instructions* for French Door Bottom Freezer/Refrigerator
WARNING
To avoid electric shock, which can cause death or severe personal
injury, do not connect your refrigerator to an electrical power source
until you have completed Step 2 of these instructions.
CAUTION
• Shifting the refrigerator from side to side
may damage flooring.
• Do not block the toe grille on the lower
front of your refrigerator. Sufficient air cir-
culation is essential for proper operation.
IMPORTANT
If you are installing your refrigerator
without connecting it to a water
supply,makesuretheicemaker’s
power switch is turned Off (see the
Use & Care Guide for more details).
NOTE
Ifyouneedtoremovethedoorstogetyourrefrigeratorintothehouse,pleasereferto“RemovingDoors”
in the Use & Care Guide. These installation instructions are provided only as a possible customer option.
Frigidaire recommends that you use a service or kitchen contracting professional to install your refrigerator.
NOTE
Check with your local building authority for
recommendations on water lines and associated
materials prior to installing your new refrigerator.
Depending on your local/state building
codes, Frigidaire recommends for homes with
existingvalvesitsSmartChoice
®
water line kit
5305513409 (with a 6 ft. Stainless Steel Water
Line)andforhomeswithoutanexistingvalve,
Frigidaire recommends its Smart Choice
®
water
line kit 5305510264 (with a 20 ft. Copper Water
Linewithself-tappingsaddlevalve).Pleaserefer
to www.frigidaire.com for more information.
CAUTION
Room temperatures
below 55°F (13°C)
or above 110°F
(43°C) will impair
cooling ability of
your refrigerator’s
compressor.
NOTE
Please call 1-800-944-9044 if you
need assistance with this installation.
WARNING
To avoid electric shock,
which can cause death
or severe personal
injury, disconnect the
refrigerator from elec-
trical power before con-
necting a water supply
line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing is recommended for the wa-
ter supply line. Water supply tubing made of ¼ inch (6 mm) plastic
is not recommended to be used. Plastic tubing greatly increases the
potential for water leaks, and the manufacturer will not be respon-
sible for any damage if plastic tubing is used for the supply line.
• Do not reuse compression fitting or use thread seal tape.
• DO NOT install water supply tubing in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning softener can damage the ice maker.
If the ice maker is connected to soft water, ensure that the softener
is maintained and working properly.
Plastic Water
Tubing
to Filter
Copper water line
from household water supply
(Includeenough tubing in loop to allow
moving refrigerator out for cleaning.)
Ferrule
(Sleeve)
Copper
water line
WaterValve
Valve Inlet
Water Valve
Bracket
Steel
Clamp
Plastic Water
Tubing
to
Filter
Brass
Compression
Nut
Figure 1
Figure 2
®
RemoveHex
HeadDrawer
Screw
RemoveHex
HeadDrawer
Screw
DoNotRemove
OtherScrews
RemoveHex
HeadDrawer
Screw
RemoveHex
HeadDrawer
Screw
DoNotRemove
OtherScrews
A. Checkgasketsealaroundtop,bottom,
and sides of freezer drawer.
B. If gasket is not sealed, open drawer
and slightly loosen 4 drawer screws
(2 on each side) to allow drawer to
rotate.
C. Close drawer and recheck the seal
onthegasket(A).Openthedrawer
grabbing by the sides in the center
(B). Be careful not to rotate the
drawer.
D. Tighten 4 drawer screws.
E. Recheck gasket seal.
F. Installthetoegrillebytting
into place.
Pull Drawer Out
From Both Sides
Grab Drawer
At Center
Then
Push Against
Freezer Drawer
A
B
1.Installingfreezerdrawer:Referto“InstallingFreezerDrawer”intheUse&CareGuide.
2.Levelingfreezerdrawer:
Installing & Adjusting Doors (if necessary)
5
Raising/Lowering Door
Open
Door
90
degrees
Bottom of Door
Opening Door
1.Installingdoors:Referto“Installing
Doors”intheUse&CareGuide.
2.Doorsnaladjustmentusingthe
adjustable lower hinge (select
models, if necessary):
A. Opendoorsto90degrees.
B.  Liftthedoorwhileadjusting
the washer.
To raise the door: rotate
washer clockwise.
To lower the door: rotate
washer counterclockwise.
