INSTALLATION MANUAL
DUCTLESS KIT
FDK-04A
READ AND SAVE THESE INSTRUCTIONS.
FUJI INDUSTRIAL CO.,LTD .
Keep this manual in a convenient place for future reference.
www.fujioh.com
030884
FIG 1 FIG 2
FIG 3 FIG 5
FIG 6 FIG 7
CHARCOAL FILTER
BACKSIDE
FLANGE
ALUMINUM SLOT FILTER
SCREW
DUCT
7" x 2'
SCREWS (2)CHARCOAL FILTER
GRILLCONVERSION DUCT
7" TO 3-1/4" x 10"
CABINET
POWER UNIT
LINER
SOFFIT
DUCT TAPE
(NOT INCLUDED)
FIG 4
Your installation is now
complete. If you should require
service or replacement parts on
your ventilation system. contact:
Fuji Industrial USA,Inc.
16300 Christensen Rd, #212 Seattle, WA 98188
1-888-547-9880
Attach the conversion duct to
the wall or soffit.
Attach the grill with the
screws provided to the soffit.
Please refer to cross section
FIG4 for detailed assembly.
Do the taping to each joint
with the duct tape.
When installing without a
soffit, please refer FIG5
Do not use screws to join the duct parts.
Be careful not to expand the hole too much, and be
careful not to damage soffit etc.
CAUTION
Finally, please install wood
hood.
The charcoal filter should be replaced every three to
six months, depending on the amount of cooking that
is done.
NOTE
The charcoal filter is placed
on the backside of the slot
filter and it is reinstalled in
the unit.
Note do not place the
charcoal filter over screw
hole.

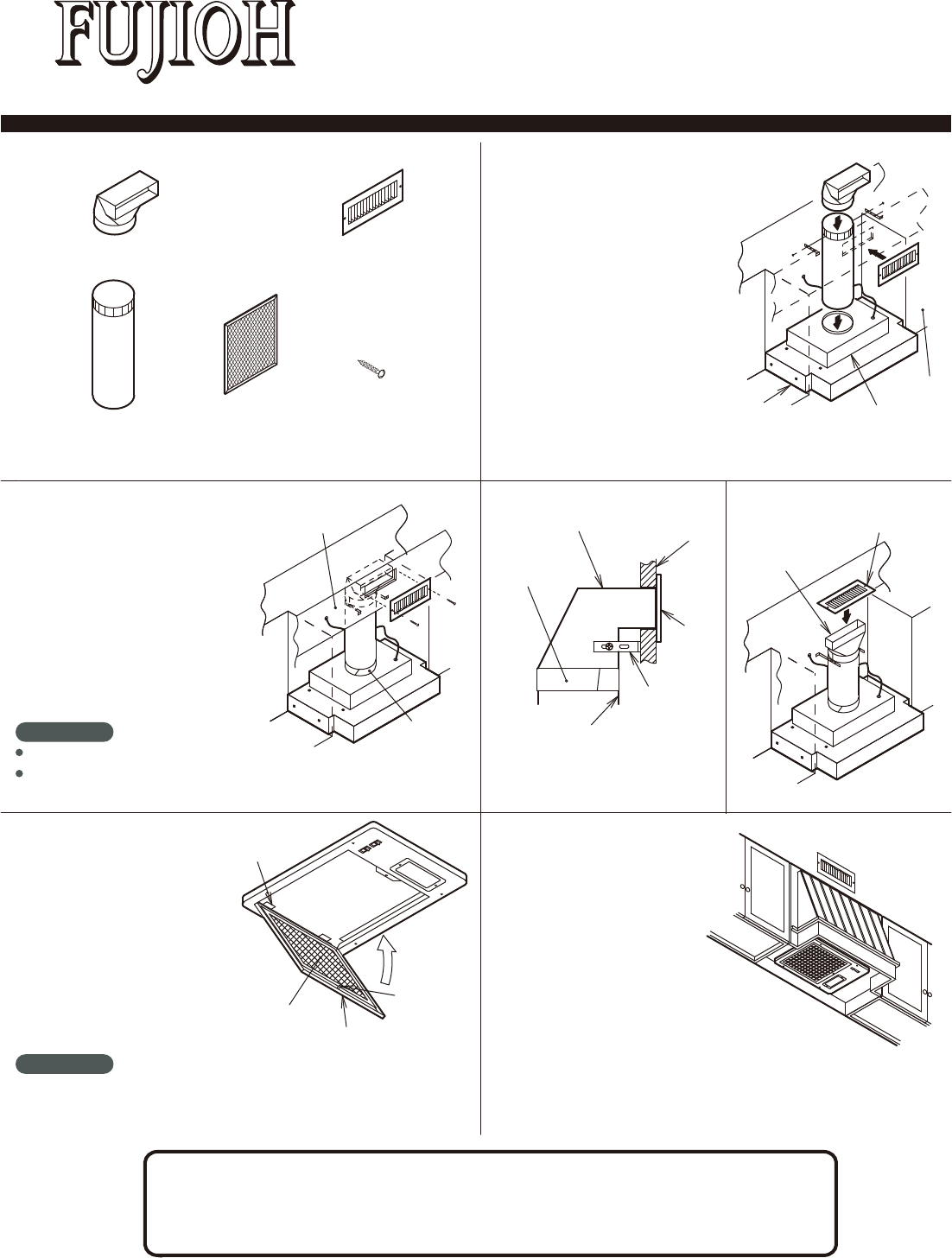

Please confirm contents in the above figure first.
The liner and the power unit are
completely installed.
Please refer to each installation
book for the installation method.
Assemble the duct and the
conversion duct temporarily, and
decide the location of the grill.
Adjust length by cutting the duct
to preferred length.
Cut a rectangular hole for the
grill in the soffit when the
location of the grill is decided.
Remove the protection seal of
the grill.
< NAME OF PARTS >
SOFFIT
GRILL
DUCT TAPE
(NOT INCLUDED)
BRACKET
(NOT INCLUDED)
CONVERSION DUCT
7" TO 3-1/4" x 10"
7" DUCT
< The cross section>
STRAIGHT
CONVERSION
DUCT
(NOT INCLUDED)
GRILL
