IDC Icemaker Adapter Kit Installation Instructions
© 2005-2007, IMI Cornelius Inc. - 1 - Publication Number: 629088662INS
INSTALLATION INSTRUCTIONS
IDC ICEMAKER ADAPTER KIT FOR P/N 629088662
1. Place bar into 1st set of pockets inside
the ice bin, gasket side up.
2. Hook cross braces over top of bar and
back of ice bin such that they fit down
inside the outer pockets of the ice bin.
Place gasket side up.
3. Place Icemaker Adapter Kit on top of
unit.
4. Place icemaker on top of kit. DO NOT
slide icemaker into position on the lid.
5. Apply continuous bead of NSF
international (NSF) listed silastic
sealant (Dow 732 or equivalent),
supplied in kit, to seal the icemaker to
the top of the adapter kit. All excess
sealant must be wiped away
immediately.
6. Drill 9/64” diameter holes, using one of
the two supplied brackets as a
template, into the rear of the icemaker
and the rear of the icemaker adapter
kit. USE EXTREME CARE NOT TO
DRILL INTO ANY ICEMAKER
COMPONENTS!!! Secure the icemaker
to the adapter using the screws and
brackets provided.

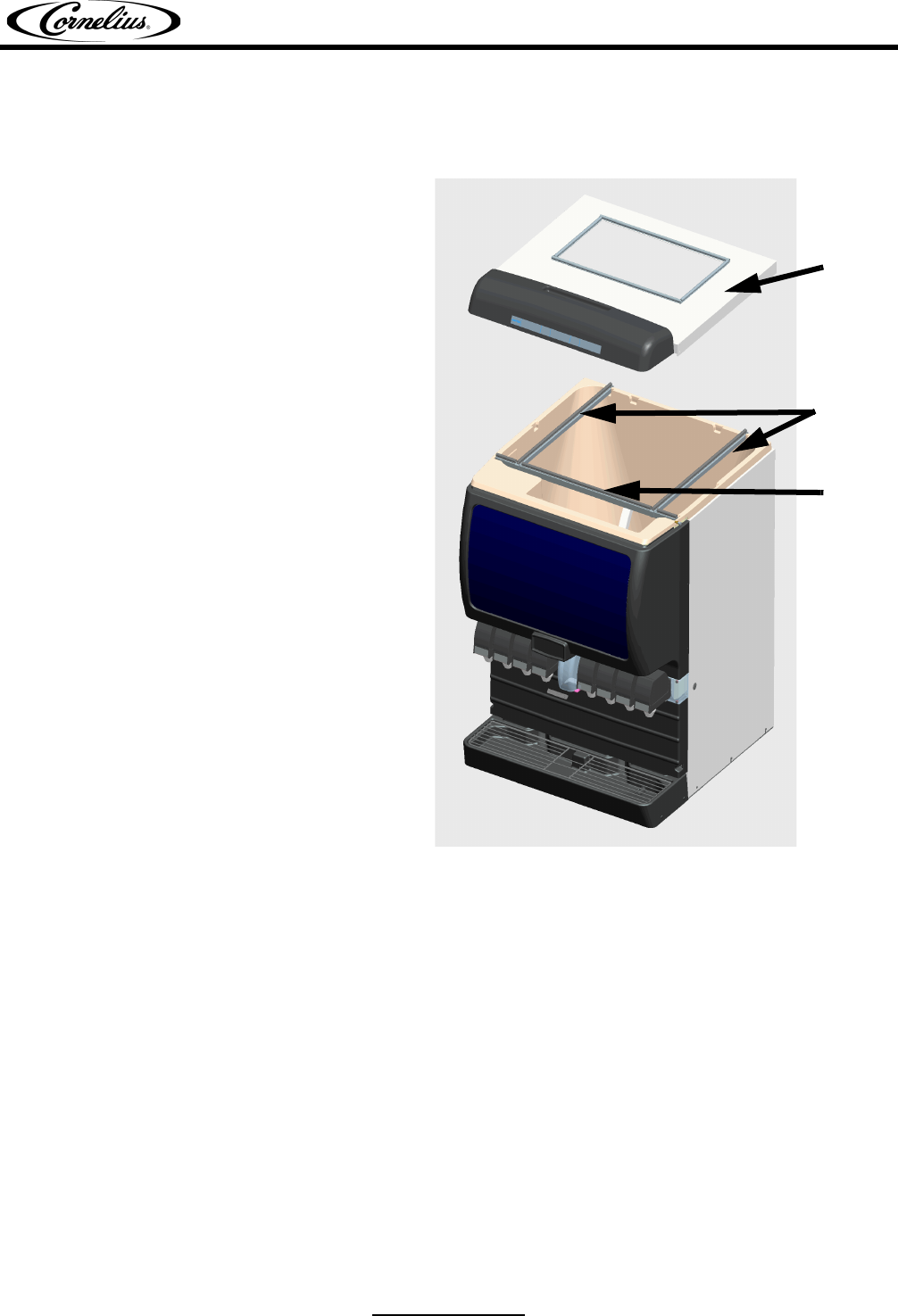

FIGURE 1
Icemaker
Adapter Kit
Bar (Gasket
side up)
Cross Braces
(Gasket side
up)
Revision Date: January 17, 2008 www.cornelius.com Revision: D
