FlavorFusion Icemaker Adaptor Kit Installation Instructions
© 2005-2006, IMI Cornelius Inc. - 1 - Publication Number: 629088673INS
INSTALLATION INSTRUCTIONS
FLAVORFUSION ICEMAKER ADAPTOR KIT FOR P/N 629088673,
629088674, 6290889675,
AND 629088676
1. Place ice slide into ice drop opening in
bin (see FIGURE 2).
2. Place bar into first set of pockets inside
the ice bin.
3. Place Icemaker Adaptor Kit on top of
unit.
4. Place icemaker on top of kit. DO NOT
slide icemaker into position on the lid.
5. Apply continuous bead of NSF
international (NSF) listed silastic
sealant (Dow 732 or equivalent),
supplied in kit, to seal the icemaker to
the top of the adapter kit. All excess
sealant must be wiped away
immediately.
6. Drill 9/64” diameter holes, using one of
the two supplied brackets as a
template, into the rear of the icemaker
and the rear of the icemaker adapter
kit. USE EXTREME CARE NOT TO
DRILL INTO ANY ICEMAKER
COMPONENTS!!! Secure the icemaker
to the adapter using the screws and
brackets provided.
7. For optimal performance, do not fill the
ice bin more than 2/3 capacity
(maximum fill is 4” below the top of bin).

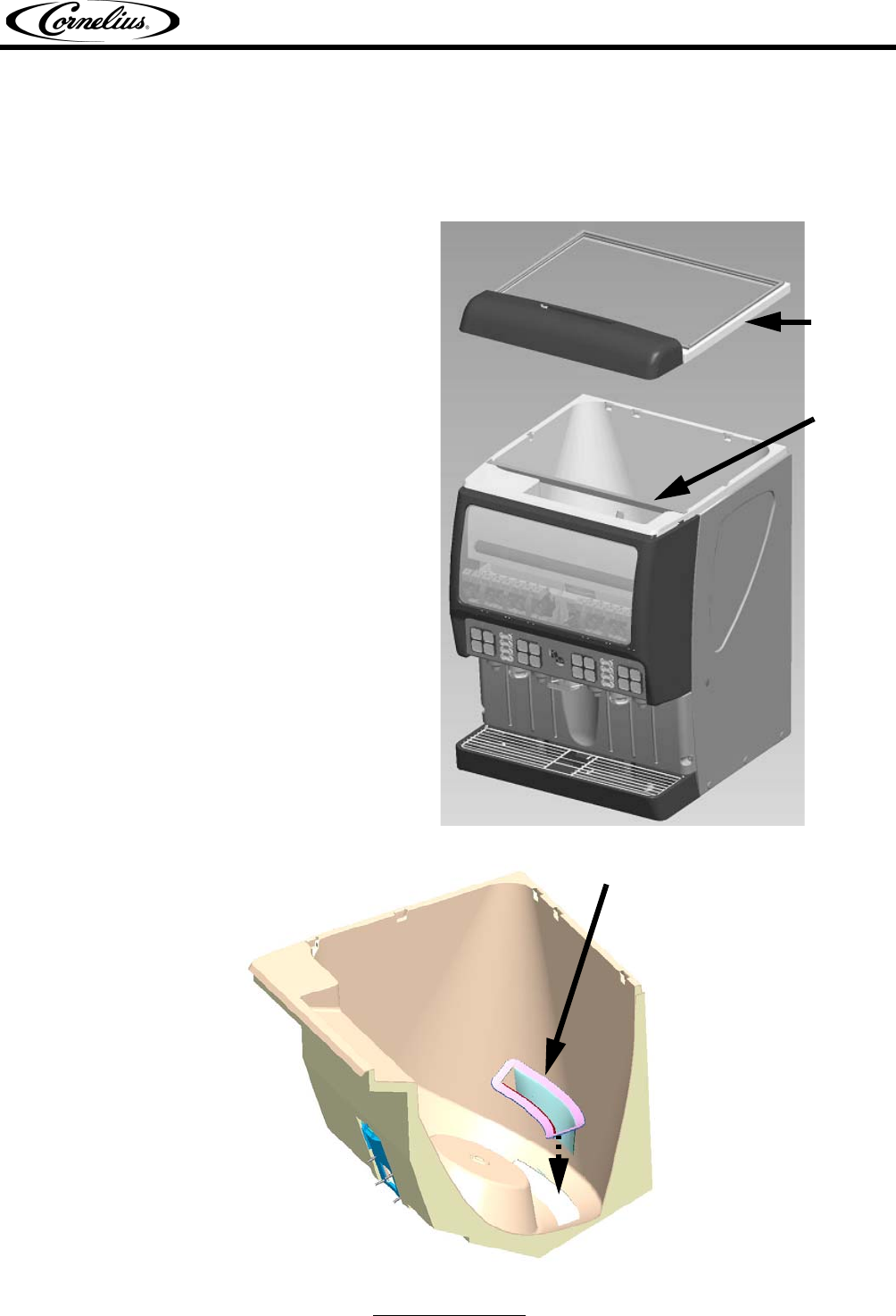

FIGURE 1
FIGURE 2
Icemaker
Adaptor
Kit
Bar
Ice Slide
Revision Date: January 27, 2006 www.cornelius.com Revision: B
