KENMORE ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
(and Optional Electric or Gas Cooktop Combination)
B
A
D
C
H
F
I
G
27 3/16”
(69.1 cm)
27 3/16”
(69.1 cm)
1¼”
(3.2 cm)
Min.
1¼”
(3.2 cm)
Min.
31”*
(78.7 cm)
31”*
(78.7 cm)
3”
(7.6 cm)
3”
(7.6 cm)
1” (2.5 cm)
Min.
1” (2.5 cm)
Min.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make the job of installing
easier. The first step of your installation should be to measure your current cutout dimensions and
compare them to the cutout dimensions chart below for your model. You may find little or no cabinet
work being necessary.

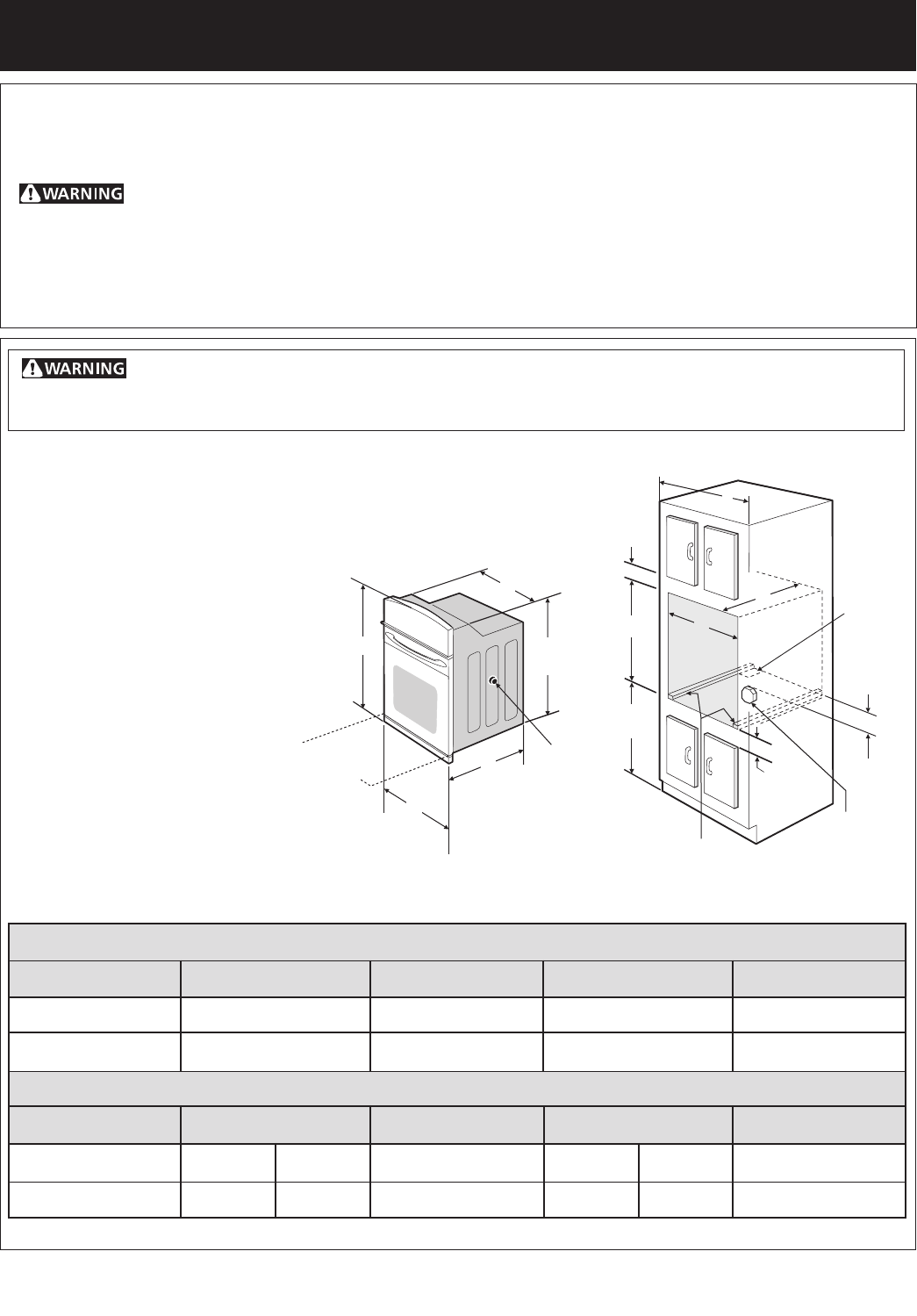

Figure 1
27" and 30" Single Wall Ovens (Double ovens see Figure 2)
P/N 318201516 (0610) Rev. E
English – pages 1-10
All dimensions are in inches (cm).
Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in
oven. These spacers center the oven in the space provided. The oven must be centered to prevent
excess heat buildup that may result in heat damage or fire.
2" (5 cm) Wide Wood
Spacer if Needed
PRODUCT DIMENSIONS
CUTOUT DIMENSIONS AND CABINET WIDTH
Min. F Max.
Min. H Max.
MODEL
27" (68.6 cm) Wall Oven
30" (76.2 cm) Wall Oven
MODEL
27" (68.6 cm) Wall Oven
30" (76.2 cm) Wall Oven
A
27 (68.6)
30 (76.2)
B
29
1
/
16
(73.8)
29
1
/
16
(73.8)
G (Min.)
23½ (59.7)
23½ (59.7)
C
24
5
/
8
(62.5)
28¼ (71.8)
D
24½ (62.2)
24½ (62.2)
I
27
1
/
8
(68.9) Min
30
1
/
8
(76.5) Min
24
7
/
8
(63.2)
28½ (72.4)
25¼ (64.1)
29 (73.7)
27¼ (69.2)
27¼ (69.2)
28½ (72.4)
28½ (72.4)
NOTES:
1. Base must be capable of supporting 150 pounds (68 kg) for 27" models and
200 pounds (90 kg) for 30" models.
2. Allow at least 21" (53.3 cm) clearance in front of oven for door
depth when it is open.
3. Dimension G (cutout depth) is critical to
the proper installation of the built-in
oven. If the oven decorative trim does
not butt against the cabinet, or if noise
is heard on convection models, verify
dimension G to assure it is the required
* Suggested distance from floor is 31" (78.7 cm).
Minimum required distance is 4 ½" (11.4 cm)
Door Open
(see note 2)
Spacer
Electrical
Junction Box
Hole for
Cable
depth.
4. For a cutout height greater than
27
13
/
16
"
(70.6 cm) add one 2"
(5 cm) wide wood shim of
appropriate height to each side
of the opening under the
appliance side rails.
