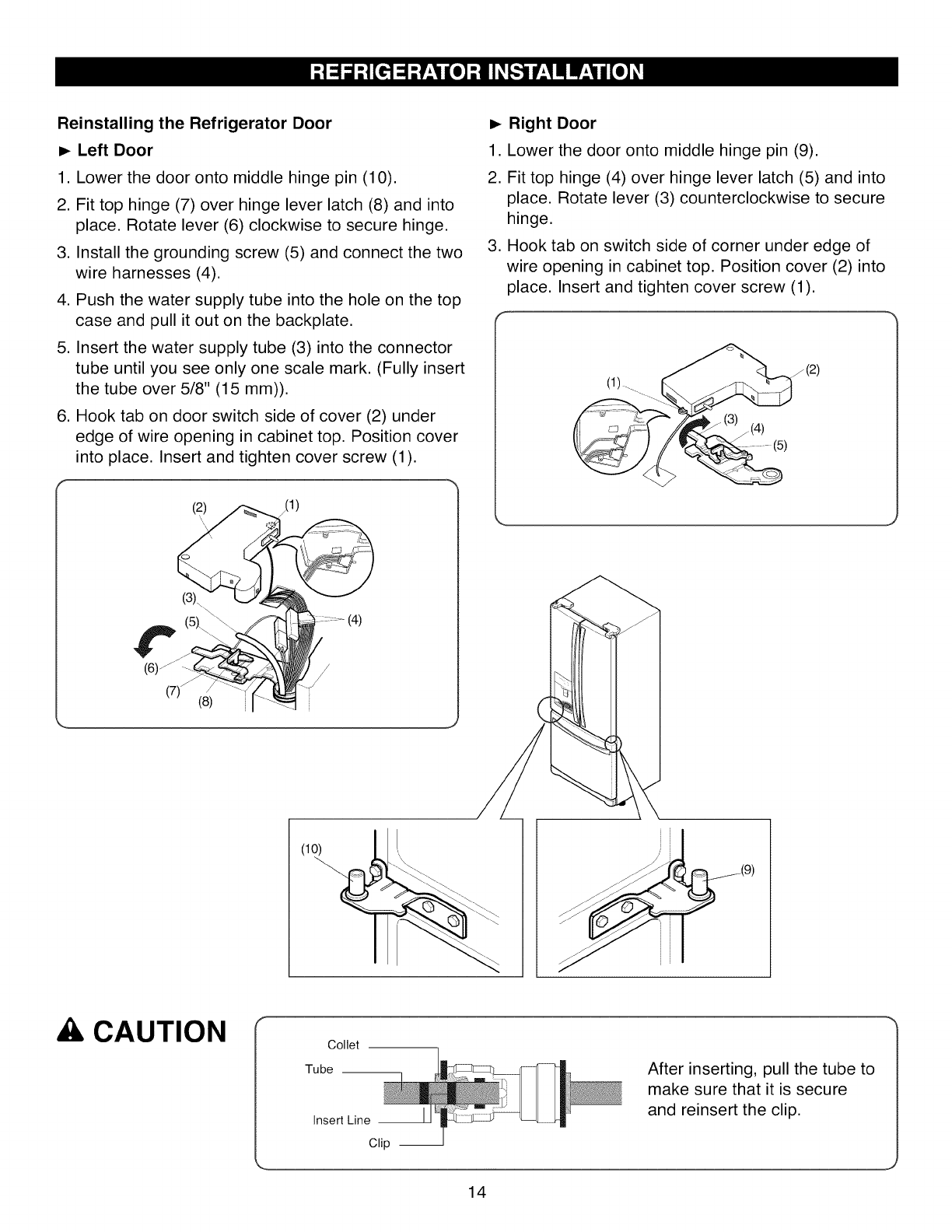

Reinstalling the Refrigerator Door
Left Door
1. Lower the door onto middle hinge pin (10).
2. Fit top hinge (7) over hinge lever latch (8) and into
place. Rotate lever (6) clockwise to secure hinge.
3. Install the grounding screw (5) and connect the two
wire harnesses (4).
4. Push the water supply tube into the hole on the top
case and pull it out on the backplate.
5. Insert the water supply tube (3) into the connector
tube until you see only one scale mark. (Fully insert
the tube over 5/8" (15 mm)).
6. Hook tab on door switch side of cover (2) under
edge of wire opening in cabinet top. Position cover
into place. Insert and tighten cover screw (1).
(2) /1)
(3).
(7)_
(8)
_,- Right Door
1. Lower the door onto middle hinge pin (9).
2. Fit top hinge (4) over hinge lever latch (5) and into
place. Rotate lever (3) counterclockwise to secure
hinge.
3. Hook tab on switch side of corner under edge of
wire opening in cabinet top. Position cover (2) into
place. Insert and tighten cover screw (1).
(1)..... _/(2)
.........._,_(3) (4) ,_,
(10)
IL
A CAUTION
Collet
Tube
Insert Line
Clip --
After inserting, pull the tube to
make sure that it is secure
and reinsert the clip.
