KitchenAid DHT-486XP Refrigerator User Manual



Page 2
36" (91 cm) 42" (106 cm) 48" (122 cm)
A 36" (91 cm) 42" (106 cm) 48" (122 cm)
B
Panel model
83-5/8" (212 cm)* 83-5/8" (212 cm)* 83-5/8" (212 cm)*
B 83-1/8" (211 cm) 83-1/8" (211 cm) 83-1/8" (211 cm)
C 25-1/8" (64 cm) 25-1/8" (64 cm) 25-1/8" (64 cm)
D 23-1/2" (60 cm) 23-1/2" (60 cm) 23-1/2" (60 cm)
E 3-1/2" (9 cm)* 3-1/2" (9 cm)* 3-1/2" (9 cm)*
F 83-1/8" (211 cm)* 83-1/8" (211 cm)* 83-1/8" (211 cm)*
G 24" (61 cm) 24" (61 cm) 24" (61 cm)
H 35" (89 cm) 41" (104 cm) 47" (119 cm)
I 25" (63.5 cm) 25" (63.5 cm) 25" (63.5 cm)
Before you
start...
Keep cardboard shipping piece or
plywood under refrigerator until it is
installed in the operating position.
Front view
A
C
D
G
E
F

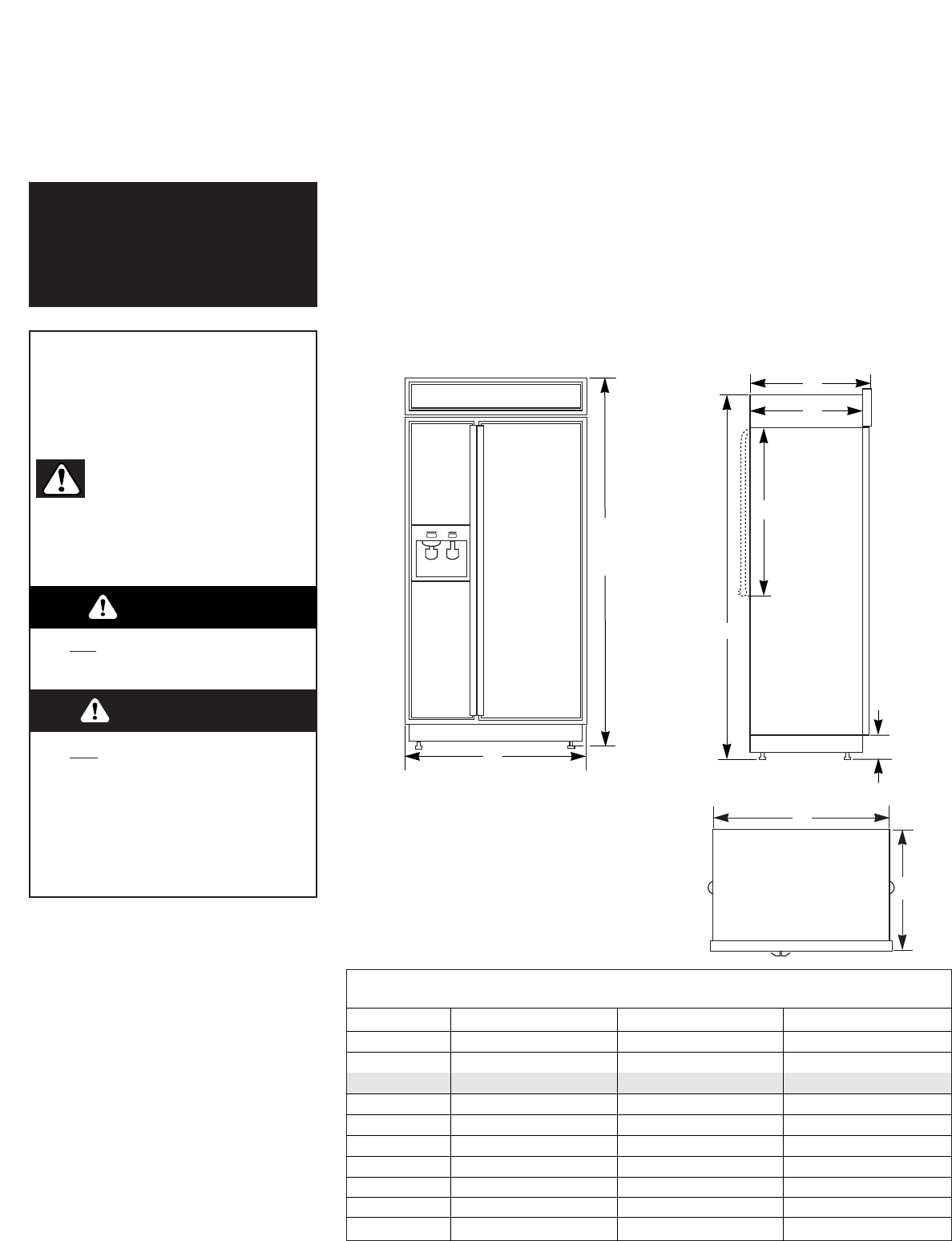

Product dimensions
* Dimensions shown are for leg levelers
extended 1/8" (3 mm) below rollers. For
levelers fully extended 1-1/4" (32 mm)
below rollers, add 1-1/8" (29 mm) to this
dimension.
Important:
Observe all governing codes and
ordinances.
It is your responsibility to:
• Comply with installation specifications
and dimensions.
• Properly install refrigerator.
• Remove any moldings or decorative
panels that prevent the refrigerator
from being serviced.
• Make sure that you have these
materials necessary for proper
installation:
1/4" (6 mm) copper tubing with
shutoff valve
Panel models only:
The “B” dimension can be increased or
decreased 1/2 inch (1.3 cm) by using
Grille Kits available from your dealer.
To increase: use “84-inch” Grille Kit
No. 4378788 (Silver Trim) or 4378789
(White Trim).
To decrease: use “83-inch” Grille Kit
No. 4378786 (Silver Trim) or 4378787
(White Trim).
Top view
H
I
Your safety and the safety of others
is very important.
We have provided many important
safety messages in this manual and
on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to
hazards that can kill or hurt
you and others. All safety messages
will be preceded by the safety alert
symbol and the word “DANGER” or
“WARNING”. These words mean:
All safety messages will identify the
hazard, tell you how to reduce the
chance of injury, and tell you what can
happen if the instructions are not
followed.
You will be killed or seriously
injured if you don’t follow
instructions.
You can be killed or seriously
injured if you don’t follow
instructions.
Side view
1/4" (6 mm) compression fitting
6 – #8 x 3" (7.6 cm) wood screws
(Longer screws may be
required.)
2 – 2" x 4" x 32" (5 cm x 10 cm x
81 cm) min. wood boards
(See Page 4.)
• Assure that floor will support
refrigerator weight (more than
600 lb/272 kg), door panels,
and contents.
• Provide a properly grounded electrical
outlet.
• Assure that location will permit
appliance doors to open 90°
minimum.
B
See
Note.
WARNING
DANGER
Panel models and wraparound stainless steel door models
Dispenser and Non-Dispenser
Wraparound
stainless steel model
Important:
• Installer: Leave Installation
Instructions with the homeowner.
• Homeowner: Keep Installation
Instructions for future reference.
• Save these Installation Instructions for
the local electrical inspector’s use.
