7622073 ICE SCOOP CLAMP
Mounting Instructions

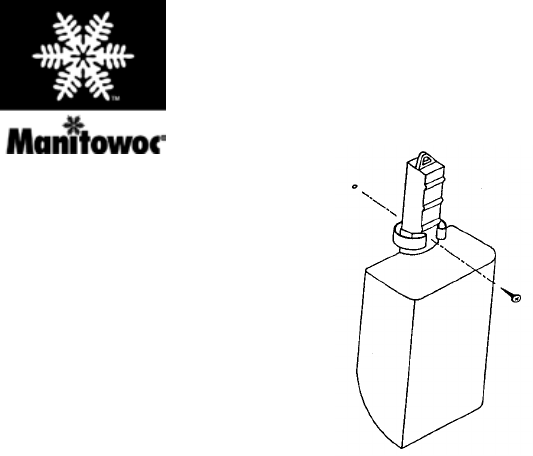

Place clamp on scoop handle.
Position handle in an ideal
location.
Mark the clamp position.
Drill a 1/8" diameter hole
for mounting screw.
Manitowoc Ice, Inc.
2110 South 26
th
Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 8002223
Web Site - www.manitowocice.com Rev. 10/23/03
