Pitco Frialator, Inc., P.O. Box 501, Concord, NH 03302-0501 x1509 Route 3A, Bow NH 03304, USA
Phone (603) 225-6684 x Fax (603) 225-8472 x www.pitco.com
L10-126 Rev 5 (02/07)

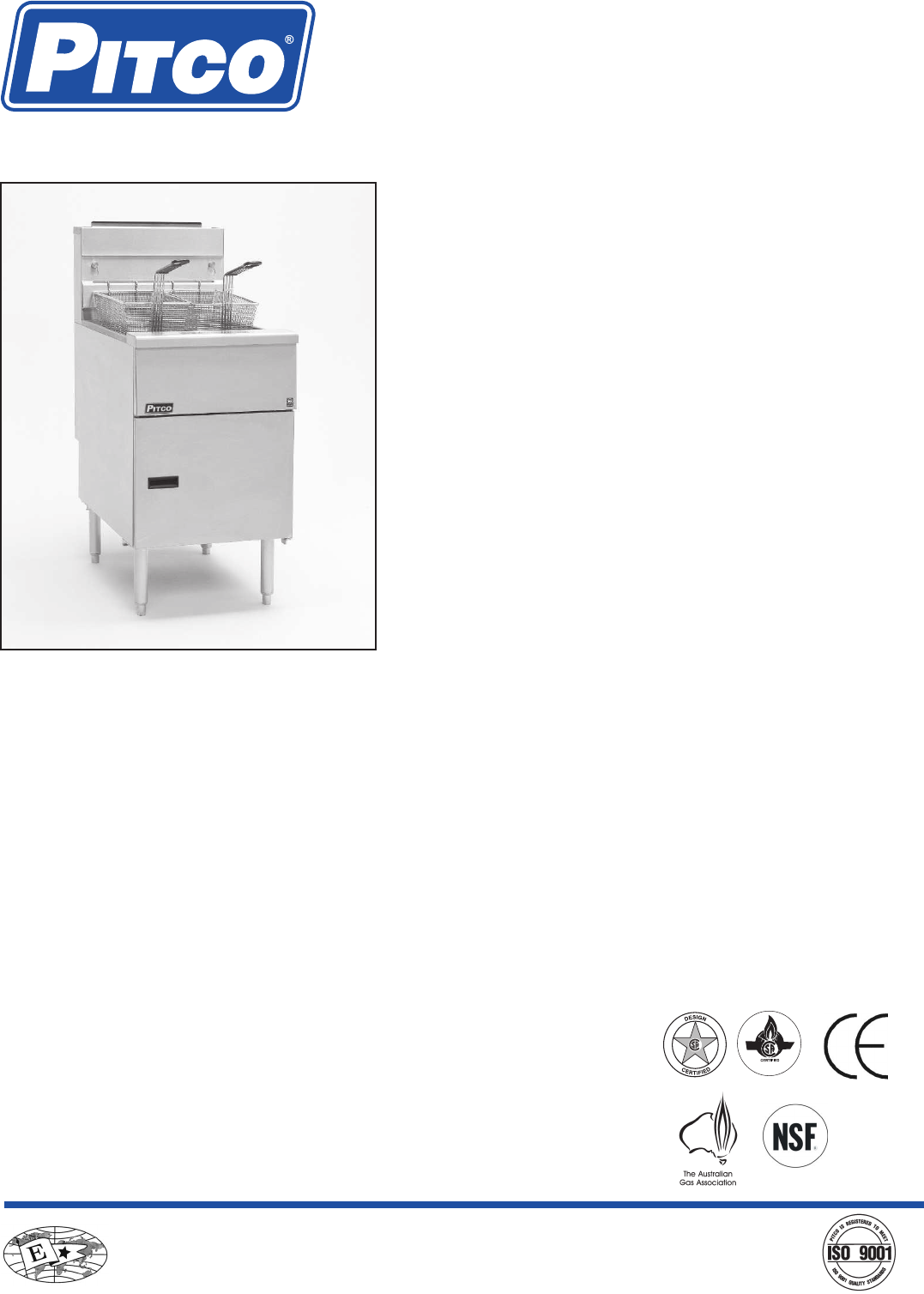

Model SG18S with Options
Tube Fired Gas Fryer
Project __________________________
Item number _____________________
Quantity _________________________
Model SG18S w/Options
APPROVALS
CSA Certified
(AGA, CGA)
NSF Listed
MEA Approved
CE Certified
Australian Gas Assoc.
Certified (AuGA)
Patent Pending
STANDARD ACCESSORIES
Choice of basket options
Two nickel-plated, oblong, wire mesh baskets
One nickel-plated, square, wire mesh basket
One nickel-plated tube rack
One drain extension
One drain line clean-out rod
Fryer cleaner sample
Rear gas connection
Manual gas shutoff
1
1/4” (3.2 cm) full port drain valve
Built-in integrated flue deflector
Removable basket hanger for easy cleaning
9” (22.9 cm) adjustable legs
Cabinet - stainless steel front, door, and sides
AVAILABLE OPTIONS & ACCESSORIES
Stainless steel back
Basket Lift*
Solid State Thermostat**
Digital controller**
Triple baskets
Covers
Intellifry computer control**
Computer back-up thermostat
9” (22.9 cm) adjustable casters
*Only available with digital or computer controls.
**Includes matchless ignition, melt cycle, and drain valve
interlock switch.
STANDARD SPECIFICATIONS
CONSTRUCTION
Welded tank with an extra smooth peened finish en-
sures easy cleaning.
Long-lasting, high-temperature alloy stainless steel heat
baffles are mounted in the heat exchanger tubes to
provide maximum heating and combustion efficiency.
Standing pilot light design provides a ready flame when
heat is required.
Stainless steel front, door, side, and splashback.
Heavy duty 3/16” (.48 cm) door hinge.
CONTROLS
Millivolt thermostat maintains selected temperature
automatically between 200qF (93qC) and 400qF (190qC-
CE).
Integrated gas control valve acts as a manual and pilot
valve, automatic pilot valve, gas filter, pressure regulator,
and automatic main valve.
Gas control valve prevents gas flow to the main burner
until pilot is established and shuts off all gas flow
automatically if the pilot flame goes out.
Temperature limit switch safely shuts off all gas flow if
the fryer temperature exceeds the upper limit.
New Solstice burner/baffle design.***
-Increases cooking production.
-Lowers flue temperature.
-Improves working environment.
-Generates more production per BTU.
***Compared to previous models.
OPERATIONS
Front 1
1/4” (3.2 cm) full port drain for quick draining.
9” (22.9 cm) clearance allows for ease of cleaning.
Reversible tube rack converts fry depth from basket
operation to cooking free floating products.
