Drain Plumbing

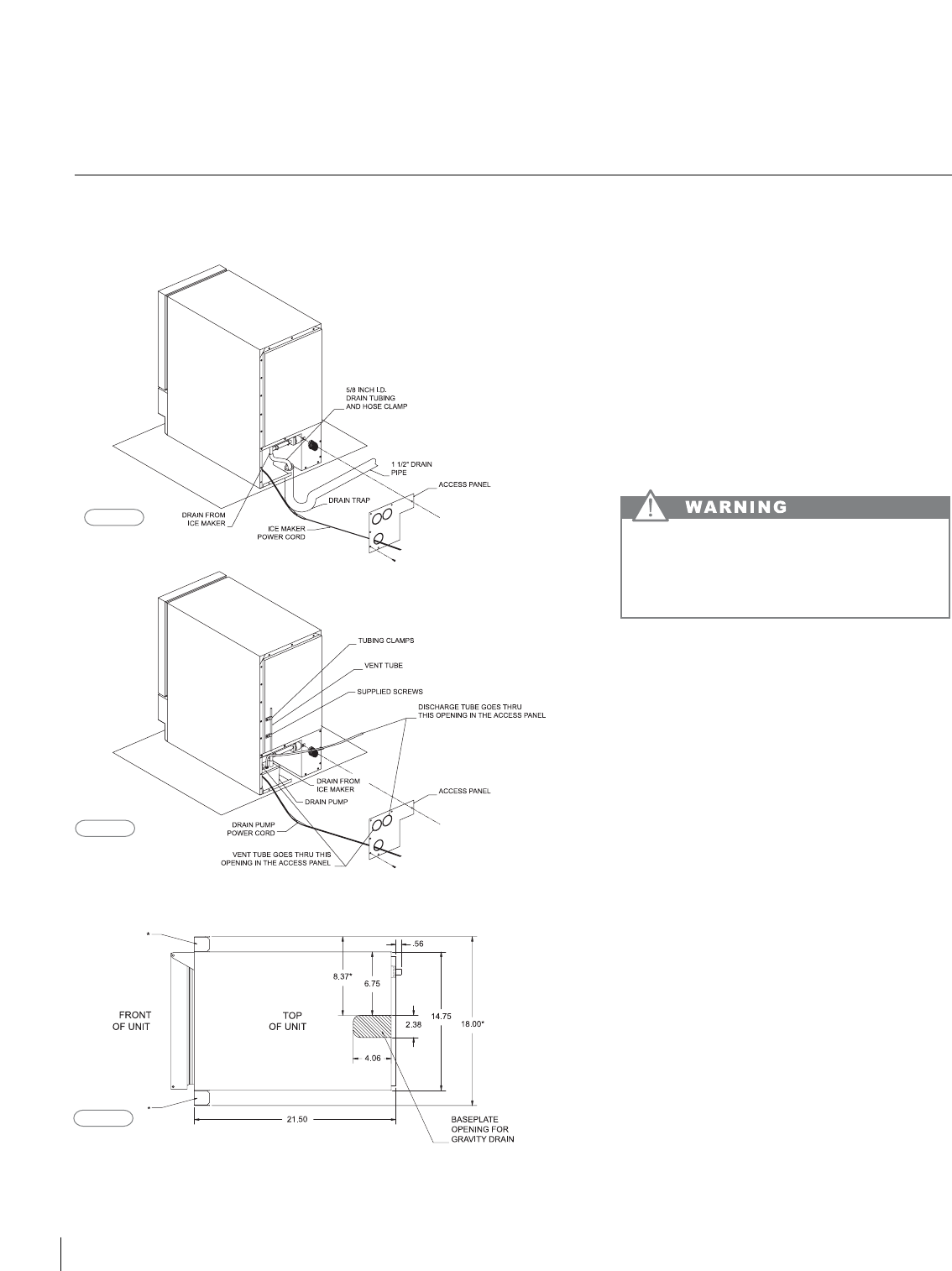

Your ice machine uses a gravity drain, (figure 1)
that requires 5/8" I.D. tubing from the back of the
ice machine to a plumbed connection to a sanitary
sewer. Remove the access panel to plumb in drain
connection. Gravity drain location for built-in units
can be within the area shown in figure 3. An option-
al drain pump, (figure 2) can be purchased for your
ice machine if a gravity drain is not accessible.
OBSERVE AND FOLLOW ALL LOCAL CODES
WHEN INSTALLING ICE MACHINE.
5
INSTALLATION: DRAIN PLUMBING
figure 1
figure 2
figure 3
Gravity Drain Location
* With optional filler kit
FAILURE TO USE ADEQUATE DRAINAGE
SYSTEM WILL RESULT IN SURROUNDING
WATER DAMAGE AND/OR POOR ICE
PRODUCTION.
