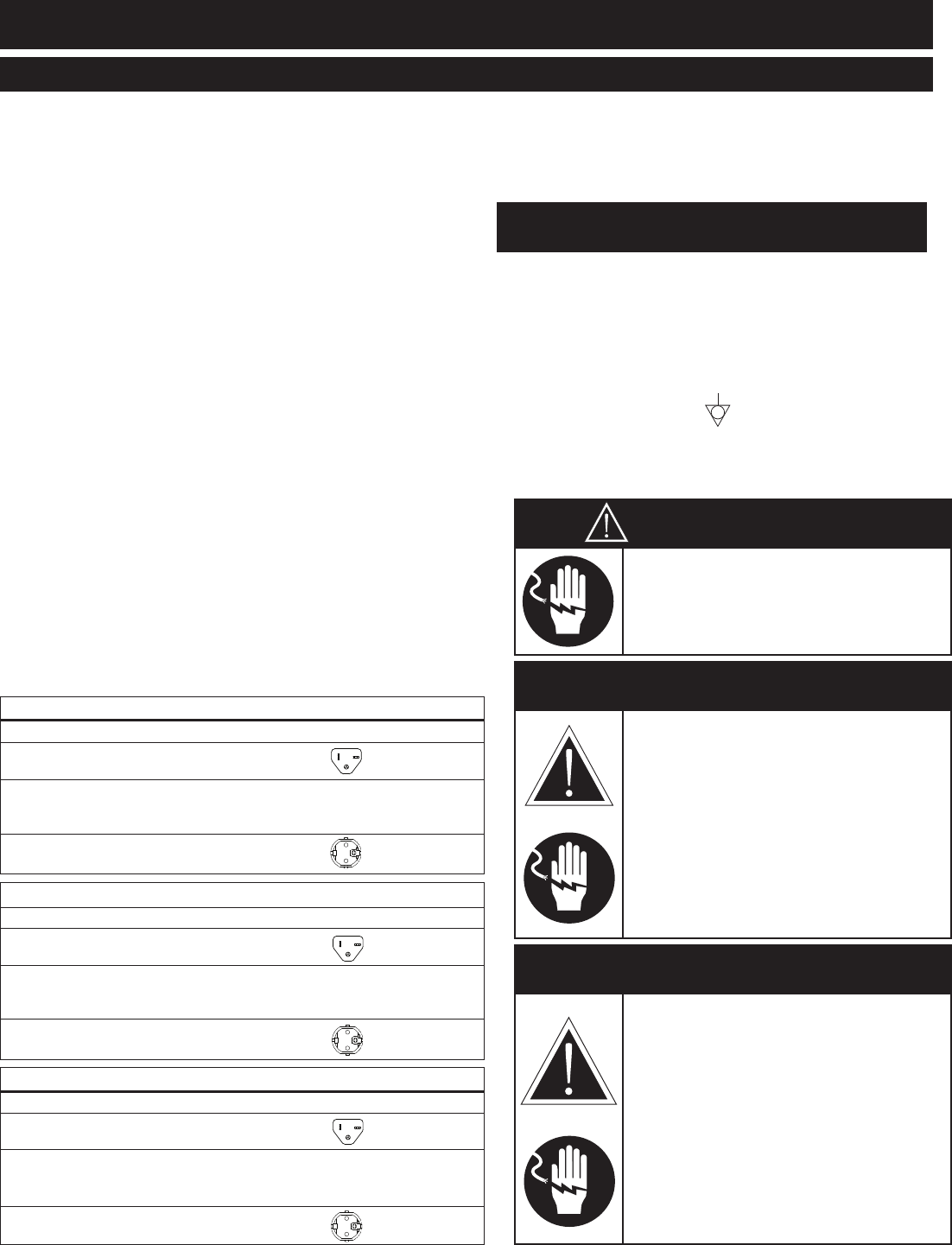

TH-II INSTALLATION/OPERATION/SERVICE MANUAL PG. 11
The appliance must be installed by a qualified
service technician. The oven must be properly
grounded in accordance with the National Electrical
Code and applicable local codes.
Plug the unit into a properly grounded receptacle
ONLY, positioning the unit so that the plug is easily
accessible in case of an emergency. Arcing will occur
when connecting or disconnecting the unit unless all
controls are in the “
OFF” position.
Proper receptacle or outlet configuration or
permanent wiring for this unit must be installed by a
licensed electrician in accordance with applicable
local electrical codes.
750- and 1000-TH-II models at 208-240V are dual
rated units with a conversion switch mounted under
an access cover on the rear of the oven, near the
power cord.
With the voltage conversion switch in the 200-208V
(UPPER) position, the oven will function properly
with a source voltage of between 200 and 208.
With the voltage conversion switch in the 220-240V
(LOWER) position, the unit will function properly
with a source voltage of between 220 and 240.
NOTE: ALL 208-240V units are shipped from the
factory with the voltage conversion switch
in the 220-240 position.
All 125V rated units will function properly with a
source voltage of between 100 and 125, 60 Hz.
The 125V rated units are provided with a cord and plug
[NEMA #5-20P]. Have a licensed electrician install the
proper outlet configuration as required for the unit in
accordance with applicable, local electrical codes. This
will assure a safe and trouble-free installation.
230V: To prevent an electrical shock hazard between
the appliance and other appliances or metal parts
in close vicinity, an equalization-bonding stud is
provided. An equalization bonding lead must be
connected to this stud and the other appliances /
metal parts to provide sufficient protection against
potential difference. The terminal is marked with
the following symbol.
NOTE: 230V appliances must be connected to
an electrical circuit that is protected by
an external GFCI outlet.
E L E C T R I C A L C O N N E C T I O N
I N S T A L L A T I O N
ELECTRICAL - 500-TH-II
VOLTAGE PHASE CYCLE/ HZ AMPS kW CORD & PLUG
120 1 60 16 1.92 NEMA 5-20P
20A - 125V PLUG
208-240 (AGCY) 1 60 12.5 3.0
NO CORD
at 208 1 60 10.6 2.2
& PLUG
at 240 1 60 12.2 2.93
230 1 50 12 2.75 CEE 7/7
220-230V
PLUG
ELECTRICAL - 750-TH-II
VOLTAGE PHASE CYCLE/ HZ AMPS kW CORD & PLUG
120 1 60 14.2 1.7 NEMA 5-20P
20A - 125V PLUG
208-240 (AGCY) 1 60 14.4 3.0
NO CORD
at 208 1 60 14.6 3.0
& PLUG
at 240 1 60 11.2 2.7
230 1 50 10.4 2.4 CEE 7/7
220-230V
PLUG
ELECTRICAL - 1000-TH-II, -II-SPLIT (EACH COMPARTMENT)
VOLTAGE PHASE CYCLE/ HZ AMPS kW CORD & PLUG
120 1 60 16.0 1.92 NEMA 5-20P
20A - 125V PLUG
208-240 (AGCY) 1 60 14.4 3.0
NO CORD
at 208 1 60 14.4 3.0
&
PLUG
at 240 1 60 11.1 2.7
230 1 50 10.4 2.4
CEE 7/7
220-230V
PLUG
D A N G E R
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
D A N G E R
To avoid electrical shock, this
appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence of
local codes, with the current edition
of the National Electrical Code
ANSI/NFPA No. 70. In Canada, all
electrical connections are to be
made in according with CSA C22.1,
Canadian Electrical Code Part 1 or
local codes.
D A N G E R
APPLIANCES WITH NO CORD
PROVIDED BY FACTORY MUST BE
EQUIPPED WITH A CORD OF
SUFFICIENT LENGTH TO PERMIT
THE APPLIANCE TO BE MOVED
FOR CLEANING.
ELECTRICAL CONNECTIO NS MUST
BE MADE BY A QUA LIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.
Ensure that the voltage conversion switch position
and the available power source match.
