SPECIFICATIONS
General: Unit shall be completely wired and includes blowers, filters,
heat exchange core and control panel.
Cabinet: 33-5/8" x 14-3/4" x 19" H (854 x 375 x 483 mm H) Constructed
of 20 gauge pre-painted galvanized steel (G60). Interior insulated
where surface is exposed to cold air. Access door is hinged and
latched. Disconnect switch engaged by door panel.
Heat/Energy Exchange: Plate type enthalpy cross-flow core.
Air Filter: Washable air filter in exhaust and supply air streams.
Blower: Two centrifugal type with direct drive PSC motor and rubber
isolated mount. Five speed motor controlled by autotransformer
(120VAC / 60Hz /1 ph).
Controls: Digital BASE MODULE operation. Illuminated display board,
optional remote devices connect to low voltage (12VAC) terminals.
Operating Controls (optional):
28 998 Sixty Minute Timer (2 wire)
28 860 AirCycler FR
TM
24 volt control for HVAC fan. (Does not
connect to ERV)
28 879 Digital Electronic Timer (3 wire)
28 881 Programmable Ventilation Control (PVC), includes program-
mable timer, dehumidistat, multi-speed controller.
28 882 Remote Dehumidistat, SPST, 20-80% RH, low voltage, wall
mount.
28 883 Dehumidistat Ventilation Control (DVC), remote dehumidistat
with ERV system On/Off switch. (3 wire).
29 023 7-Day Programmable Timer. 6 ON/OFF cycles/day, (2 wire)
Capacities: ALDES model ERV 200S
Air Quantity 214 cfm (125 L/s)
Ext. Static Pressure 0.1" wg (25 Pa)
Heat Recovery Efficiency (Sensible) 70% at 32°F (0°C)
Total Efficiency 55% at 95°F (35°C)
Acceptable Manufacturer:
American ALDES Ventilation Corporation
Warranty: 5 year warranty on heat exchanger core. Two (2) year parts
warranty.
Accessories:
22 026 Weatherhoods, two 6" (150 mm) provided with 1/4" (6 mm)
mesh screen, 12" sleeve, insulating duct collar, 2 required.
Weight:
63 lbs (28.7 kg) Shipping Weight: 87 lbs. (40 kg)
(includes pallet)
4537 NORTHGATE COURT
SARASOTA, FL 34234-2124, USA
Tel: 941 • 351- 3441
Fax: 941 • 351- 3442
www.americanaldes.com
e-mail:info@aldes-us.com
369R.ERV-5-08
PP
PP
P
ROJECTROJECT
ROJECTROJECT
ROJECT
DD
DD
D
ATEATE
ATEATE
ATE
SS
SS
S
UBMITTEDUBMITTED
UBMITTEDUBMITTED
UBMITTED
BYBY
BYBY
BY
CC
CC
C
ONTRACTORONTRACTOR
ONTRACTORONTRACTOR
ONTRACTOR
Sensible Effectiveness 67%
@ 127 cfm (60 L/s) CSA C439M
Sensible Efficiency 60%
@ 127 cfm (60 L/s) @ 32° F (0°C)
Total Efficiency
@ 127 cfm (60 L/s) @ 95°F (35°C) 55%
VAC @ 60 HZ 120
Watts / Low speed 70
Watts / High speed 182
Amp rating 1.4

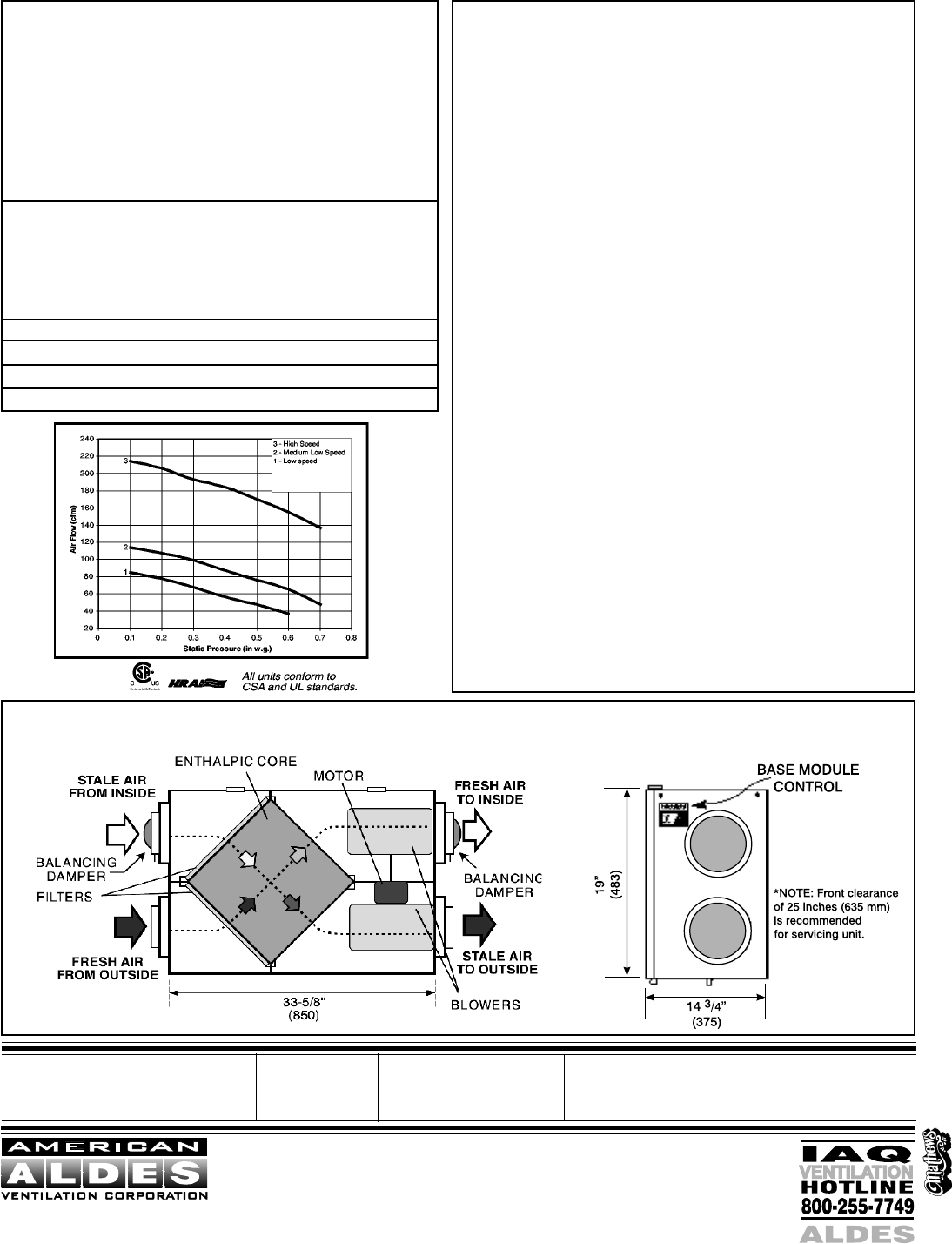

200S PERFORMANCE
Net supply airflow in CFM (L/s) against external static pressure
E.S.P. CFM L/s
@ .1" (25 Pa) 214 (101)
@ .2" (50 Pa) 206 (97)
@ .3" (75 Pa) 193 (91)
@ .4" (100 Pa) 184 (87)
@ .5" (125 Pa) 170 (80)
@ .6" (150 Pa) 155 (73)
@ .7" (175 Pa) 137 (65)
DIMENSIONS 200S inches (mm)
*All duct connections 6" (150mm)
