Avanti PIM25SS Ice Maker User Manual



10
Operating Instructions
Starting your Ice maker

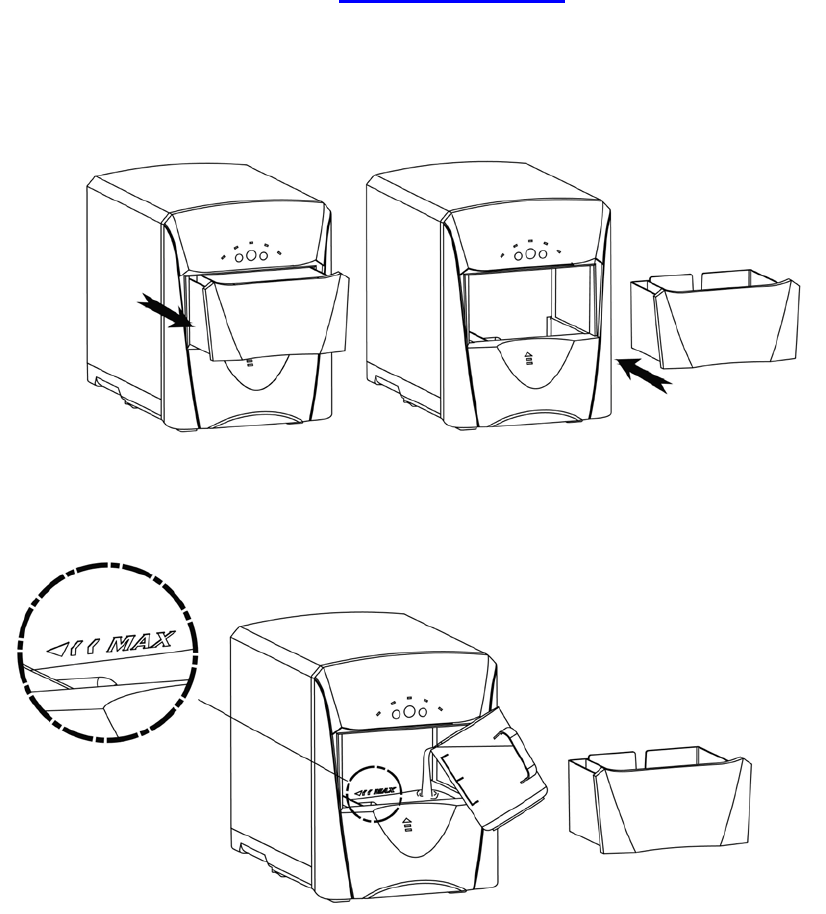

Pull the ice bin forward and remove.
Remove any dust or objects that may be in the water tank
Using the water fill cup included with your unit, fill the water tank up to the area marked “MAX”:
Select desired ice cube size by pressing the “ice size” selector (S, M and L).
The ice-maker will automatically check the water level in the reservoir periodically. The ice
maker will detect any shortage of water and will stop the ice-making cycle, the ADD WATER
indicator will be lit. Press the STOP button and fill the reservoir with water. Press the START
button to restart the ice-making cycle or wait 3 minutes after the ADD WATER indicator goes
out as the ice-maker will begin It’s normal operation cycle automatically.
When the ice cubes are collected and reach the bin sensor, the ice maker will stop operating
and the ICE FULL indicator will be lit.
There are three sizes of ice cubes available, therefore the larger the ice cube selected, the
longer the time it will take to complete the cycle. When the ambient temperature is lower than
15°C (59ºF), the small or medium ice cubes sizes are recommended to avoid ice cubes
clumping together.
For best performance, water temperature should be between 7°C (45ºF) and 35°C (95ºF)
and ambient between 15°C (59ºF) and 25°C (77ºF).
