BLODGETT OVEN COMPANY
www.blodgett.com • 1400 Toastmaster Drive, Elgin, IL USA 60120 • Phone: (847) 741-3300 • Fax: (847) 741-0015
MODEL MT1828E
SHORT FORM SPECIFICATIONS
Provide Blodgett conveyer model MT1828E conveyor oven. Unit shall be electrically heated and shall cook by means of forced, heated air impingment. Unit shall be (single/double/triple)
deck supported by (specify stand type from options list). Each deck shall be fully independent, of stainless steel construction, and fully insulated on all sides. Provide with electrically
heated baking compartment with two blowers to evenly distribute heat across baking zone. Conveyor belt shall be 18" (455mm) wide and constructed of stainless steel wire mesh; bak-
ing zone length shall be 28" (710mm). Side mounted control panel shall be solid state with 600°F (315.5°C)maximum thermostat and digital display of adjustable belt speed. Provide
start-up inspection service by a factory authorized service agent. Provide options and accessories as indicated.

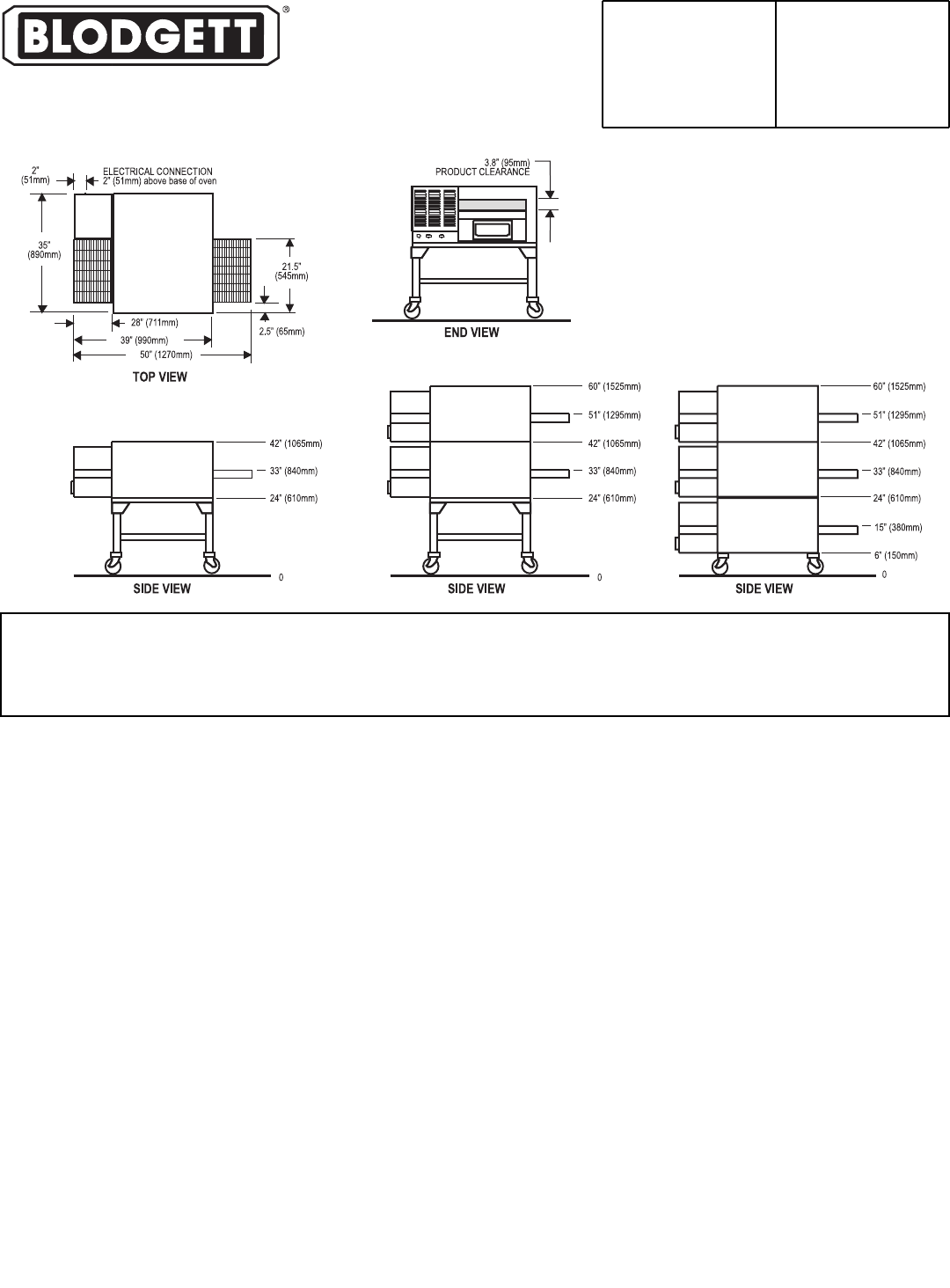

DIMENSIONS:
Floor space 35" (890mm) W x 50" (1270mm) L
Product clearance 3.75" (95mm)
Combustible wall clearance 0" (0mm)
Belt width 18" (455mm)
Baking zone length 28" (710mm)
POWER SUPPLY:
V.A.C. Hz Phase K.W. Amperes
L1 L2 L3 N
DOMESTIC
208 60 1 11 5252- -
240 60 1 11 4545- -
208 60 3 11 303030-
240 60 3 11 262626-
CE MODEL
230 50 1 11 45 - - 45
230/400 50 3N 11 15 15 15 -
This oven contains a mercury relay. DO NOT put mercury relay in trash. Relay must
be recycled or disposed of as hazardous waste.
MAXIMUM INPUT:
Single 11 KW
Double 22 KW
Triple 33 KW
MINIMUM ENTRY CLEARANCE:
Uncrated 18" (457mm)
Crated 25" (635mm)
SHIPPING INFORMATION:
Approx. Weight: Crated Uncrated
Single: 450 lbs. (204 kg) 320 lbs. (145 kg)
Double: 900 lbs. (407 kg) 640 lbs. (291 kg)
Triple: 1350 lbs. (611 kg) 960 lbs. (436 kg)
*Add: 140 lbs. (64 kg) when ordered with stand and frame.
Crate sizes:
58" L x 24" W x 54" H (1473 x 610 x 1372 mm)
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
APPROVAL/STAMP
P/N M9988 Rev J (5/07)
NOTE: Blodgett Oven, in accord with its policy to continually improve its products, reserves the right to change materials or specifications without
