BCX-14E STACKED ON A ZEPHAIRE-E PLUS
SHORT FORM SPECIFICATIONS
Provide Blodgett model BCX-14E electric combination-oven/steamer stacked on a model ZEPHAIRE E PLUS full-size electric convection oven.
BCX-14E Combi - Unit shall have the ability to cook with pressureless steam (212F), hot air, or combination of steam and hot air (with an operating range 140F to 500F),
vario-steaming (operating range 140F to 212F), low temperature cooking and holding, rethermalizing, cool down mode and our Exclusive Steam on Demand steam
injection system. Oven capacity to accept 7ea 18x26 bake pans or 14ea 12x20x2.5” full size steam table pans with 3-1/4” spacing. Front access service user inter-
face control panel and service diagnosis system. Unit shall be constructed with a fully welded stainless steel frame. Cooking chamber shall be constructed with 304
series with bright-annealed stainless steel finish and coved corners. Integrated retractable wash down hose to include front water shut off valve. Oven cavity shall be
open to the atmosphere with a thermostatically controlled quench box with a flow rate of less than 8 gallons per hour (total water consumption not to exceed 15 gal-
lons per hour). Unit shall include a four speed, bi-directional fan with vent switch to control humidity in the cooking chamber. Dual pane thermal glass window with 180
degree door swing, two-step safety door-latch with adjustable door hinges, door mounted drip pan. Unit to include a detachable 6-1/2” core temperature probe and
four halogen lights. Supply with exclusive time to delime indicator with adjustable settings of 30, 60 or 90 hours of run time, semi-automatic deliming system. Where
applicable, quantities in this spec are doubled for stacked units. A start-up inspection service will be performed by our factory-authorized agent at no cost to the oper-
ator. One-year parts and labor warranty, standard.
Zephaire E Plus - Shall have porcelainized steel liner and shall accept five 18" x 26" standard full-size bake pans in left-to-right or front-to-back positions. Doors shall have dual pane
thermal glass windows with single porcelain handle and simultaneous operation. Unit shall be electrically heated with three tubular heaters. Air in baking chamber distributed by single
inlet blower wheel powered by a two-speed, 1/3 HP motor with thermal overload protection. Each chamber shall be fitted with five chrome-plated removable racks. Control panel shall
be recessed with Cook/Cool Down mode selector, solid state manual infinite thermostat (200 - 500°F), and 60-minute timer.
Provide options and accessories as indicated.
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of
components without prior notice
APPROVAL/STAMP
P/N 50456 Rev B (4/08)

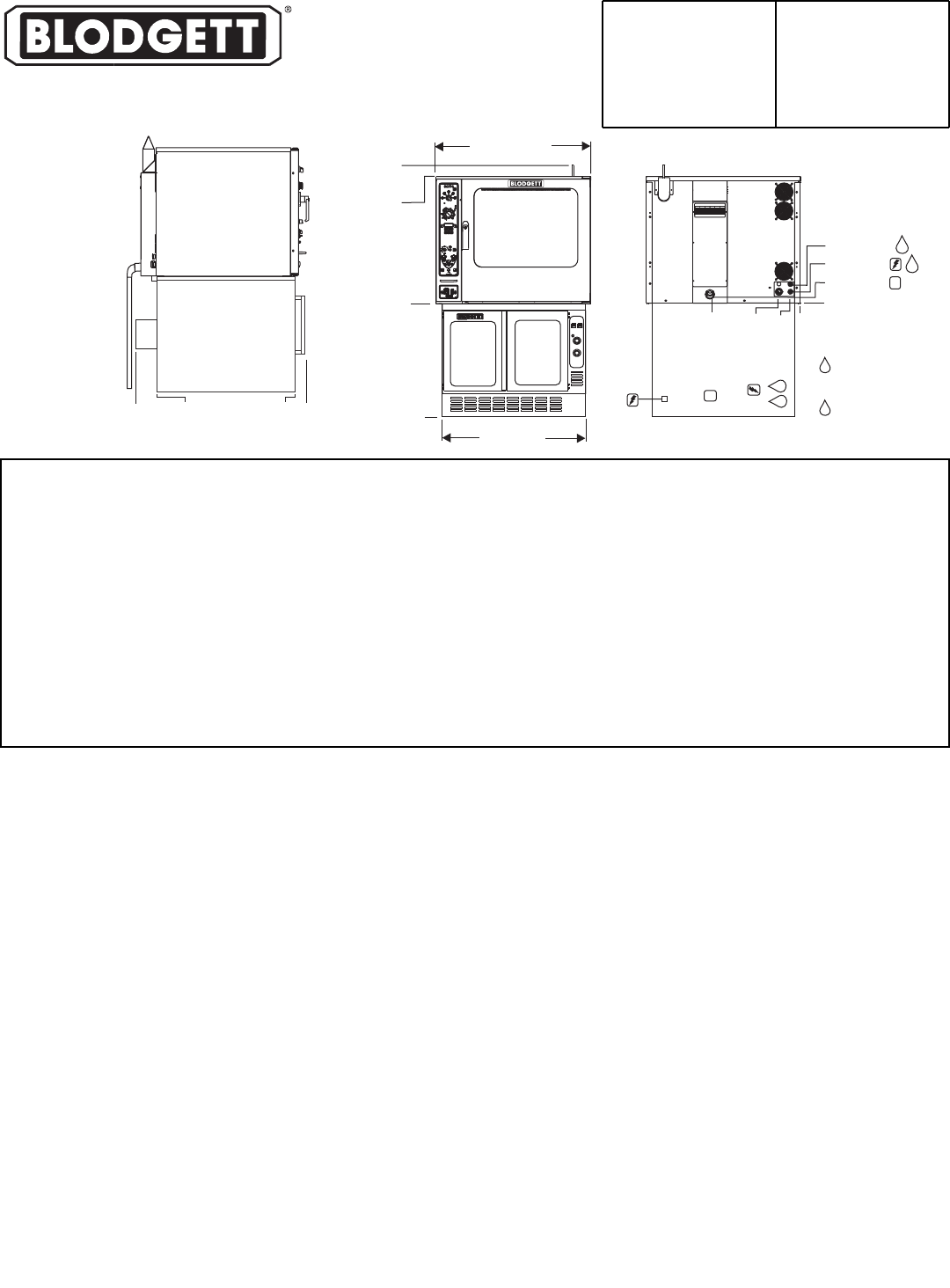

DIMENSIONS ARE
IN INCHES (MM)
UTILITY CONNECTIONS
0 (0)
2.91 (74)
5.65 (144)
1.56 (40)
0(0)
3.34 (85)
5.84 (148)
23.59 (599)
F
U
D
D
F
U
F
U
Unfiltered Water -
Condensate, cold only
Filtered Water -
Boiler, hot or cold
67.99” (1727)
65 (165)
41.19” (1021)
0” (0)
32” (813)
38.25” (972)
0(0)
3 (76)
39.88
(1013)
46.87*
(1190)
Customer
Supplied
Drain
* 76.06 (1932)
overall depth with
combi door open 90°
POWER SUPPLY - BCX-14E:
208VAC 19.0 kW 3 phase (53 amp)
240VAC 19.0 kW 3 phase (46 amp)
480VAC 19.0 kW 3 phase (23 amp)
415VAC 19.0 kW 3 phase (26.5 amp) 5 wire
WATER SUPPLY (BCX-14E only):
TDS: < 100 ppm Hardness: 80-120 ppm pH: 7.0 - 8.0
Chlorides: < 30 ppm 30(min)-50(max) PSI
140°F (60°C) avg. drain temp.
2" drain connection 3/4" garden hose cold water
SHIPPING INFORMATION:
Approximate Weight:
BCX-14E 615 lbs. (279 kg)
Zephaire E Plus 545 lbs. (247 kg)
Crate sizes:
BCX-14E 44.5" H x 42" W x 54.5" D (1130 x 1067 x 1384mm)
Zephaire E Plus 37-1/2" (952mm) x 43-1/2" (1105mm) x 52" (1321mm)
DIMENSIONS:
Product Clearance: 6" (rear), 1” (right side), 4” (left side) from
combustible and non-combustible construction.
12” on left side if not on casters.
Additional Height:
6" adjustable legs 6-7/8" - 8" (174.6-203.2mm)
MINIMUM ENTRY CLEARANCE:
BCX-14E Zephaire E Plus
Uncrated 33" (838mm) 32-1/16" (814mm)
Crated 42" (1066.8mm) 37-1/2" (953mm)
POWER SUPPLY - ZEPHAIRE E PLUS
208 VAC 60 Hz. 1 phase 11KW 51/0/51 Amperes,
208 VAC 60 Hz. 3 phase 11KW 31/29/29 Amperes,
220/240 VAC 60 Hz. 1 phase 11KW 44/0/44 Amperes,
220/240 VAC 60 Hz. 3 phase 11KW 26/24/24 Amperes,
440 VAC 60 Hz. 3 phase 11KW 15/14/14 Amperes,
480 VAC 60 Hz. 3 phase 11KW 14/13/13 Amperes,
1/3 HP, 2 speed motor, 1140 & 1725 rpm (60 Hz)
(50 Hz. ovens for 400/230, 380Y/220 VAC or 415Y/240 VAC (4 wire) 3 phase)
This oven contains a mercury relay. DO NOT put mercury relay in trash. Relay must
be recycled or disposed of as hazardous waste.
