Dimensions & Specifications
The Mark of Quality in Beverage Equipment Worldwide

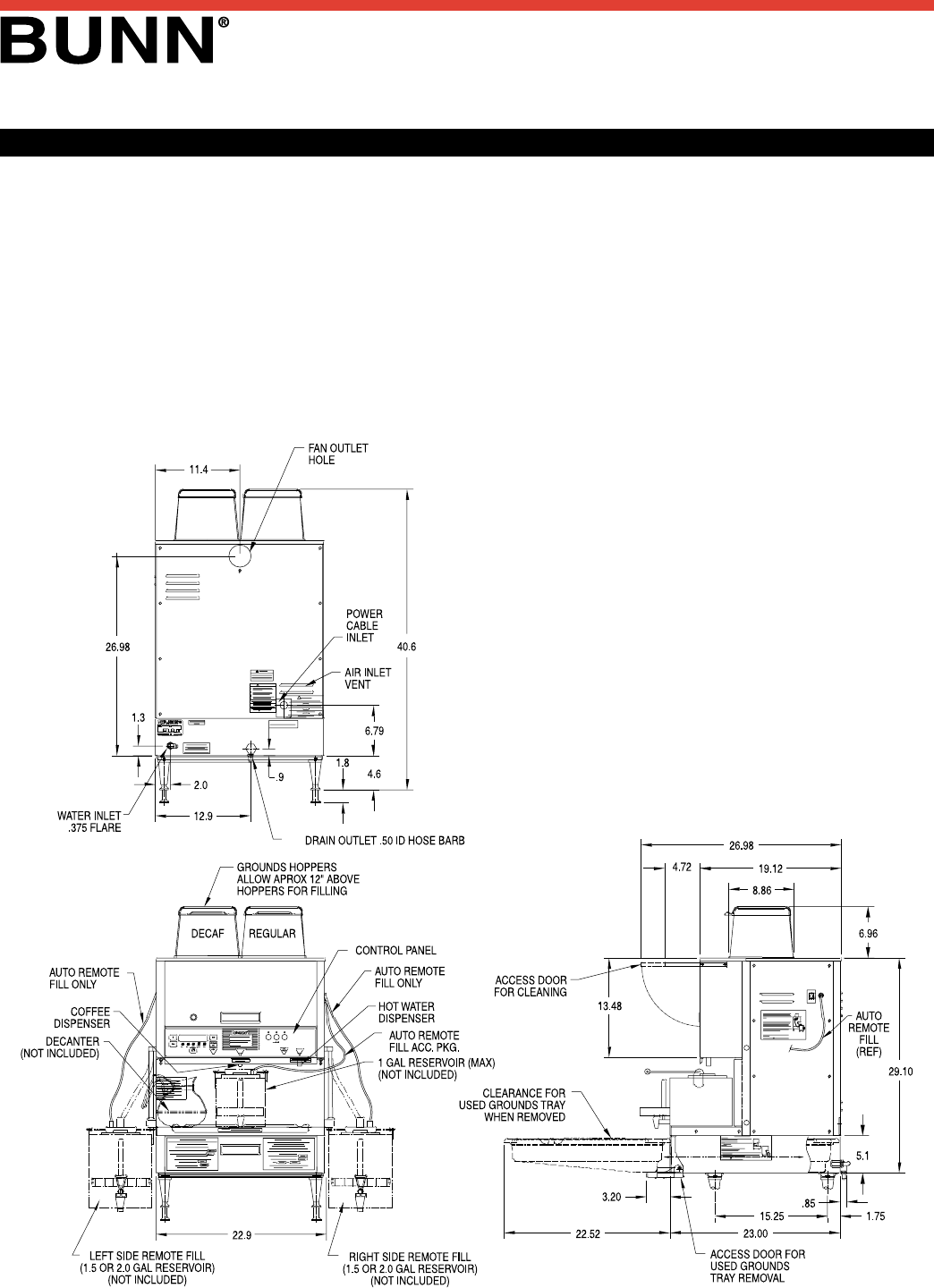

All dimensions shown in inches.
Model Product # Volts Amps Tank Heater Total Brewing Cu. Ft. Shipping
Watts Watts Capacity Weight
BCM2 23350.0000 120/240V 30 6700 7200 8.0 gal./hr. 42.6 257 lbs. (116.6 kg)
BCM2 23350.0001 120/208V 30 5700 7200 8.0 gal./hr. 42.6 257 lbs. (116.6 kg)
BCM2* 23350.0002 120/240V 30 6700 7200 8.0 gal./hr. 42.6 257 lbs. (116.6 kg)
BCM2* 23350.0003 120/208V 30 5700 6240 8.0 gal./hr. 42.6 257 lbs. (116.6 kg)
*Auto refill on both sides
Electrical: All are 3-wire, single phase, 60Hz.
Plumbing:
Brewers are supplied with a BUNN EasyClear
®
water filter model 120-CP (product no. 30045.0000). The filter and brewer must be
connected to a cold water system with operating pressure between 20 and 90 psi (138-621 kPa) from a
1
⁄
2
" (13 mm) or larger water supply line.
Install a regulator in the line when pressure is greater than 90 psi (621 kPa) to reduce it to 50 psi (345 kPa). The water inlet fitting is
3
⁄
8
" (10
mm) OD male flare.
Drain:
The brewer has a
1
⁄
2
" (13 mm) hose barb fitting
which must be connected to an unrestricted drain.
Physical:
This brewer is for use on a sturdy counter at
least 26" (66 cm) deep, 23" (58 cm) wide, with at
least 50" (127 cm) above the counter to allow
adequate space for filling the hoppers. The brewer
weighs approximately 220 lbs (99 kg) with both
ground coffee hoppers, water tank, and waste
bin full.
