Page 8

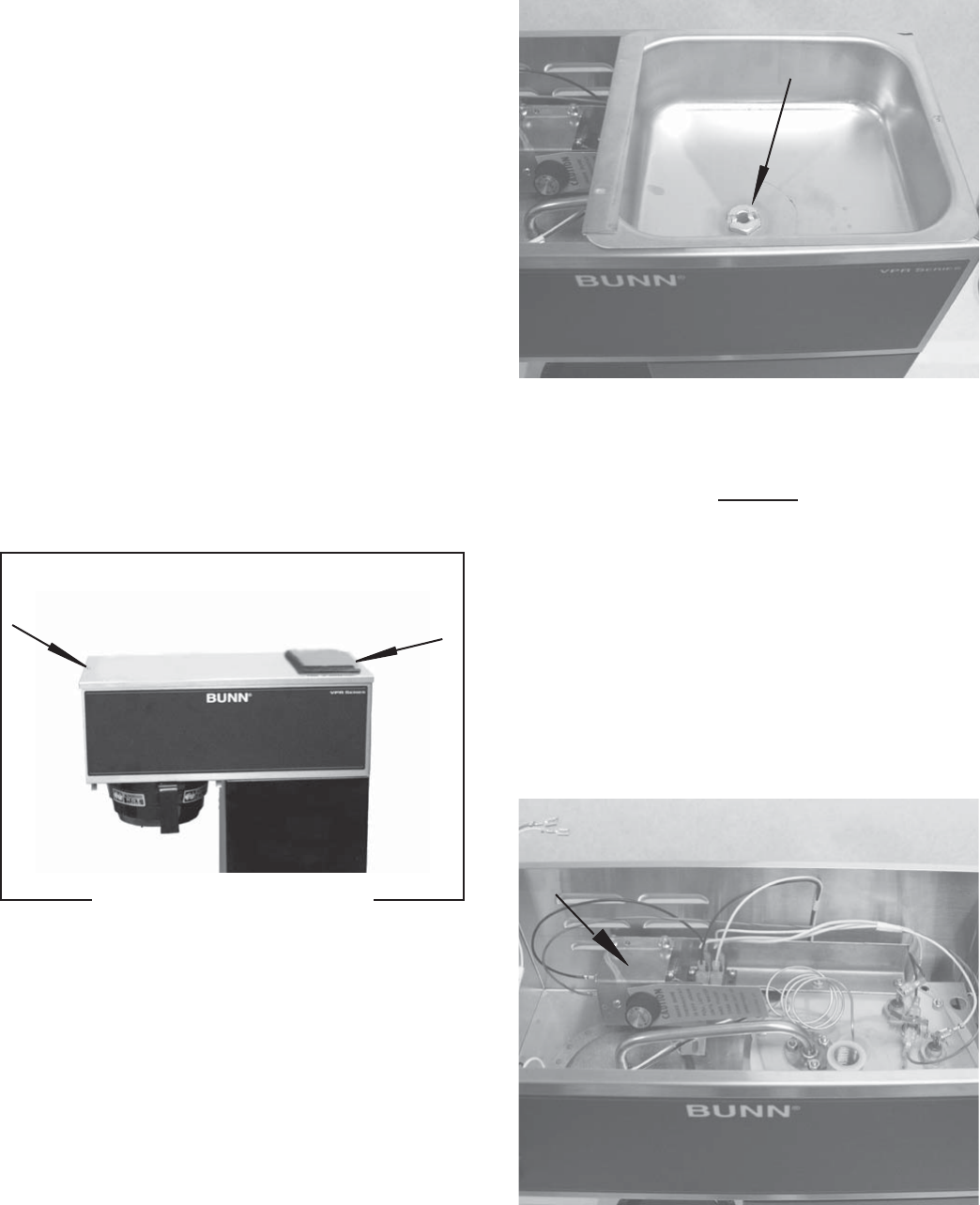

FIG. 3 CONTROL THERMOSTAT
CONTROL THERMOSTAT
SERVICE
This section provides procedures for testing
and replacing various major components used in
this brewer should service become necessary. Refer
to Troubleshooting for assistance in determining the
cause of any problem.
WARNING - Inspection, testing, and repair of electri-
cal equipment should be performed only by qualifi ed
service personnel. The brewer should be disconnected
from the power source when servicing, except when
electrical tests are required and the test procedure
specifi cally states to plug-in the brewer.
COMPONENT ACCESS
WARNING - Disconnect the brewer from the power
source before the removal of any panel or the replace-
ment of any component.
All components are accessible by the removal of
the top cover and fi ll basin.
The top cover is attached with two #4-40
screws.
Contents
Control Thermostat ................................................9
Limit Thermostat ..................................................10
Tank Heater ......................................................... 10
Wiring Diagrams ................................................. 12
P2412-1
The tank inlet fi tting secures the fi ll basin to the
tank lid.
P2413
FIG. 2 FILL BASIN REMOVAL
FIG. 1 COMPONENT ACCESS
P2414
39064 042806
