Right - 6”, Left - 6”, Rear - 6”
(12” on control side if adjoining
wall or equipment is over 30”
high for service access)
For use in non-
combustible locations.
Contact factory for
variances to clearances.
The Floor Drain must be
located outside the con-
fines of the equipment.
1 1/2” IPS common drain.
Do not connect other units
to this drain.
Do not use PVC pipe for
drain.

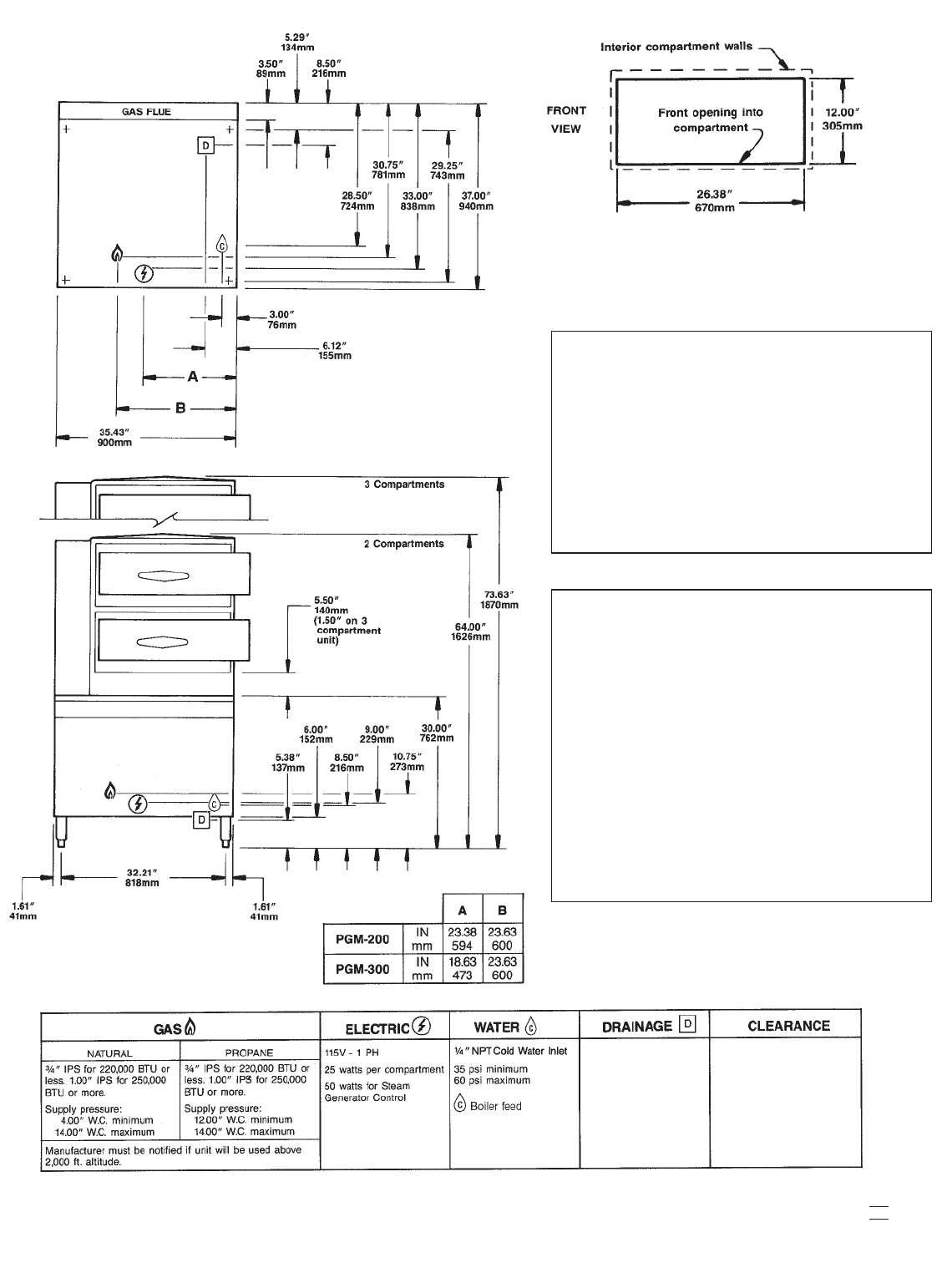

(NOT TO SCALE)
SECT. VI PAGE 4
1007
Litho in U.S.A.
•
Each compartment has capacity for:
Eight, 12˝ x 20˝ x 2
1
⁄2˝ Cafeteria Pans or
Six, 12˝ x 20˝ x 4˝ Cafeteria Pans or
Four, 12˝ x 20˝ x 6˝ Cafeteria Pans or
Four, 18˝ x 26˝ Bun Pans
•
Many regional, state and local codes exist and it is
the responsibility of the owner and installer to com-
ply with those codes.
•
Cleveland Range equipment is built to comply with
applicable standards for manufacturers. Included
among those approval agencies are: ASME/N.Bd.,
NSF, CSA (AGA, CGA).
WATER QUALITY REQUIREMENT
The recommended minimum water quality standards
whether untreated or pre-treated, based upon 10 hours
of use per day, and a Daily Blowdown, are as follows:
TOTAL DISSOLVED SOLIDS less than 60 parts per million
TOTAL ALKALINITY less than 20 parts per million
SILICA less than 13 parts per million
pH FACTOR greater than 7.5
CHLORINE less than 30 parts per million
Consult a local water treatment specialist for an on site
water analysis for recommendations concerning steam
generator feed water treatment (if required), in order to
remove or reduce harmful concentrations of minerals.
The use of highly mineralized water will mean that more
frequent servicing of the steam generator will be
necessary. The fact that a water supply is potable is not
proof that it will be suitable for the generator.
NOTES:
**DO NOT CONNECT TO GFI OUTLET. CLEVELAND RANGE RECOMMENDS GAS FIRED 120 VOLT STEAMERS BE HARD WIRED DIRECTLY TO ELECTRICAL SYSTEM.
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are ASME/N. Bd, UL, NSF and CSA (AGA, CGA).
5.0 Amps
** Do not connect to GFI
outlet. See note below.
