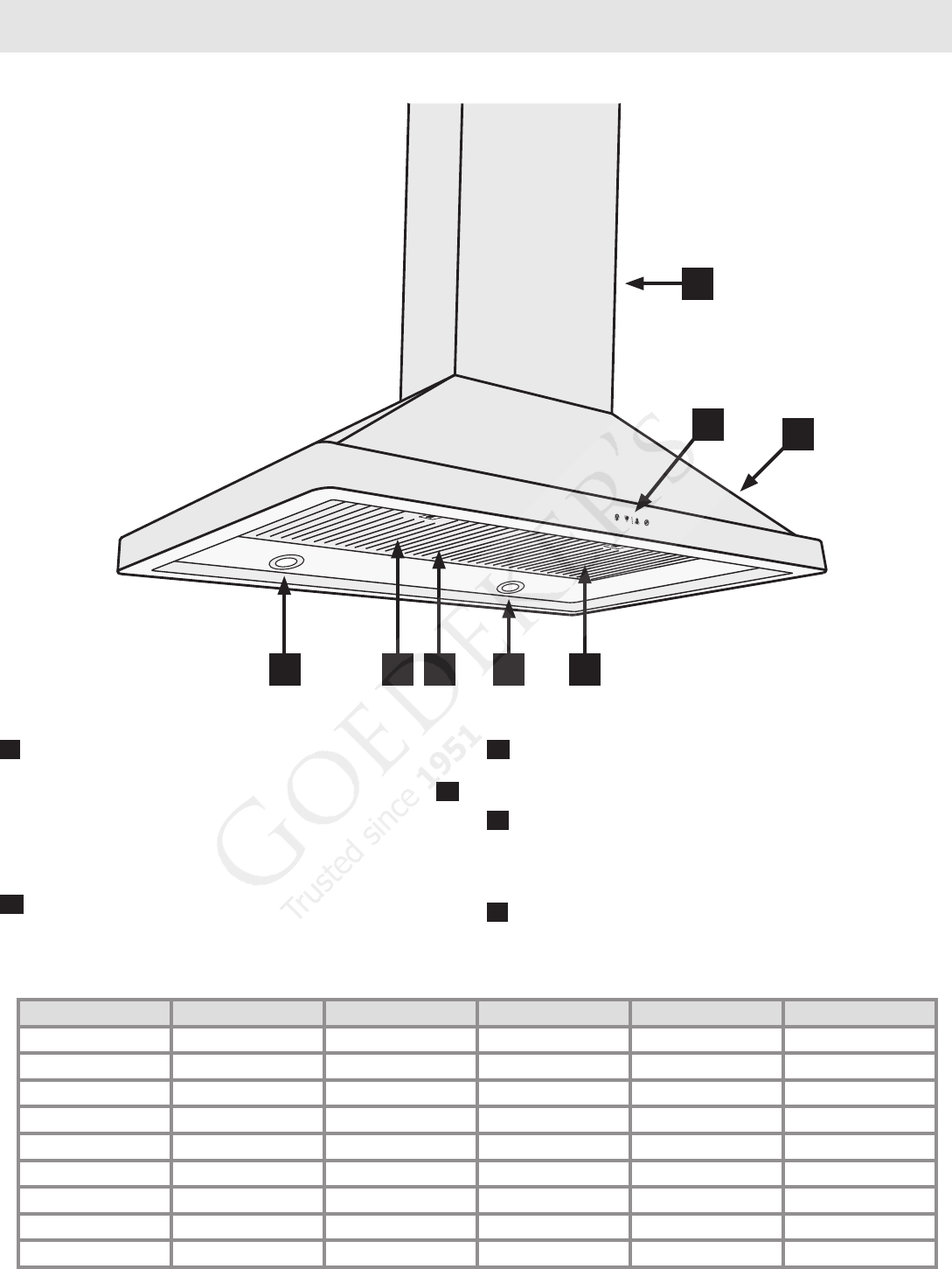

Parts of the Range Hood
A HOOD - The hood directs heat and smoke into the
blower system located inside the unit. The blower system
forces heat and smoke into the duct inside the chimney B
which vents to the outside. The filter, the lights and main
power switch are located on the bottom of the hood. The
blower system on some models, consists of more than one
blower. See the table below.
C CONTROL PANEL - Use the keys on the control panel
to control your hood’s various features.
D FILTER - Prevents grease and grime from getting into
the blower(s). The number of filters depends on the model.
See the table below.
E MAIN POWER SWITCH - Located behind the filter, on
the bottom of the hood, on the opposite side of the control
panel. Controls power to the control panel, lights and
blower(s).
F LIGHTS - 20W halogen lights. The number of lights and
location depends on the model. See the table below.
MODEL HOOD TYPE HOOD SIZE BLOWERS FILTERS LIGHTS
DHW301 WALL MOUNT 30” 1 1 2
DHW361 WALL MOUNT 36” 1 1 2
DHW421 WALL MOUNT 42” 1 1 3
DHW482 WALL MOUNT 48” 2 2 4
DHI361 ISLAND 36” 1 1 4
DHI421 ISLAND 42” 1 1 4
DHI482 ISLAND 48” 2 2 4
DHI542 ISLAND 54” 2 2 6
DHI602 ISLAND 60” 2 3 6
C
F D F D
A
E
B
HOOD FEATURES
