PLANNING
GUIDE
RR30NS, RR30NFS, RR30NIS, RR30NIFS
Renaissance
®
30” Wide
Electric Inductive Range
Document # PG05-009
Revised 05/23/13 Page 1/5
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
All tolerances ±1/16” (±1.6 mm) unless otherwise noted.

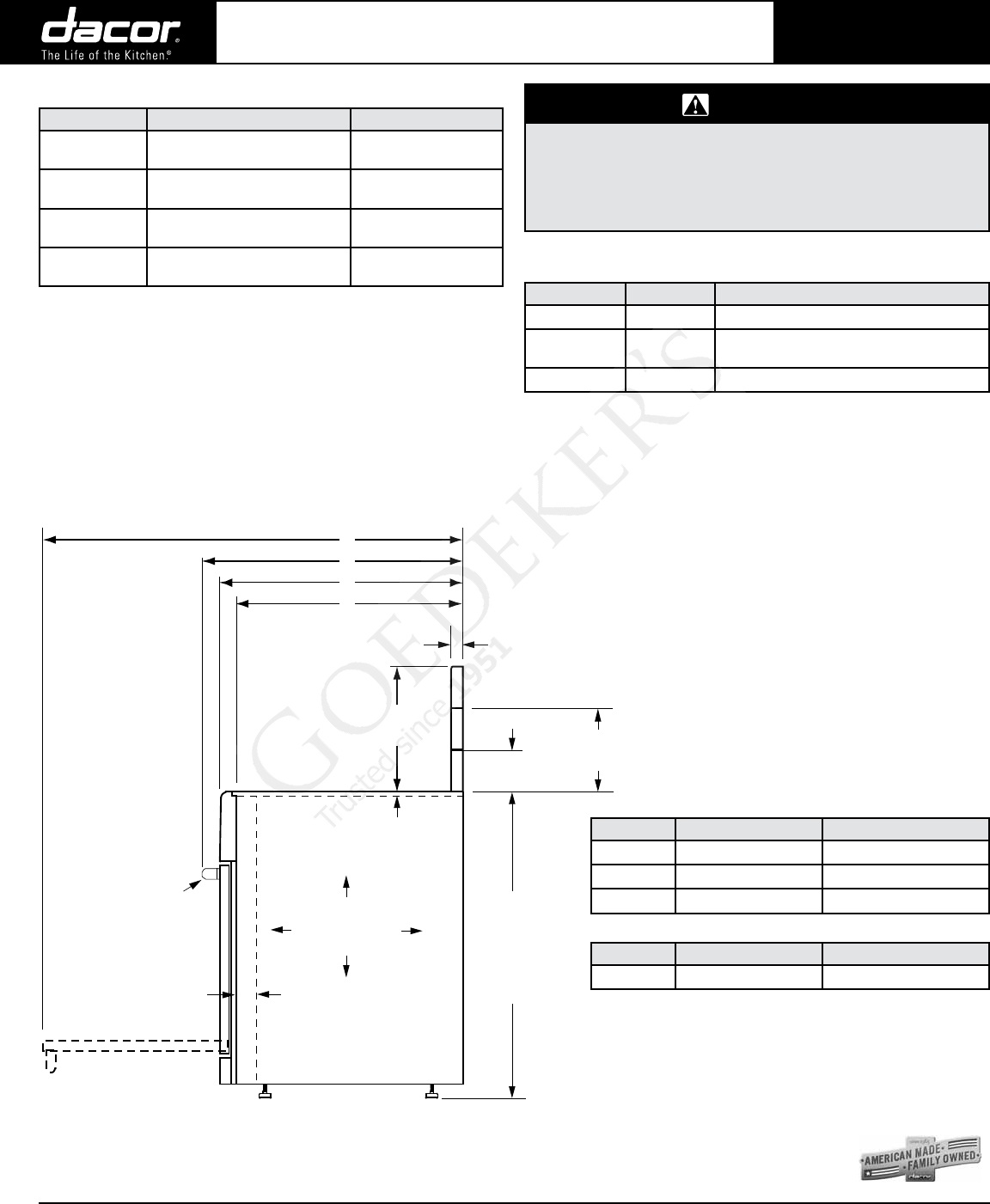

OVERALL DEPTH DIMENSIONS - SIDE VIEW
Product Dimensions
Available Backguards
Part Number Description Compatibility
ADRB30E03 3 Inch Optional on all models
ADRB30E06 6 Inch
Standard on models RR30NS, RR30NFS
Optional on models RR30NIS, RR30NIFS
ADRB30E09 9 Inch Optional on all models
Models RR30NIS and RR30NIFS come equipped from the factory with
flat stainless trim piece in place of a backguard. A backguard may be
purchased as an optional accessory. Add an additional 1/16 inch to depth
dimensions below when installing a backguard on models RR30NIS and
RR30NIFS.
The trim on models RR30NS and RR30NFS are not compatible
with a raised vent.
Models RR30NIS and RR30NIFS are compatible with Dacor
raised vent models ERV30 and ERV3015. Use only these
specified raised vent models.
Dimension RR30NS, RR30NFS RR30NIS, RR30NIFS
A 46 1/4” (117.5 cm) 46 1/16” (117.0 cm)
C 25 1/2” (64.8 cm) 25 5/16” (64.3 cm)
D 23 3/8” (59.4 cm) 23 3/16” (58.9 cm)
Dimension RR30NS RR30NIS
B 27 7/8” (70.8 cm) 27 11/16” (70.3 cm)
Model Versions
Model Configuration Handle Type
RR30NS[-C]*
Freestanding,
(full size side panels)
Mounted on
outside of door
RR30NFS[-C]*
Freestanding,
(full size side panels)
Flush handle,
integrated in door
RR30NIS[-C]*
Built-in/Slide-in
(3 1/4” removable side panels)
Mounted on
outside of door
RR30NIFS[-C]*
Built-in/Slide-in
(3 1/4” removable side panels)
Mounted on
outside of door
* Order -C option for corded wiring configuration, see page 3/5 for details.
1” (2.5 cm)
Front of open door
Front of handle
Front panel
Rear of front panel
Backguard thickness
3” (7.6 cm)
backguard*
External handle
shown, some models
have integral handle
(see inside cover)
6” (15.2 cm)
backguard*
*
See table for compatibility
Product width:
29 15/16” (76.0 cm)
35
(88.9 cm)
to
37
(94.0 cm)
9” (22.9 cm)
backguard*
A
B
C
D
RR30NI[F]S:
3/8” (9.5 mm)
thick top trim
RR30N[F]S:
full stainless
steel side panels
RR30NI[F]S:
3” (7.6 cm)
partial stainless
steel side panels
(removable)
