All specications subject to change without notice.
Phone: (800) 793-0093www.dacor.com
PLANNING
GUIDE
RR30NS, RR30NFS, RR30NIS, RR30NIFS
Renaissance
30” Wide
Electric Inductive Range
Document # PG05-009
Revised 05/23/13 Page 5/5
All tolerances +1/16” (+1.6 mm), -0 unless otherwise noted.
* To create a “built-in look” on the front of the cabinet, this
dimension may be changed to 29 1/4” (74.3 cm), with the
width at the notches remaining 30 1/16”. This configuration
is only for models RR30NIS and RR30NIFS with side
panels behind door removed.
Countertop height: 34 3/4” (88.3 cm) min.
36 7/8” (93.7 cm) max.
Countertop thickness: 1 5/8” (4.1 cm) max.
■ Trim kit PN ATKR30SR is required for proper installation of a raised
vent with this range.
■ The self-rimming installation of the RR30NI[F]S range and ERV30[15]
raised vent create a “built-in” look where the range trim overlaps
the countertop on both sides and the raised vent trim overlaps the
countertop in back. The ATKR30SR trim kit, installed on the back of
the range, will cover the front of the raised vent chassis.
■ IMPORTANT: When installing the range in this configuration,
ventilation must be provided to allow for cooling of the ranges
internal components. See diagram, left.
■ Observe all vertical cabinet clearances on page 3/5.
■ A self-rimming countertop configuration is required for raised vent
installation. On installations with a raised vent, when sliding the
range into position, it will stop when the rear of the control panel or
side panels contact the notches toward the front of the countertop.
TOP VIEW - DOWNDRAFT ERV30[15] WITH
SLIDE-IN, SELF-RIMMING INSTALLATION,
3” SIDE PANELS REMOVED
TOP VIEW - DOWNDRAFT ERV30[15] WITH
SLIDE-IN, SELF-RIMMING INSTALLATION,
3” SIDE PANELS INSTALLED

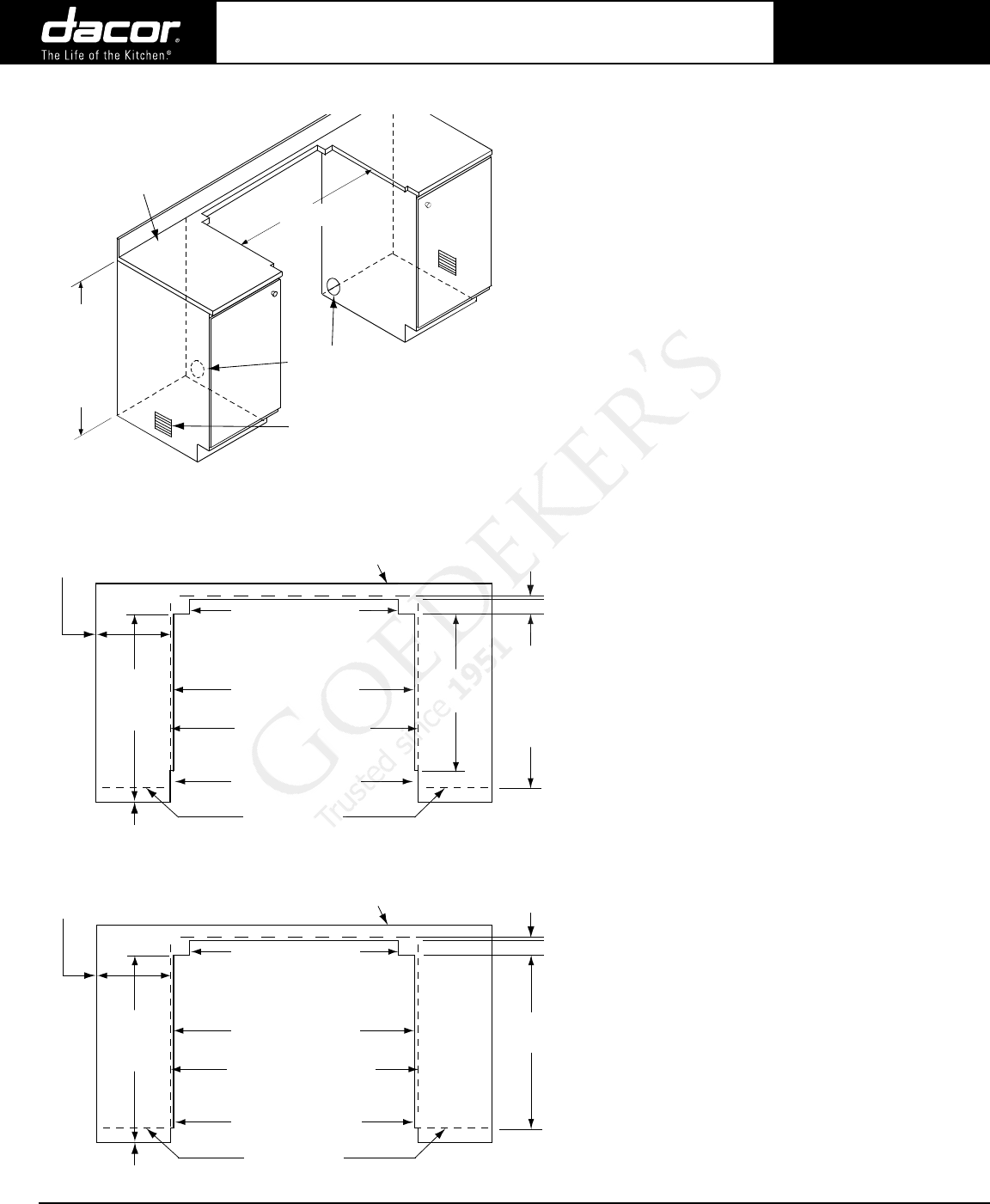

Cabinet Cutouts for Self-Rimming Installation (Models RR30NIS and RR30NIFS Only)
Cut 3” dia. (7.6 cm) holes
at back bottom of cabinet
for ventilation.
Provide ventilation through
cabient both sides,
7 square inches min.
Location may vary.
34 3/4”
(88.3 cm)
to
36 7/8”
(93.7 cm)
(see diagrams)
Countertop
1 5/8 (41.1 cm)
max. thickness
Rear wall or
countertop edge
countertop opening
29 1/4” (74.3 cm)
raised vent opening
27 1/2” (69.9 cm)
30 1/16” (76.2 cm)
cabinet opening
below countertop
below countertop
Cabinet face
Notch countertop
to width of cabinets
3/8” min. (1.0 cm)
countertop overhang
1” min. (2.6 cm)
to any combustibles
above counter both sides
20 3/8”
(51.8 cm)
to
23 3/8”
(59.4 cm)
20 3/8”
(51.8 cm)
2 5/8” (6.7 cm)
25”
(63.5 cm)
max.
Countertop front
Rear wall or
countertop edge
countertop opening
29 1/4” (74.3 cm)
raised vent opening
27 1/2” (69.9 cm)
30 1/16” (76.2 cm)*
cabinet opening
below countertop
below countertop
Cabinet face
Notch countertop
to width of cabinets
3/8” min. (1.0 cm)
countertop overhang
1” min. (2.6 cm)
to any combustibles
above counter both sides
23 3/8”
(59.4 cm)
2 5/8” (6.7 cm)
25”
(63.5 cm)
max.
Countertop front
