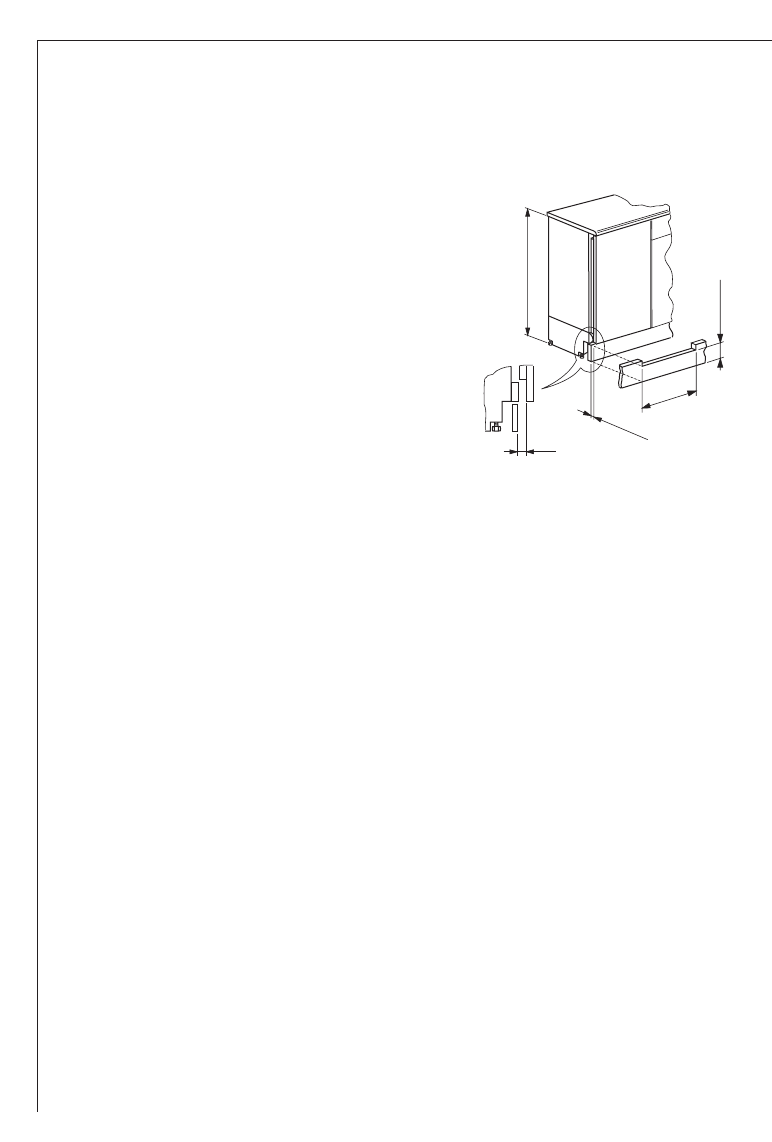

Fitting the plinth
Important!
For the efficient operation of the appliance, it is important that the
original ventilation grid is used.
• For an opening height dimension
A=820 mm and a plinth height
dimension a=100 mm, the plinth may
be fitted without adjustments. The
same applies to an opening height
dimension B=870 mm and a plinth
height dimension b=150 mm.
• For plinth heights greater than
a=100 mm, b=150 mm, a cut should
be made in the plinth, 580 mm wide,
in the centre of the appliance posi-
tion, leaving a remaining height of
a=100 mm, b=150 mm.
• Attach plinth to the kitchen units.
Important!
The plinth must be positioned at a minimum distance of 25 mm from
the door.
Please check whether, after installing your appliance and especially
after reversing the door, the door seal seals right round. A badly fitting
door seal may lead to heavy frosting and result in a higher power con-
sumption (see also “What to do if ...”).
008
580
a = 100
b = 150
25 - 80
A = 820
B = 870
25
Power supply
A correctly installed, earthed socket is required for the electrical sup-
ply. The supply must have a fuse rating of at least 10 Amps. If the
socket is not accessible once the appliance is built in, the electrical
installation must include suitable means of isolating the appliance
from the mains (e.g. a fused spur).
Before initial start-up, refer to the appliance rating plate to ascertain
if supply voltage and current values correspond with those of the
mains at the installation location.
e.g.: AC 220 ... 240 V 50 Hz or
220 ... 240 V ~50 Hz
(i.e. 220 to 240 volts alternating current, 50 Hertz)
The rating plate is inside the appliance on the right.
☞
