82

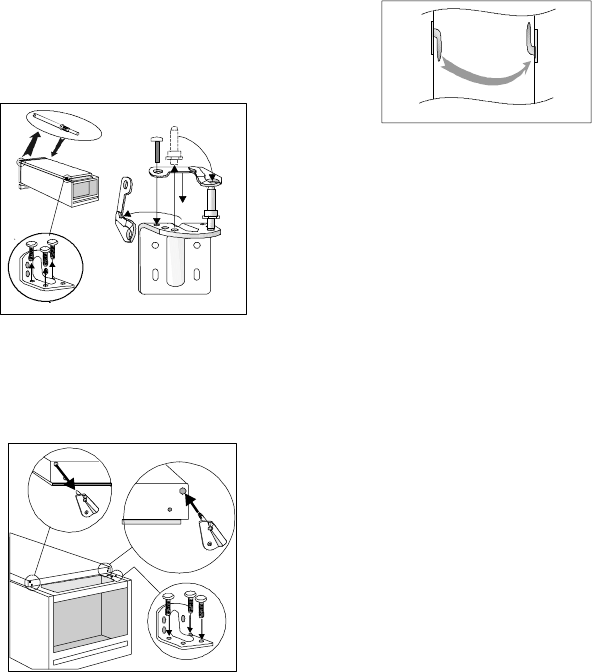

4. On the upper part of the cabinet.
Put the hinge pin on the other side.
5. On the lower part of the cabinet.
a. Unscrew the hinge.
b. Remove the door-closing fittings
from the hinge and put the hinge pin
on the other side. Then attach the
supplied door-closing fitting.
4
5a
5b
6. a. Remove the door-closing fitting
from the bottom of the door.
b. Then secure the supplied
door-closing fitting on the other side.
c. Secure the lower hinge.
a
b
c
6
Removeanyplayinthedoorby
adjusting the height of the lower hinge
with the supplied spanner. Secure with
the lock-nut.
Raise the cabinet and replace the
ventilation grille.
7. To transfer the handle.
Unscrew the screws. Fit the handle
onto the opposite side by turning it
one half circle. Press the supplied
plastic plugs into the holes to which
the handle was previously fitted.
7
Put the cabinet in position. Check that
the appliance is level. See the section
"Positioning the cabinet".
Electrical connection
Connect the cabinet to a grounded
electrical outlet.
Voltage: 230 V.
Fuse: 10 A.
Refer to the rating plate on the left
inside the cabinet.
