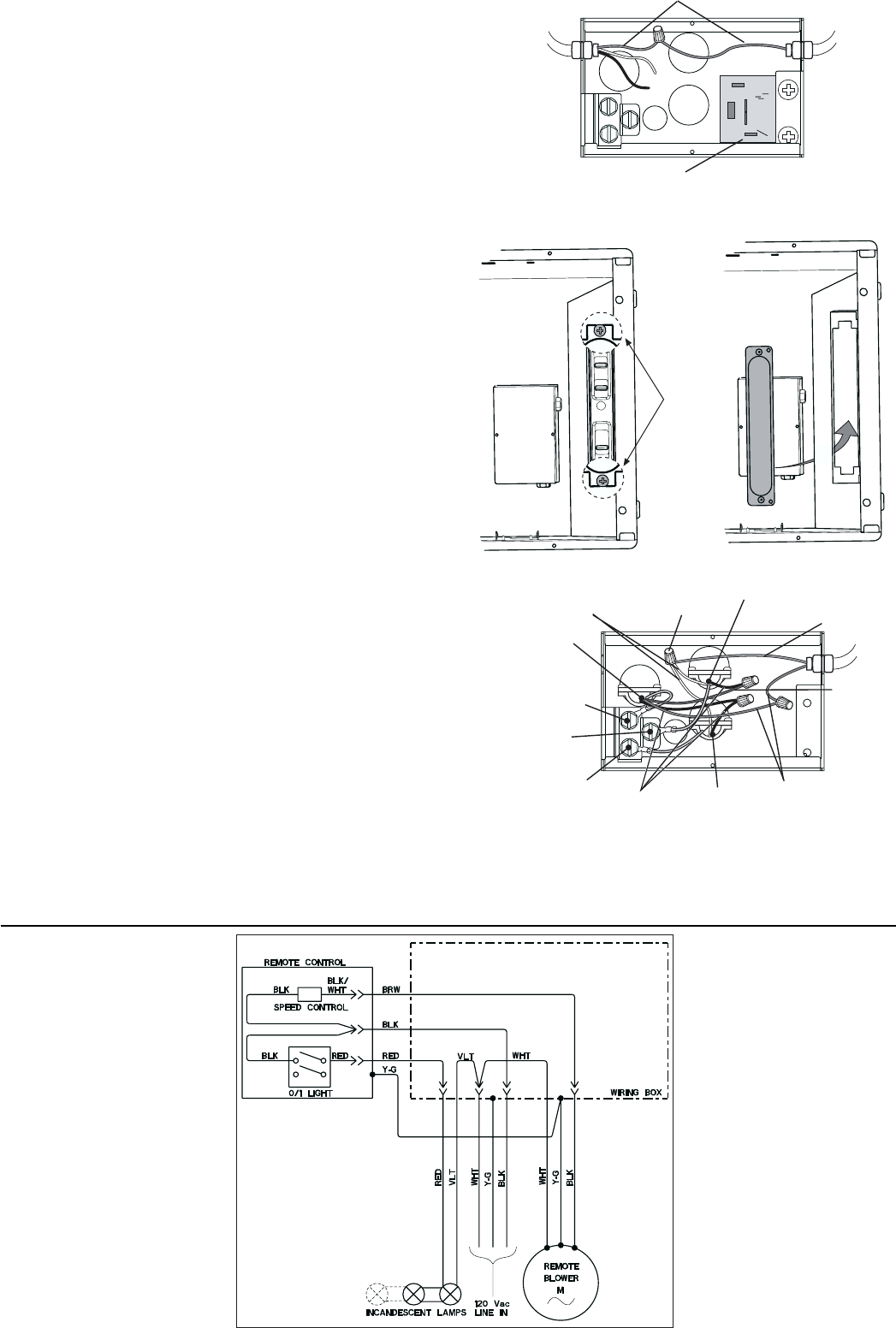

• Remove the wiring box cover by removing the two screws.
• Disconnect the two red wires by removing the twist-on wire connector.
• Remove the Internal Control Box by removing the the two phillips screws (item
A) on the bottom of the rangehood.
• Close the hole using the cap provided in the Remote Wall Control package
using the two screws.
• Remove the Electronic Board on the wiring box by removing the the two
phillips screws.
red wires
from
lamp
Electronic Board
(to be removed)
from
control
• Insert the cable with four wires (Brown, Black, Red and Green Ground
Wire) from the Remote Wall Control into the knockout hole of the
rangehood.
• Insert the 3 Remote Blower wires (Black, White and Green Ground
Wire) into the knockout hole of the rangehood.
• Insert the power supply cable into the knockout hole of the rangehood.
• Connect the green ground wire from the power supply to the green
ground screw.
• Connect the green ground wire from the Remote Wall Control to the unused green
ground screw.
• Connect the green ground wire of the Remote Blower to the unused green ground
screw.
• Connect the red wire from the Remote Wall Control with the red wire of Wiring
Box with a twist-on wire connector.
• Connect the brown wire from the Remote Wall Control with the black wire of the
Remote Blower cable with a twist-on wire connector..
• Connect the black wire from the Remote Wall Control with the black wire of the
power supply cable with a twist-on wire connector..
• Connect together with a twist-on wire connector the following wires:
- violet rangehood wire
- white wire of the power supply cable
- white wire of the Remote Blower cable.
• Replace the wiring box cover. Tighten the screw securely.
• Replace the bottom of the rangehood and reinsert the grease Þ lters.
• Reconnect the power
Twist on wire connector should be suitable for connecting multiple wires of different sizes together.
WIRING DIAGRAM
A
Y/G
remote
wall control
black wiring
white wiring
power
supply
conduit
twist-on
connectors
remote
blower
conduit
Y/G
supply
cable
brown wirin
g
violet wiring
from
lamp
remote
wall
control
conduit
red wiring
Y/G
remote
blower
436003417_ver1 -- 060627
