Franke Consumer Products FDF 364 W Ventilation Hood User Manual



EN
1
0
10

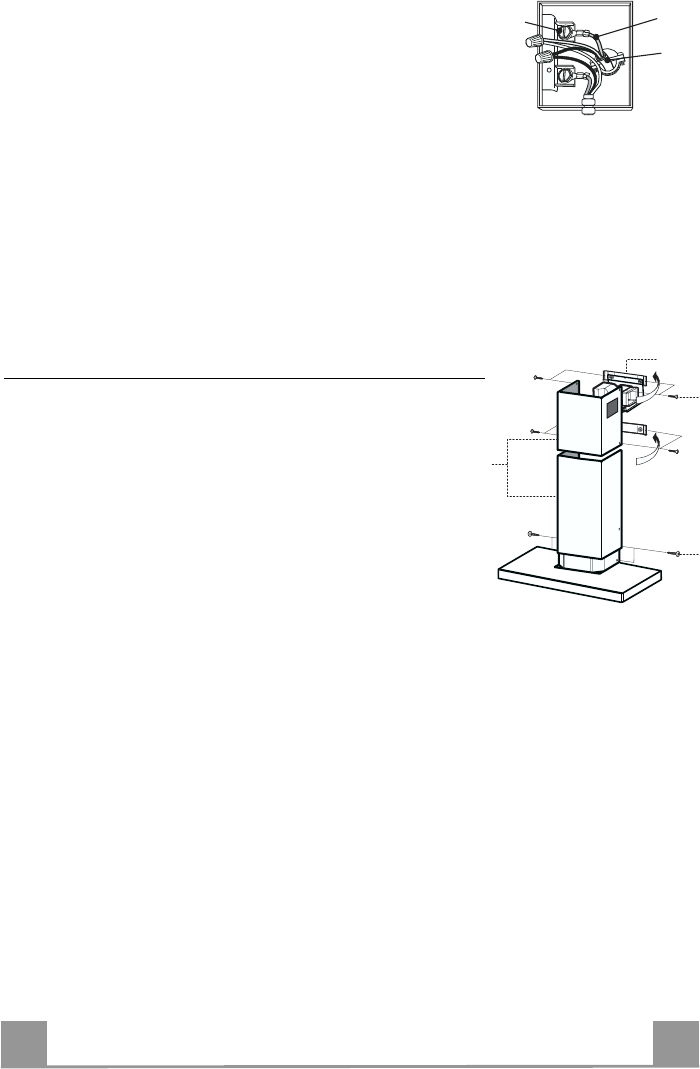

ELECTRICAL CONNECTION
• Remove the cover from the Field Wiring Compartment with a
phillips screwdriver.
• Feed the Power Supply Cable through the electrical knockout.
Connect the Power Supply Cable to the range- hood cable. At-
tach the Power Supply Cable grounding lead to the green screw
provided. Attach the White lead of the power supply to the
White lead of the rangehood with a twist-on type wire connec-
tor. Attach the Black lead of the power supply to the Black
lead of the rangehood with a twist-on type wire connector.
Replace the cover.
Chimney assembly
Upper exhaust Chimney
Slightly widen the two sides of the upper flue and hook them
behind the brackets 7.2.1, making sure that they are well
seated.
Secure the sides to the brackets using the 4 screws 12c sup-
plied.
• Make sure that the outlet of the extensions pieces is aligned
with the chimney outlets.
Lower exhaust Chimney
Slightly widen the two sides of the flue and hook them be-
tween the upper flue and the wall, making sure that they are
well seated.
• Fix the lower part laterally to the hood body using the 2 screws
12c supplied.
12c
2.1
2.2
2
7.2.1
12c
Power supply cable
Green
Ground
screw
Ground wire
