H. Evaporator Assembly
C-100BAE-AD, C-100BAE-ADDS
T-0 to U-2

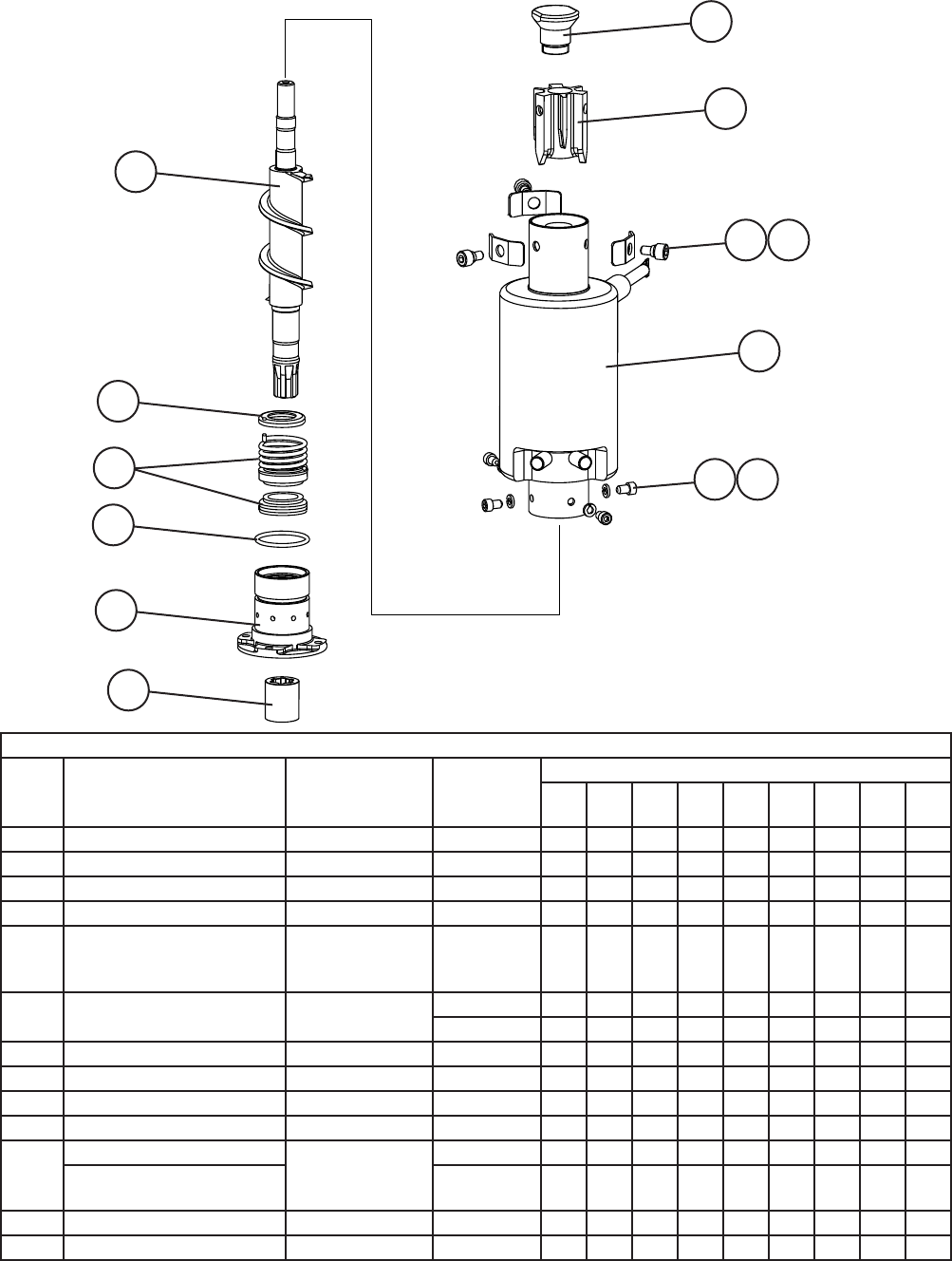

Title: H. Evaporator Assembly Model: C-100BAE-AD, C-100BAE-ADDS
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0 U-0
U-1
U-2
1 Evaporator 364138G01 1 1 1
1a Split Lock Washer M6, SS 7L22-0600 4 4 4
1b Socket Head Cap Screw 6×10, SS 7S12-0610 4 4 4
2 Auger 364142G01 1 1 1
3 Housing (Mounting
hardware is included in "G.
Ice Making Unit")
206013G03 1 1 1
4 "O" Ring 7616-G040 1 1 -
4A4755-01 1
5 Coupling-Spline 418316-01 1 1 1
6 Mechanical Seal 432491-01 1 1 1
7 Extruding Head 364141G01 1 1 1
7a Washer 453791-01 3 3 3
7b Socket Head Cap Screw 8×14, SS 7S12-0814 3 -
Socket Head Cap Screw
w/Seal
472513G01 3 3
8 Cutter 468824-01 1 1 1
9 Ring (B) 432494-01 1 1 1
1
1a 1b
2
3
4
5
6
9
7
7a 7b
8
