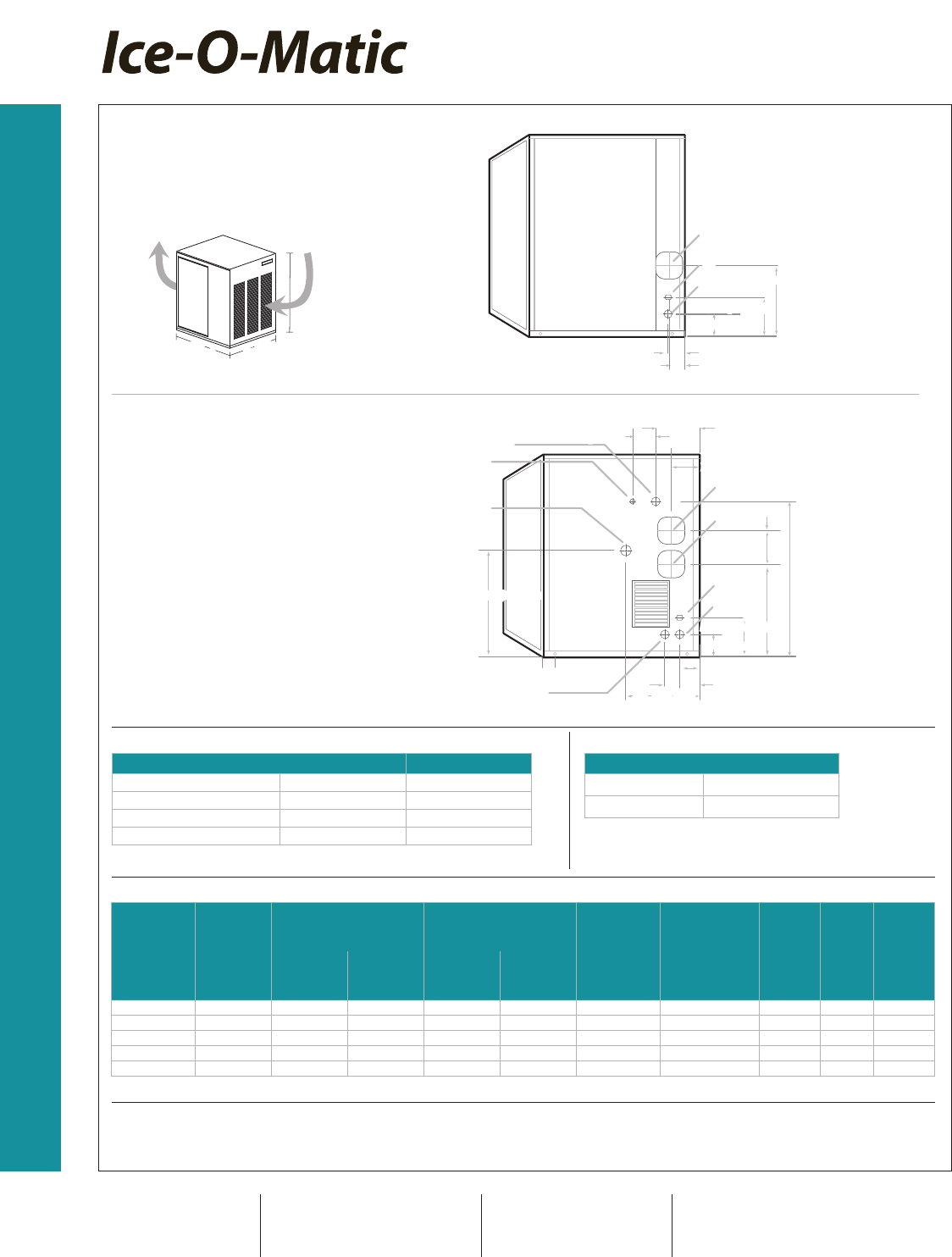

GEM0956/0955 Pearl Ice® Maker
GEM0956/0955 Pearl Ice® Maker
Air Cooled
Pleasenote:air-cooledunitsrequire6.(152mm)clearanceforair
intakeandexhaust.
A. Ice maker potable water in, ⁄" are.
B. Ice maker water out, ¾" FPT.
C. Electricalinlet.
Air In– Front
Air Out
21"
(533 mm)
24"
(610mm)
27" (686 mm)
RearView
2.3" (58 mm)2.3" (58 mm)
2.1" (53 mm)2.1" (53 mm)
5.25" (133 mm)5.25" (133 mm)
9.5" (241 mm)9.5" (241 mm)
3" (76 mm)3" (76 mm)
A.
C.
B.
AirCooled
Water Cooled/Remote
A. Ice maker water in, ⁄" are.
B. Ice maker water out, ¾"FPT.
C. Electricalinlet.
D. Condenser water in, ⁄" (water cooled only).
E. Condenser water out, ½" (water cooled only).
F. Liquid line, ⁄" male coupling for precharged
line set (remoteonly).
G. Discharge line, ½" male coupling for
precharged line set (remoteonly).
H. Remote condenser junction box
(remoteonly).
RearView
4.5" (114 mm)
20.8" (528 mm)
12.4" (315 mm)
5.25" (133 mm)
3" (8 mm)
1.6" (41 mm)
3.8" (97 mm)
2.6" (66 mm)
4.7" (119 mm)
9.9" (252 mm)9.9" (252 mm)
14.25" (362 mm)14.25" (362 mm)
C.
A.
D.
E.
B.
H.
F.
G.
3" (76 mm)
5.9" (150 mm)
WaterCooled&Remote
Operating Requirements
Minimum Maximum
AmbientTemp. Range Air 50˚F (10˚C) 100˚F (38˚C)
WaterTemp. 40˚F (4.4˚C) 100˚F (38˚C)
Water Pressure 20 PSIG (1.4 BAR) 120 PSIG (8.3 BAR)
Remote Cond. Temps -20˚F (-29˚C) 120˚F (50˚C)
Dimensions
All Models
W x D x H (inches) 21 x 24 x 27
W x D x H (mm) 533 x 610 x 686
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable Condenser
GEM0956A Air 1,080 (490) 780 (354) 12.0 - 3.94 208-230/60/1 11.3 15 5,600
GEM0956W Water 1,110 (499) 925 (420) 12.0 80.0 2.96 208-230/60/1 10.8 15 5,600
GEM0956R Remote* 920 (417) 830 (376) 12.0 - 4.11 208-230/60/1 14.1 20 5,600
GEM0955A Air 1,080 (490) 780 (354) 12.0 - 3.94 230/50/1 13.4 20 4,400
GEM0955W Water 1,100 (499) 915 (415) 12.0 80.0 2.96 230/50/1 13.1 15 4,400
*RequiresRemoteGRC1061Condenser
NOTES:
Number of Wires: 3 (including ground)
Approx.ShippingWeightlbs(kg): GEM0955A220(110) • GEM0955W220(100) • GEM0956A290(132) • GEM0956W290(132) • GEM0956R290(132)
Refrigerant Type: R404A
