Ice- O -Matic
™
®

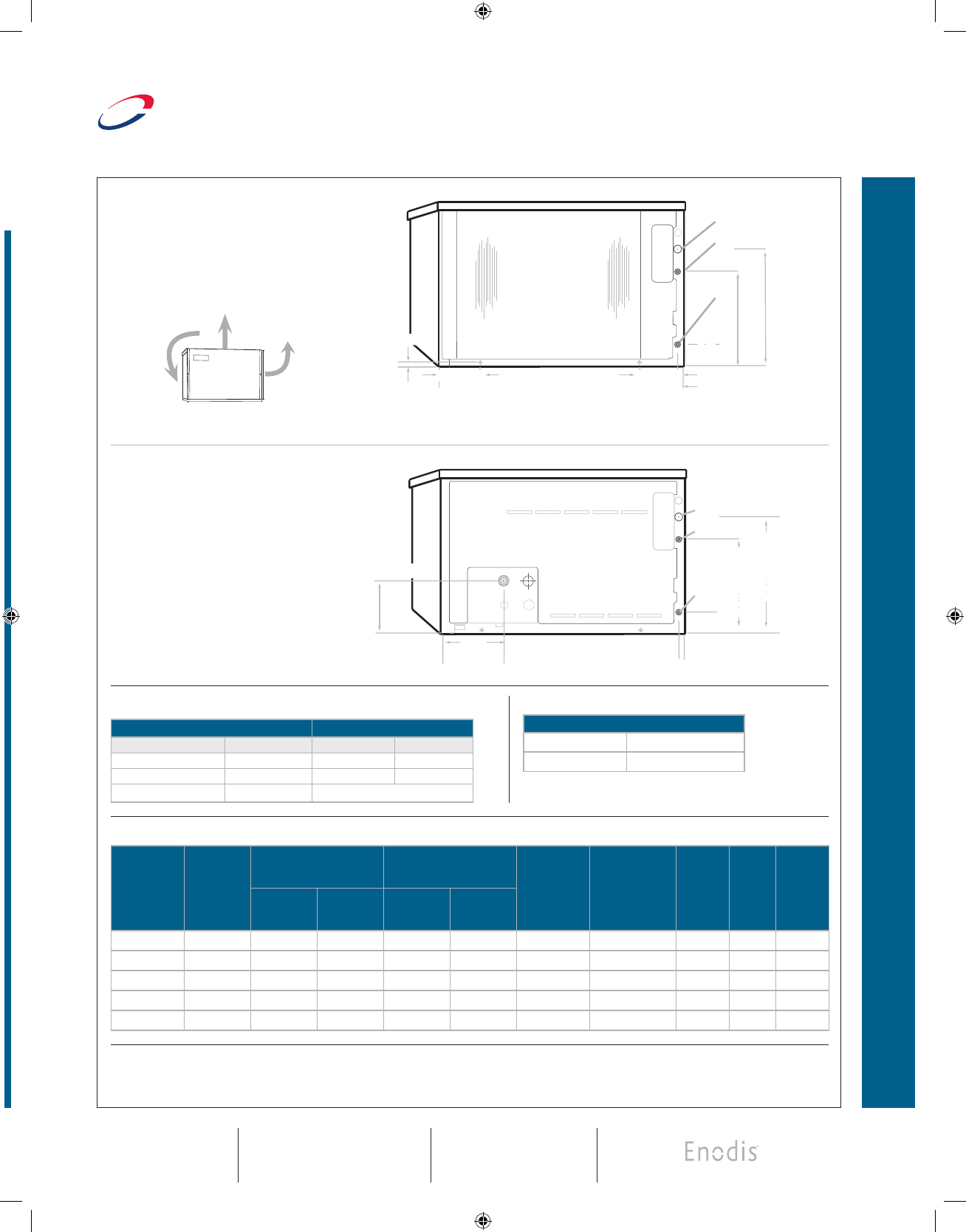

ICE0250/0305 Cube Ice Maker
ICE0250/0305 Cube Ice Maker
ICE0250/0305 - Cube Ice Maker
Air Cooled
Please note: air-cooled units require 6. (152 mm) clearance for
air intake and exhaust.
Ice maker potable water in, 3/8" FPT.A.
Ice maker water out, ¾" FPT. B.
Hole for electrical connections, 7/8". C.
Electrical connection junction box.D.
Air In–
Rear
Standard Side
Discharge
30"
(762mm)
24
20" (508 mm)
24"
(610mm)
Optional Top Discharge– No Side Clearance Required
B.
C.
D.
A.
2.6"
(66.8 mm)
.7" (17.8 mm)
5" (127mm)
Bin Hanger
5" (127mm)
Bin Hanger
.62" (16mm)
14.3" (363 mm)
11.7" (297.1 mm)
Air Cooled
Water Cooled
Ice maker potable water in, 3/8" FPT.A.
Ice maker water out, ¾" FPT.B.
Hole for electrical connections, 7/8". C.
Condenser water in, 3/8" FPT.D.
Condenser water out, ½" FPT.E.
.70"(17.8 mm)
2.6"(66.8 mm)
14.5" (368.3 mm)
7.5"
(190.5 mm)
10.5"
(266.7 mm)
11.7" (297.1 mm)
6.5" (165.1 mm)
E.
D.
F.
B.
C.
A.
Water Cooled
Operating Requirements
Minimum Maximum
60 Hz 50Hz
Ambient Temp. Range Air 50˚F (10˚C) 100˚F (38˚C) 110˚F (43˚C)
Water Temp. 40˚F (4.4˚C) 100˚F (38˚C) 110˚F (43˚C)
Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)
Dimensions
All Models
W x D x H (inches) 30 x 24 x 20
W x D x H (mm) 762 x 610 x 508
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable Condenser
ICE0250A Air 336 (153) 253 (115) 35.8 - 7.9 115/60/1 13.3 15 6,248
ICE0250W Water 333 (151) 275 (125) 34.5 131 6.1 115/60/1 10.8 15 5,855
ICE0250T Air, Top 353 (160) 244 (111) 31.3 - 8.1 115/60/1 13.3 15 6,103
ICE0305A Air 361 (164) 279 (127) 33.8 - 7.5 230/50/1 8.4 16 6,689
ICE0305W Water 344 (155) 296 (135) 34.1 114 6.0 230/50/1 6.6 16 6,265
NOTES:
Number of Wires: 3 (including ground)
Approx. Shipping Weight lbs (kg): ICE0250A150(68) • ICE0250W150(68) • ICE0250T150(68) • ICE0305A150(68) • ICE0305W150(68)
Refrigerant Type: R404A
Part: 1003
ICE_Cubers.indd 3 5/8/08 11:16:56 AM
