Continuous Flow Icemaker Service Manual
Publication Number: 630460174SER - 10 - © 2004-2005, IMI Cornelius Inc.

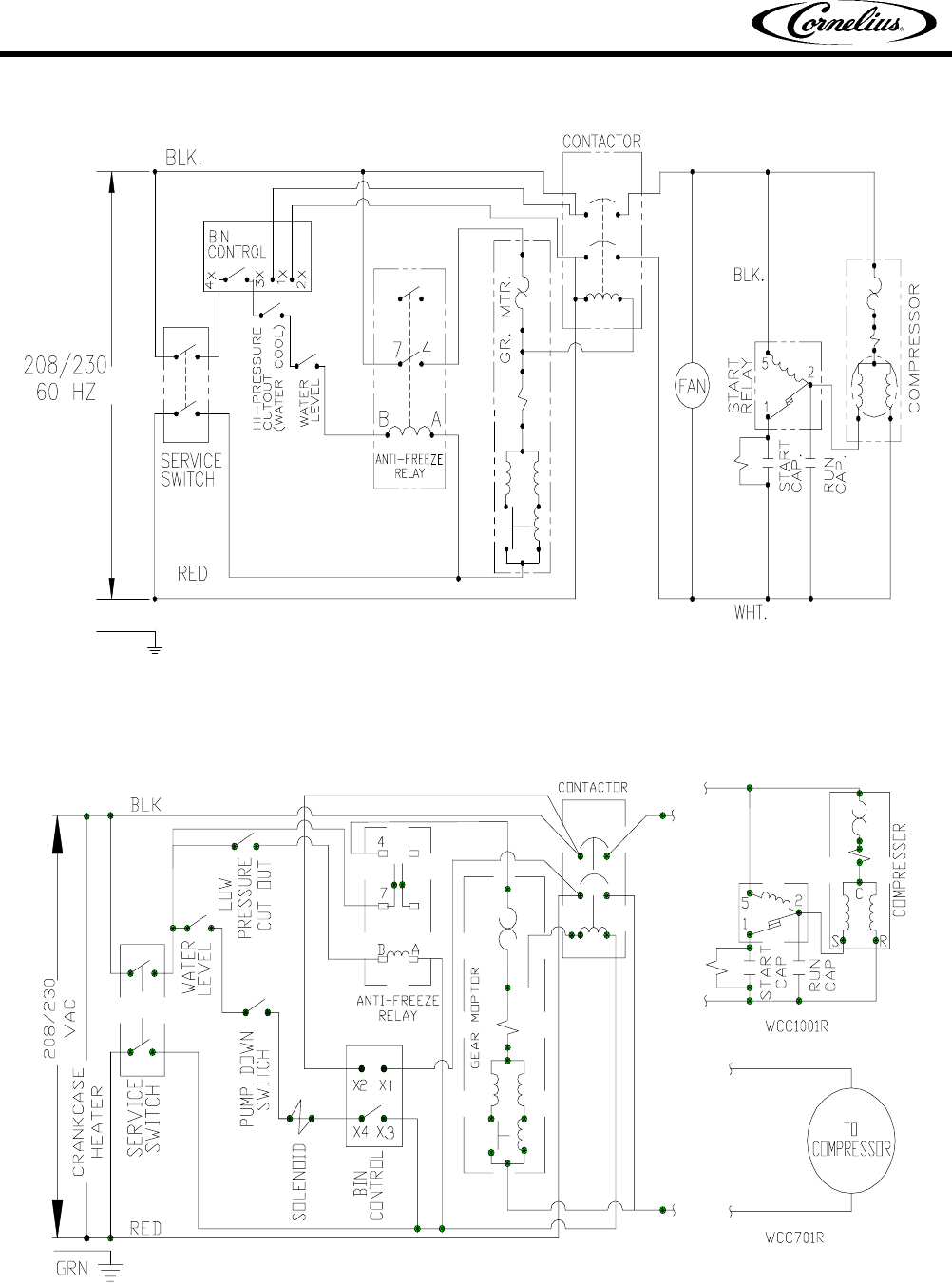

FIGURE 8. SCHEMATIC AND WIRING DIAGRAM WCC701-A, WCC701-W, WCC1001-A, WCC1001-W, WCF711-A,
WCF711-W, WCF1101-A, & WCF1101-W
FIGURE 9. SCHEMATIC AND WIRING DIAGRAM WCF1101R, WCC1001R, WCF1102R, & WCC1102R
