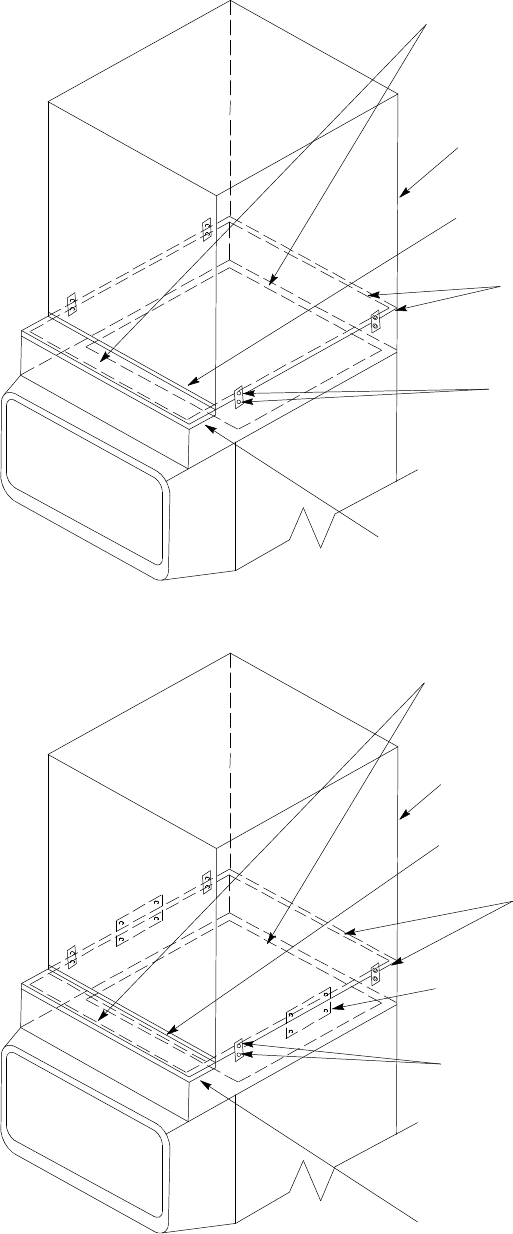

APPLY RTV ALONG HOPPER
FLANGE ALL AROUND FOR PROPER
SEAL. COMPLETE COVER MUST BE
SEALED TO HOPPER.
ICEMAKER TO BE FLUSH WITH BACK
EDGE OF COVER.
APPLY RTV AROUND INSIDE
OF ICEMAKER OUTLINE ON
DISPENSER COVER TO FORM
A SEAL. (4PLCS)
USING EXISTING HOLES, MOUNT BRACKETS (4)
WITH 1/4-20 SCREWS. USING UPPER HOLES AS
TEMPLATE, DRILL (4) .136 DIA. HOLES TO SECURE
ICEMAKER AND DISPENSER. DRILLING IS NOT TO
INTERFERE WITH ICEMAKER COMPONENTS. IF
THERE IS INTERFERENCE, USE OPTIONAL
MOUNTING BRACKETS (2).
OPTIONAL MOUNTING BRACKETS (2)
REMOVABLE FRONT LID FOR
MANUAL ICE FILLING.
APPLY RTV ALONG BOTTOM EDGE OF
ICE RAMP AND FRONT HOPPER LIP.
COOMPLETE COVER MUST BE SEALED
TO HOPPER.
ICEMAKER TO BE FLUSH WITH BACK
EDGE OF COVER.
ADD INSULATION STRIP TO FLANGE
OF REMOVABLE LID.
APPLY RTV AROUND INSIDE
OF ICEMAKER OUTLINE ON
DISPENSER COVER TO FORM
A SEAL. (SIDES AND FRONT)
REMOVE ICEMAKER PANEL
SCREWS THAT ARE IN LINE
WITH COVER HOLES AND
INSTALL MOUNTING BRACKETS
WITH SCREWS PROVIDED (4)
REMOVABLE FRONT LID FOR
MANUAL ICE FILLING.
B320 AND 420
GC300
ADD INSULATION STRIP TO FLANGE
OF REMOVABLE LID.
