IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
XTREME ICE MAKER (322 AND 330 SERIES)
AIR CONDENSER WATER COOLED
1
2
2
3
3
5
6
7
4
4
5
6

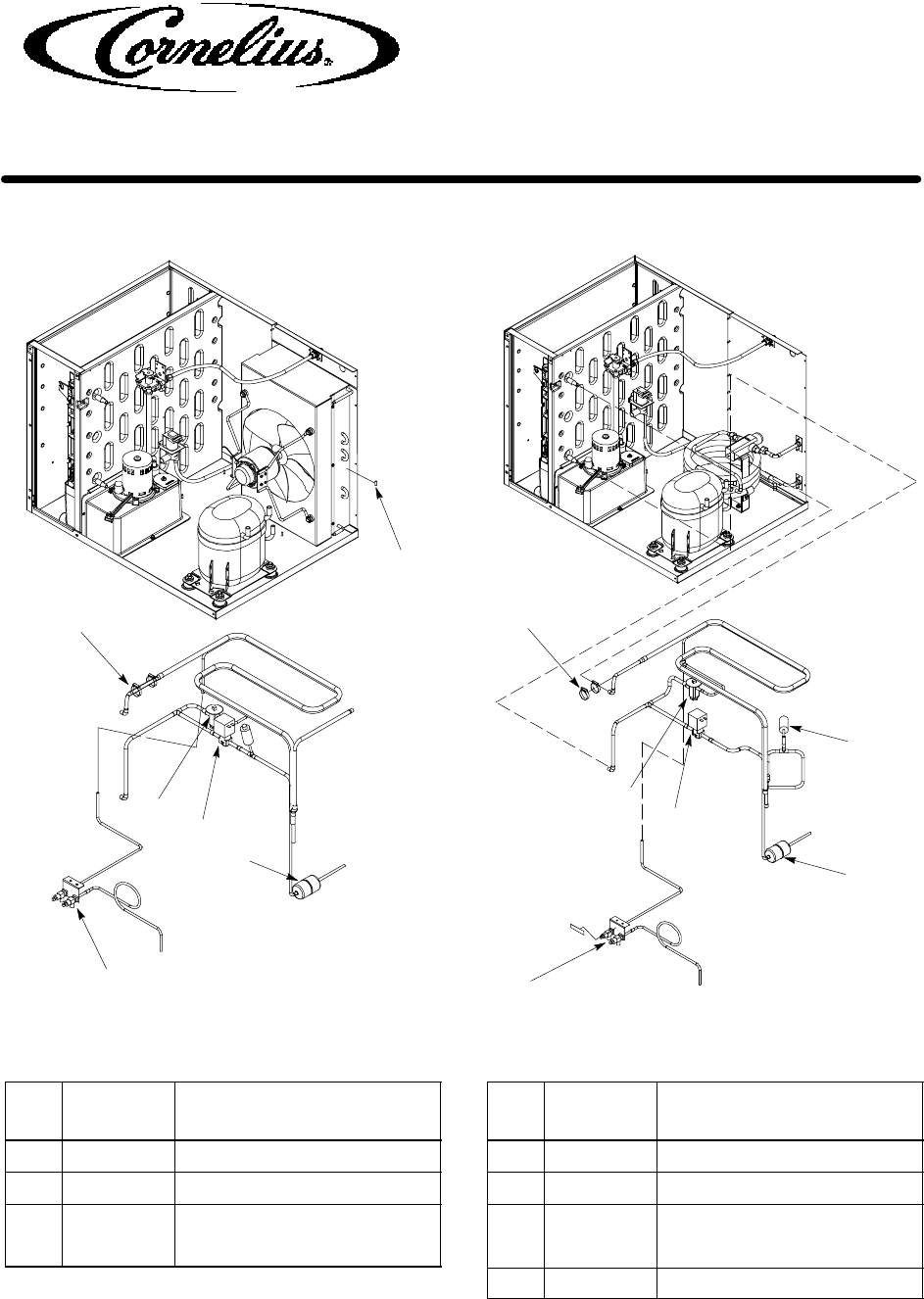

FIGURE 3. REFRIGERATION ASSEMBLY
Item
No. Part No. Name
1 161862005 Sensor Tmp (Air Condenser)
2 161426001 Clamp Gear No. 12
3 630000789 Valve and Brkt Svc (322 Series)
630000786 Valve and Brkt Svc (330 Series)
Item
No. Part No. Name
4 166184001 Dryer Filter
5 161921006 Valve Expan
6 165629005 Valve Hot Gas (120V 60HZ)
165629011 Valve Hot Gas (230V 50HZ)
7 165677008 Switch Prs Asy
Manual Part No. 630460172IPL
07–21–2005
IMI Cornelius Co., 2005
XTREME ICE (322 and 330)
4 of 13
Rev A
