Icemaker & Adaptor Hold-Down Kit Installation Instructions
Publication Number: 629096853INS - 2 - © 2008, IMI Cornelius Inc.

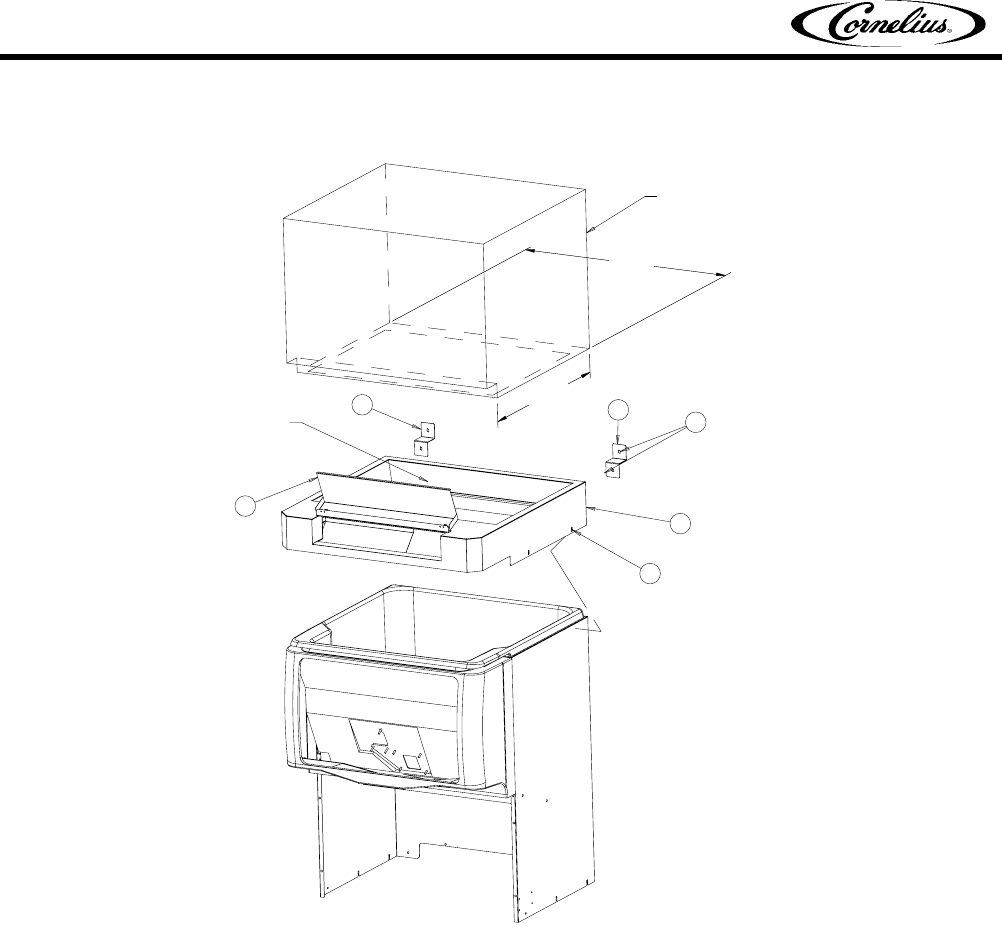

Figure 1
2. Locate the two right and left side hold down brackets, shown in Figure 2. These are the brackets with the
bent flange on them.
Figure 2
3. There are two options for installing the brackets, outside of the side panels or behind the side panels, as
shown in Figure 3. Left side of unit is shown in Figure 3.
Figure 3
4. Place the bracket over the adapter lid then re-install the black screws that were removed in Step 1.
Side Panel
Screws
Left Side
Right Side
Straight Edge Goes
to the Rear of the
Dispenser
