IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
Manual Part No. 630460178IPL
07–22–2005
IMI Cornelius Co., 2005
XTREME ICE (630-830-1030)
3 of 12
Rev A
XTREME ICE MAKER (630-830-1030 SERIES)
SEE DETAIL A
SEE DETAIL B
DETAIL B DETAIL A
1
1
2
3
4
5
6
7
6
9
10
11
12

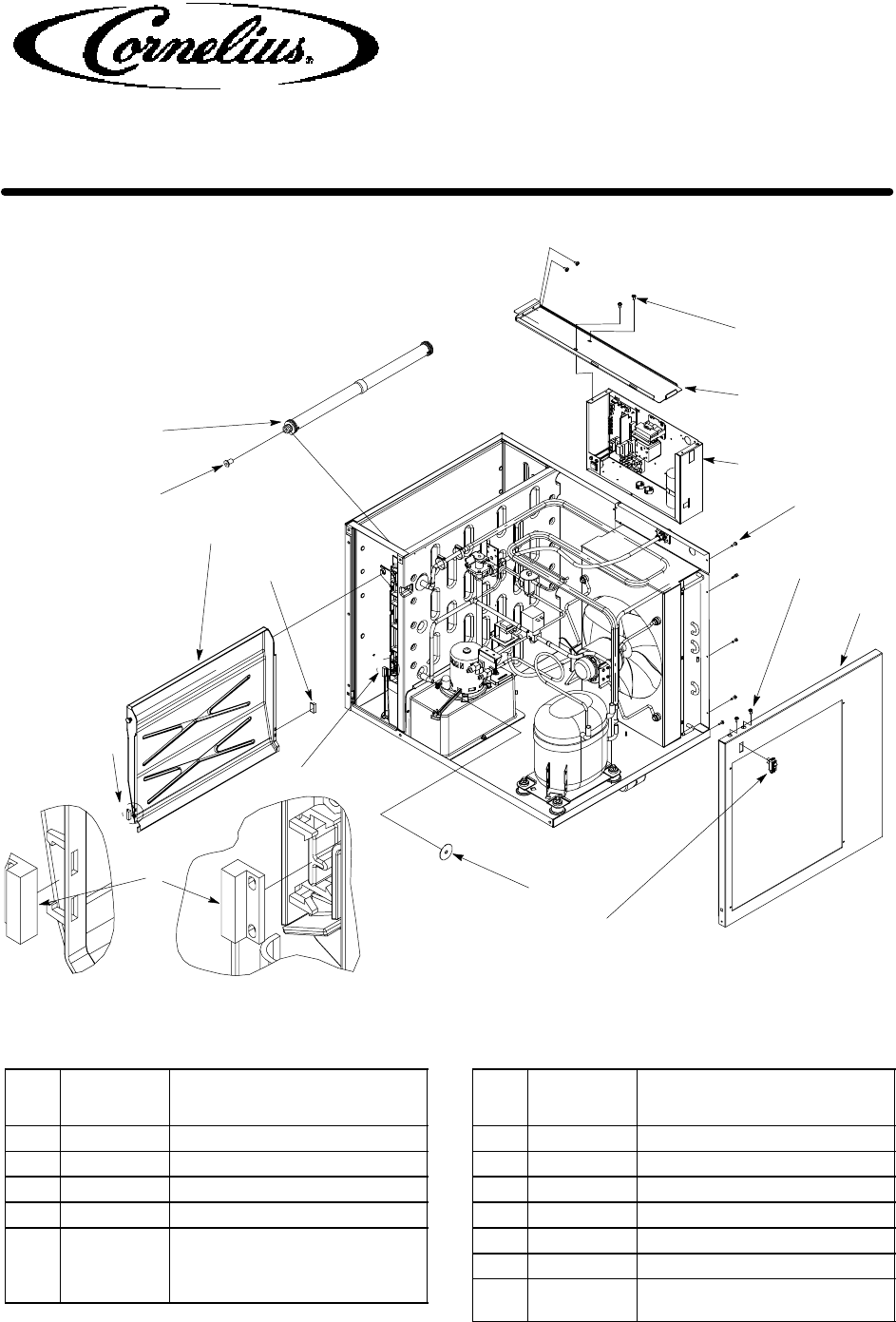

FIGURE 2. TRIM ASSEMBLY (AIR CONDENSER SHOWN)
Item
No. Part No. Name
1 07578 Screw TC 8-32 TRPH 12
2 630201033 Brace Elec Box
3 Elec Box Asy (See Figure 10)
4 165384000 Screw SM 8 TA HX 16
5 630201139 Panel Side RH (630-830)
630201076 Panel Side RH (1030)
630200510 Panel Accs Side RH (Marine)
Item
No. Part No. Name
6 630901000 Washer SL .540 I.D.
7 630900924 Swt Rocker On/Off
8 630900798 Switch Proximity
9 630900827 Cover Evap Large
10 630900870 Fitg Placeholder
11 630900908 Orifice Flow Reducer
12 631500120 Kit Svc Water Distributor Asy
(See Figure 11)
