IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
Manual Part No. 630460193IPL
7–22–2005
IMI Cornelius Co., 2005
XTREME ICE (1230)
9 of 11
Rev B
XTREME ICE MAKER (1230 SERIES)
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12

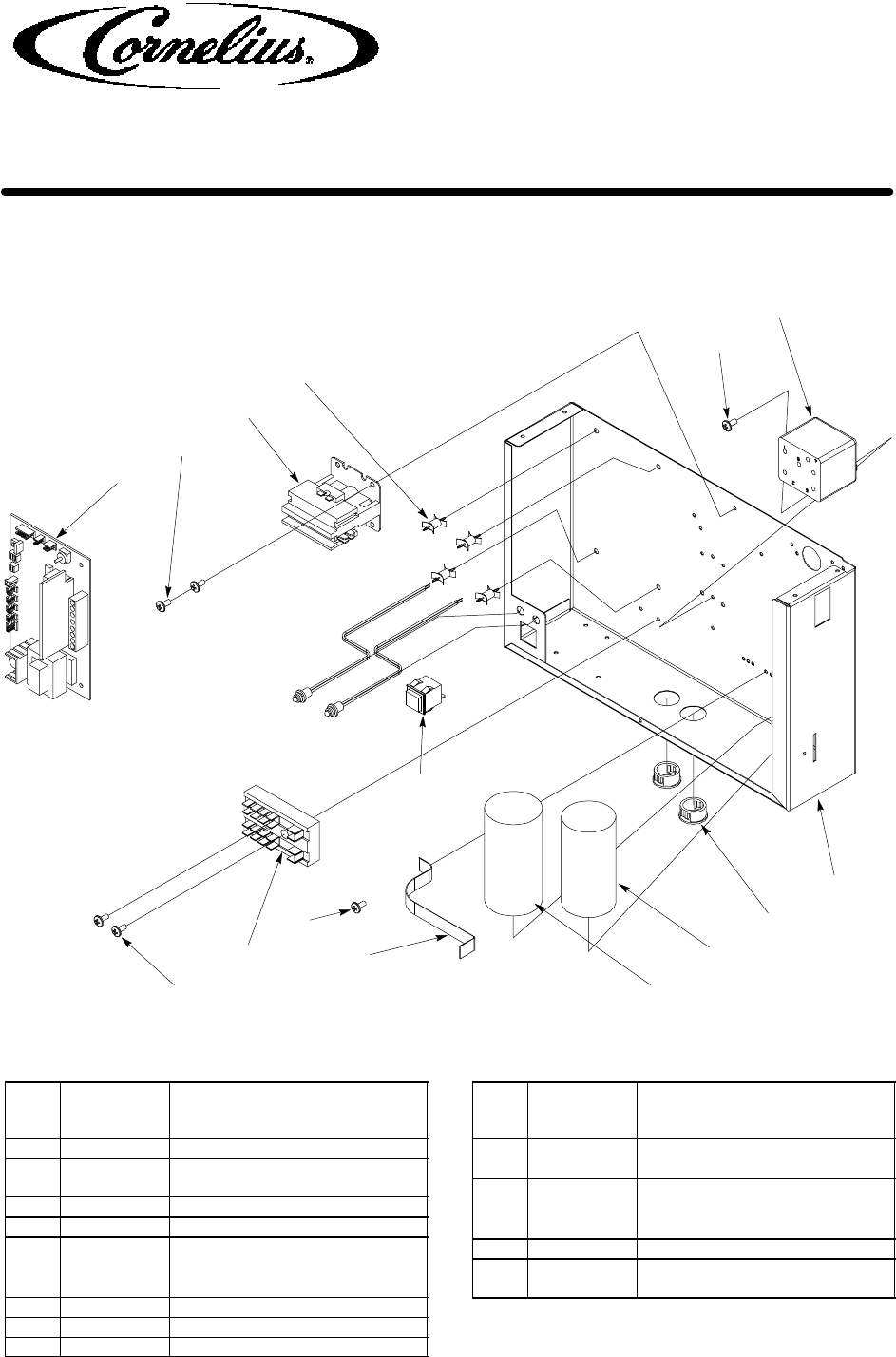

FIGURE 8. ELECTRICAL BOX ASSEMBLY
Item
No. Part No. Name
1 630900789 Control Board
2 07578 Thread Cutting Screw, Phil Truss
Hd, No. 8-32 By 3/8-In. Long
3 40713 Relay, 208/240V 50/60HZ
4 630460105 Spacer, Control Board
5 638090242 Relay, Start 230V 50HZ
40285 Relay, Start (Air)
630900965 Relay, Start (Remote and Water)
6 161838002 Terminal Block
7 630900905 Switch
8 630200166 Strap, Capacitor
Item
No. Part No. Name
9 161192005 Capacitor, Run 240V 50/60HZ (Air)
630900967 Capacitor, Run (Remote and Water)
10 41044 Capacitor, Start (Air)
630901026 Capacitor, Start (Remote and Water)
161165013 Capacitor, Start 230V 50HZ
11 03611 Bushing
12 630201035 Wrap, Electrical Box
630201246 Wrap, Electrical Box (Marine)
