IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
Manual Part No. 630460193IPL
7–22–2005
IMI Cornelius Co., 2005
XTREME ICE (1230)
10 of 11
Rev B

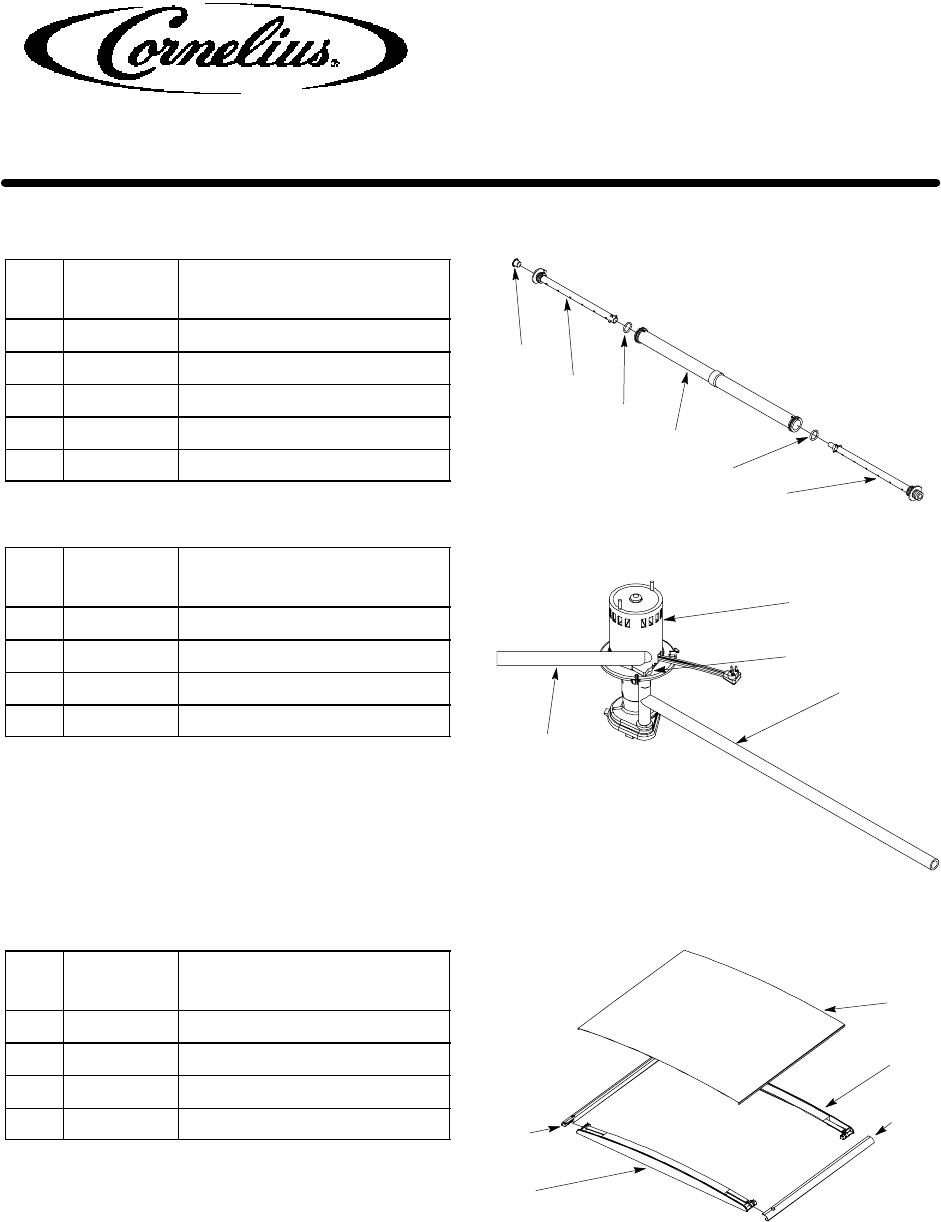

XTREME ICE MAKER (1230 SERIES)
Item
No. Part No. Name
1 630900883 Plug
2 630900780 Distributor, Water, Inner
3 630900809 O-Ring, .075 I.D.
4 630900779 Distributor, Water, Inner, Barb
5 630900777 Distributor Ass’y, Water
1
2
3
4
3
5
FIGURE 9. WATER DISTRIBUTOR ASSEMBLY
Item
No. Part No. Name
1 630900881 Tube, Pump to Dump Valve
2 630900796 Pump, Water, 240V 50/60HZ
3 630900980 Tube, Pump to Distributor
4 163242002 Clamp
1
2
3
4
FIGURE 10. WATER PUMP ASSEMBLY
Item
No. Part No. Name
1 630201200 Cover, Front
2 630900853 Cap, Front Panel
3 630201201 Rail, Front Panel, Left
4 630201202 Rail, Front Panel, Right
1
2
3
4
2
FIGURE 11. FRONT PANEL ASSEMBLY
