ILLUSTRATED PARTS LIST
Manual Part No. 630460202IPL
07–22–2005
IMI Cornelius Co., 2005
XTREME ICE (1444 and 1844)
4 of 12
Rev A
XTREME ICE MAKER (1444 AND 1844 SERIES)
1
2
2
8
9
6
7
4
10
11
12
13
14
15
16
17
19
20
21
22
23
25
26
28
30
31
32
SEE DETAIL A
DETAIL A
5
33
34
35

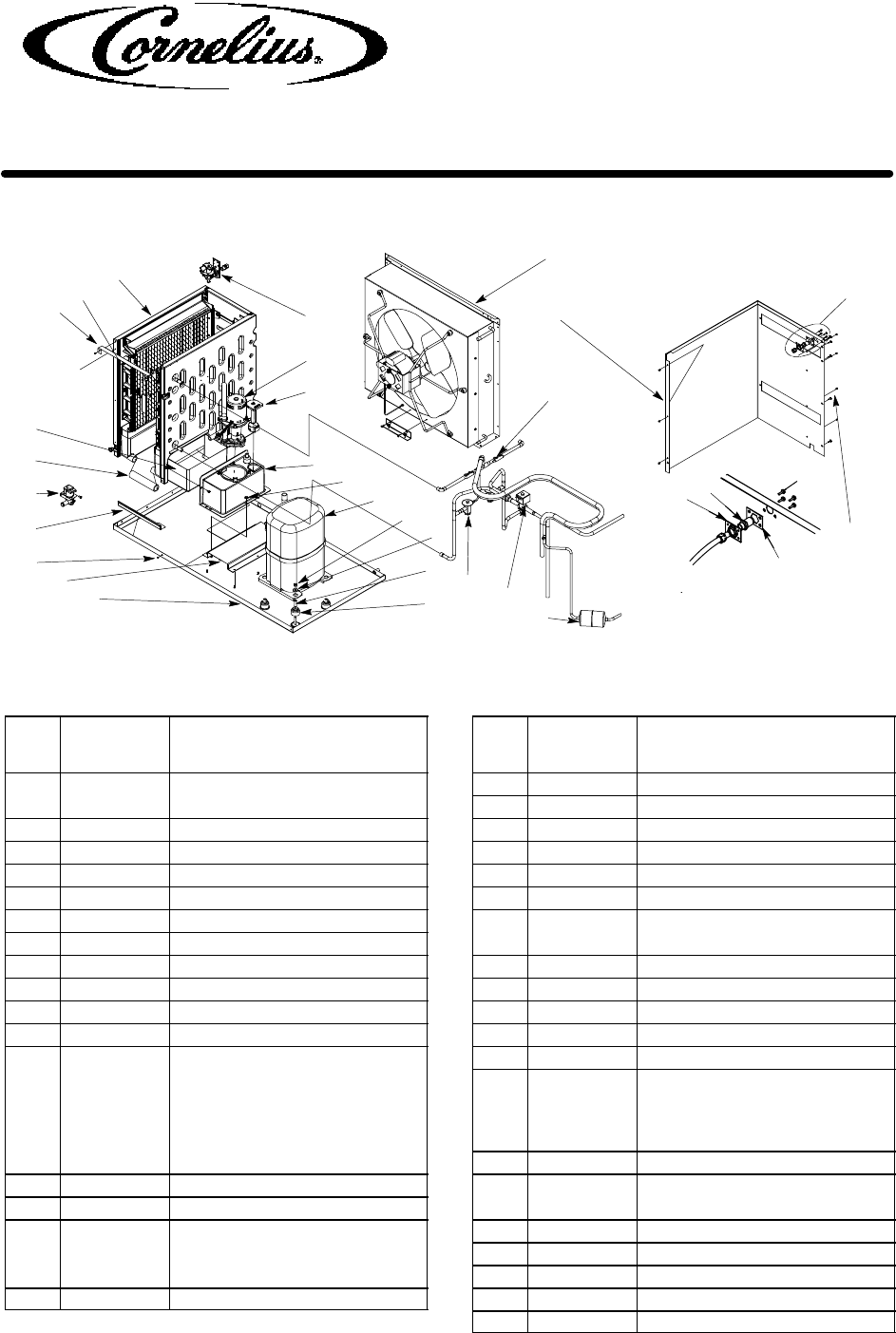

FIGURE 3. BUILD ASSEMBLY (AIR CONDENSER)
Item
No. Part No. Name
1 630201156 Wrap, Cabinet (1444)
630201249 Wrap, Cabinet (1844)
2 165384000 Sheet Metal Screw, No. 8 By 1/2”
3 420906000 Tube, .265 I.D. (Not Shown)
4 630200935 Flange, Bulkhead
5 630900783 Fitting, Bulkhead
6 630201570 Flange, Bulkhead
7 Condenser Ass’y (See Figure 7)
8 630900868 Pressure Sensor Ass’y
9 Water Pump Ass’y (See Figure 11)
10 630900895 Hex Nut, No. 8-32
11 630900869 Pan, Water Wrap
12 631500148 Kit Comp 208V 60HZ (1444)
631500161 Kit Comp 3HP 240V 50HZ (1444)
631500098 Kit Comp 3-1/4HP 240V 60HZ
(1844; 1PH)
631500097 Kit Comp 3-1/4HP 230V 60HZ
(1844; 3PH)
13 164083005 Hex Nut, 5/16-18
14 164154001 Washer, .375 I.D.
15 630900964 Sleeve Grommet 60HZ (1444)
165596002 Sleeve Grommet 50HZ (1444)
165596003 Sleeve Grommet (1844)
16 630900791 Solenoid Valve
Item
No. Part No. Name
17 630201038 Brace, Bulkhead
18 638006070 Tube, .375 I.D. (Not Shown)
19 Bulkhead Ass’y (See Figure 6)
20 164126000 Screw, SM 8 PHTR 16
21 165637009 Dump Valve
22 630201113 Bracket, Water Pan
23 630000853 Base (1444)
630000894 Base (1844)
24 630201112 Bracket (Not Shown)
25 630201092 Clip
26 630900930 Tube, Vynl
27 161862005 Sensor Temp (Not Shown)
28 161462001 Clamp, Screw
29 630000854 Service Valve and Bracket Ass’y
(1444; Not Shown)
630000886 Service Valve and Bracket Ass’y
(1844; Not Shown)
30 166184003 Dryer
31 161921008 Expansion Valve (1444)
630901095 Expansion Valve (1844)
32 165629009 Hot Gas Valve
33 630900833 Water Pan
34 630900963 Grommet
35 630201267 Bracket, Stiffener
36 630201250 Bracket, Fan Motor (Not Shown)
