IDC Icemaker Adaptor Kit Installation Instructions
© 2005-2006, IMI Cornelius Inc. - 1 - Publication Number: 629088650INS
INSTALLATION INSTRUCTIONS
IDC ICEMAKER ADAPTOR KIT FOR P/N 629088650

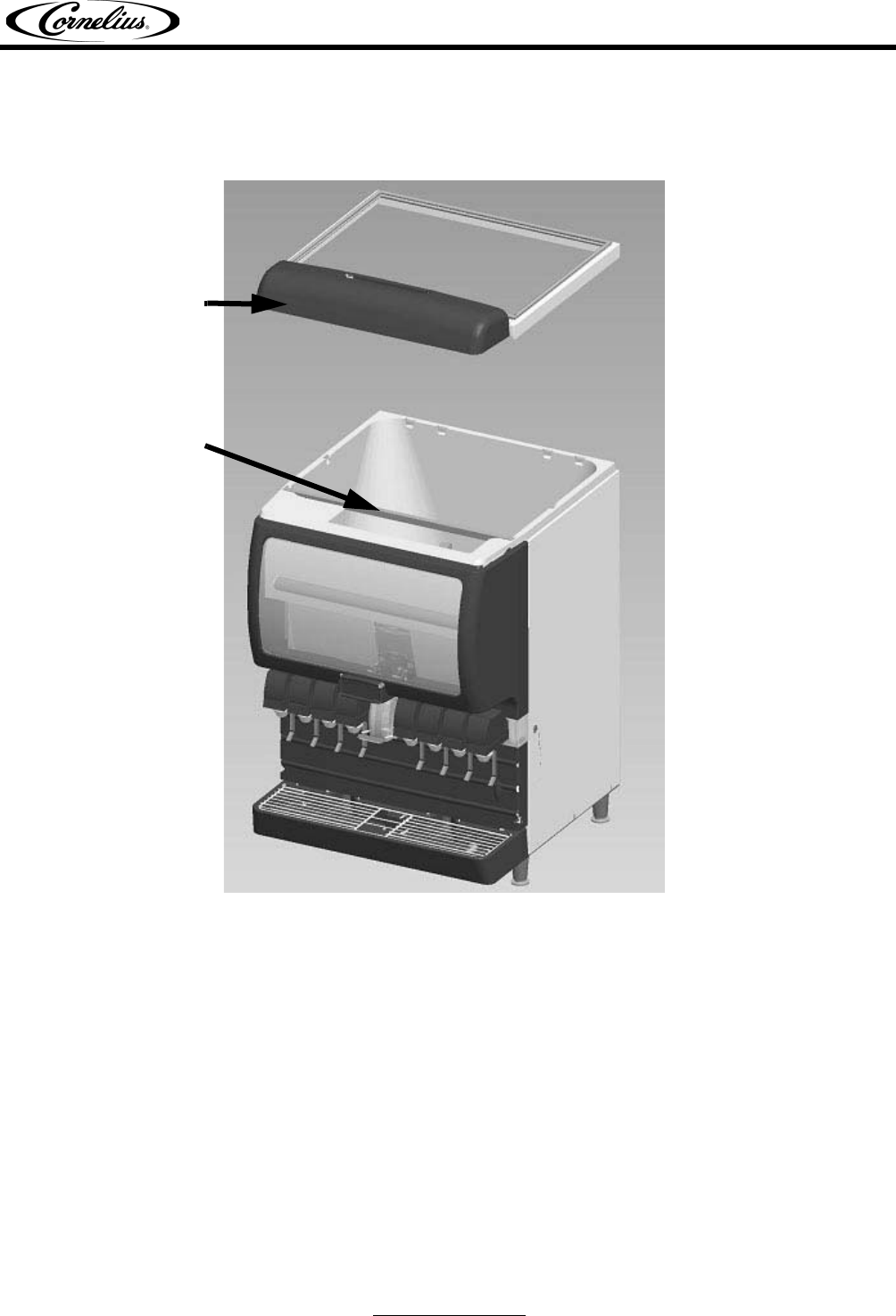

FIGURE 1
1. Place bar into first set of pockets inside the ice bin.
2. Place Icemaker Adaptor Kit on top of unit.
3. Place icemaker on top of kit. DO NOT slide icemaker into position on the lid.
4. Apply a continuous bead of NSF International (NSF) listed silastic sealant (Dow 732 or equivalent),
supplied in kit to seal the icemaker to the top of the adapter kit. All excess sealant must be wiped
away immediately.
5. Secure the icemaker to the adapter by drilling 9/64” diameter holes, using one of the two brackets
supplied in the kit, into both the rear of the icemaker and rear of the icemaker adapter kit. Use
extreme care not to drill into any icemaker components!!! Secure the brackets using the screws
provided.
Icemaker Adaptor Kit
Bar
Revision Date: January 30, 2006 www.cornelius.com Revision: C
