IDC Icemaker Adaptor Kit Installation Instructions
Publication Number: 629088650INS - 2 - © 2005-2006, IMI Cornelius Inc.

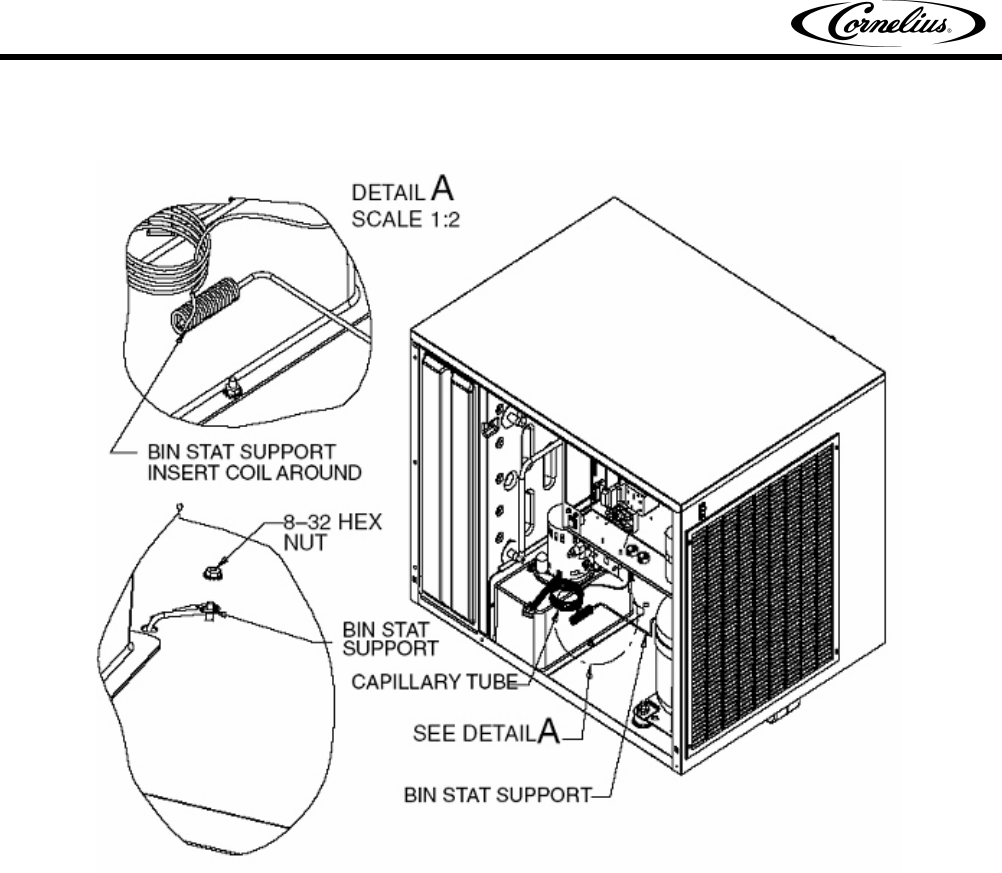

6. Assemble bin stat to icemaker, as shown. The bin stat must not interfere with the agitator rotation
and not be in the path of ice falling from the icemaker.
FIGURE 2. BIN STAT ASSEMBLY
7. For optimal performance, do not fill ice bin more than 2/3 capacity (maximum fill is 4” below top of
bin). Applies to IDC 255 models only.
