Kenmore 13163 Dishwasher User Manual

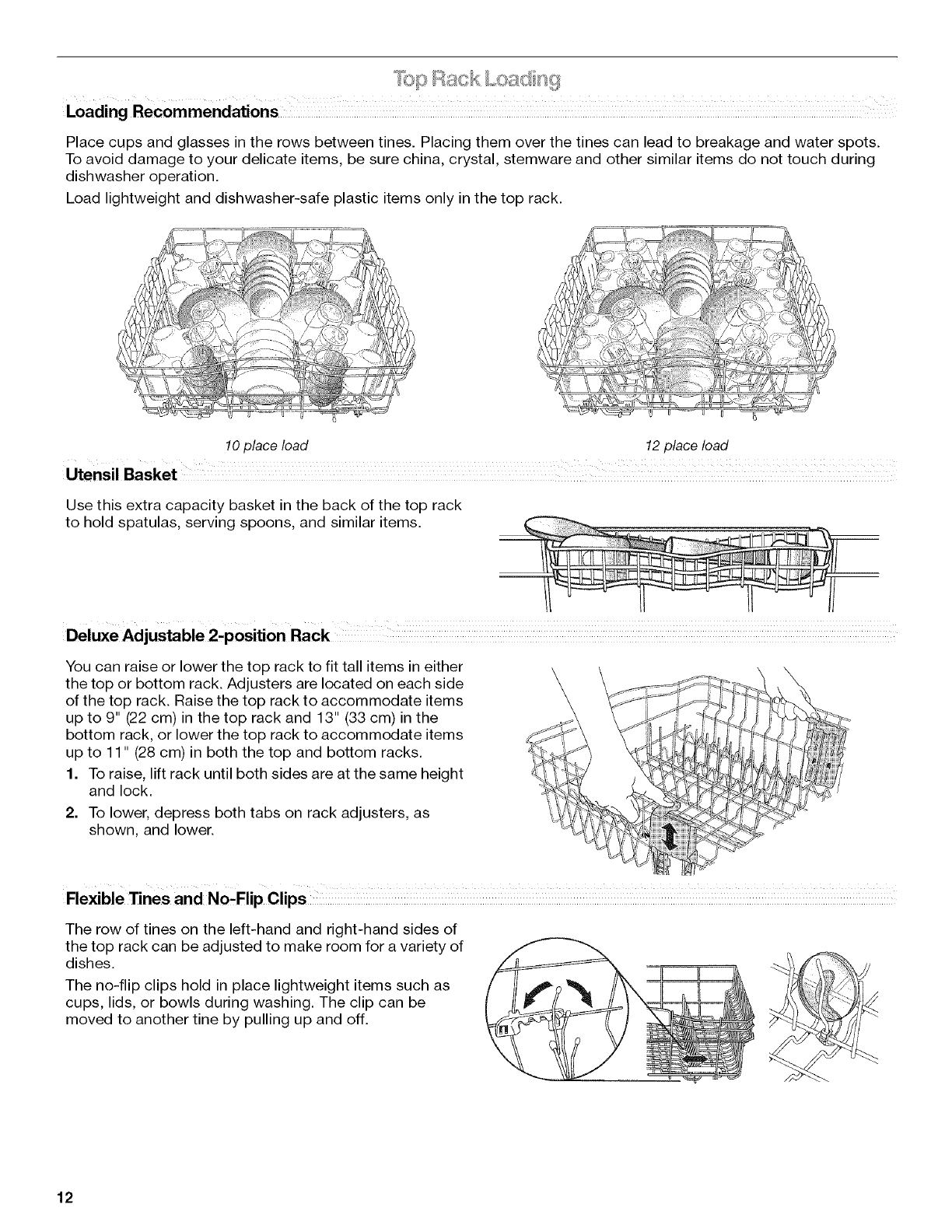

LoadingRecommendations
Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots.
To avoid damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during
dishwasher operation.
Load lightweight and dishwasher-safe plastic items only in the top rack.
10place load 12place load
UtensU Basket
Use this extra capacity basket in the back of the top rack
to hold spatulas, serving spoons, and similar items.
Deluxe Adjustable 2,position Rack
You can raise or lower the top rack to fit tall items in either
the top or bottom rack. Adjusters are located on each side
of the top rack. Raise the top rack to accommodate items
up to 9" (22 cm) in the top rack and 13" (33 cm) in the
bottom rack, or lower the top rack to accommodate items
up to 11" (28 cm) in both the top and bottom racks.
1. To raise, lift rack until both sides are at the same height
and lock.
2. To lower, depress both tabs on rack adjusters, as
shown, and lower.
Flexible Tines and No,Flip Clips
The row of tines on the left-hand and right-hand sides of
the top rack can be adjusted to make room for a variety of
dishes.
The no-flip clips hold in place lightweight items such as
cups, lids, or bowls during washing. The clip can be
moved to another tine by pulling up and off.
12
