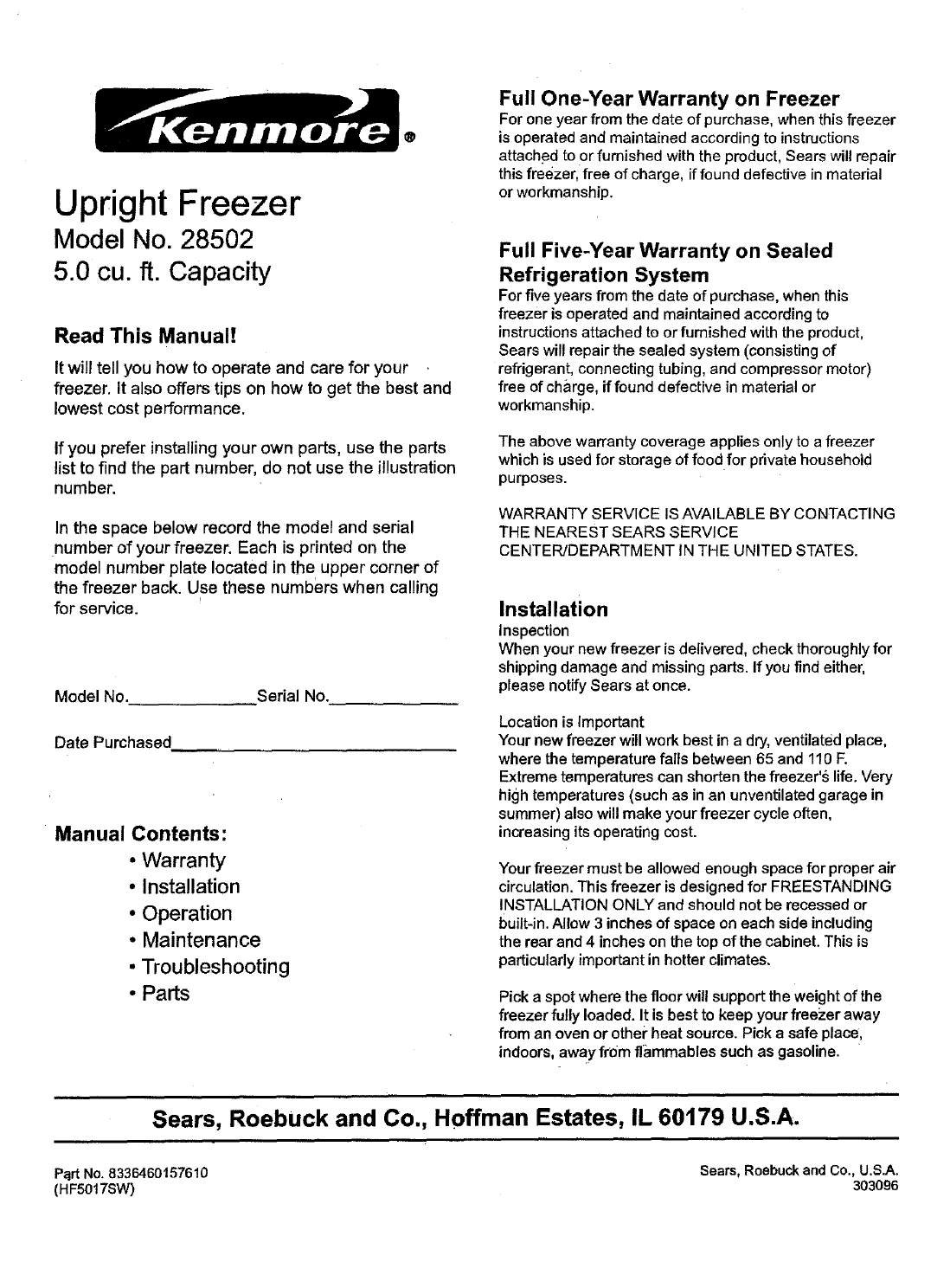

Upright Freezer
Model No. 28502
5.0 cu. ft. Capacity
Read This Manual!
It will tell you how to operate and care for your
freezer. It also offers tips on how to get the best and
lowest cost performance.
If you prefer installing your own parts, use the parts
list tofind the part number, do not use the illustration
number.
In the space below record the model and serial
number of your freezer. Each is printed on the
model number plate located in the upper corner of
the freezer back. Use these numbers when calling
for service.
Model No.
Date Purchased
Serial No.
Manual Contents:
• Warranty
• Installation
• Operation
• Maintenance
• Troubleshooting
• Parts
Full One-Year Warranty on Freezer
For one year from the date of purchase, when this freezer
isoperated and maintained according to instructions
attached to or furnished with the product, Sears will repair
this freezer, free of charge, iffound defective in material
or workmanship.
Full Five-Year Warranty on Sealed
Refrigeration System
For five years from the date of purchase, when this
freezer is operated and maintained according to
instructions attached to or furnished with the product,
Sears will repair the sealed system (consisting of
refrigerant, connecting tubing, and compressor motor)
free of charge, if found defective in material or
workmanship.
The above warranty coverage applies only to a freezer
which is used for storage of food for private household
purposes.
WARRANTY SERVICE ISAVAILABLE BY CONTACTING
THE NEAREST SEARS SERVICE
CENTER/DEPARTMENT IN THE UNITED STATES.
Installation
Inspection
When your new freezer is delivered, check thoroughlyfor
shipping damage and missing parts. If you find either,
please notify Sears at once.
Location is Important
Your new freezer will work best in a dry, ventilated place,
where the temperature falls between 65 and 110 E
Extreme temperatures can shorten the freezer'_ life. Very
high temperatures (such as in an unventilated garage in
summer) also will make your freezer cycle often,
increasing its operating cost.
Your freezer must be allowed enough space for proper air
circulation. This freezer is designed for FREESTANDING
INSTALLATION ONLY and should not be recessed or
built-in. Allow 3 inches of space on each side including
the rear and 4 inches on the top of the cabinet. This is
particularly important in hotter climates.
Pick a spot where the floor will support the weight of the
freezer fully loaded. It is best to keep your free_'er away
from an oven or other heat source. Pick a safe place,
indoors, away from flammables such as gasoline.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Part No. 8336460157610 Sears, Roebuck and Co., U.S.A.
(HF5017SW) 303096
