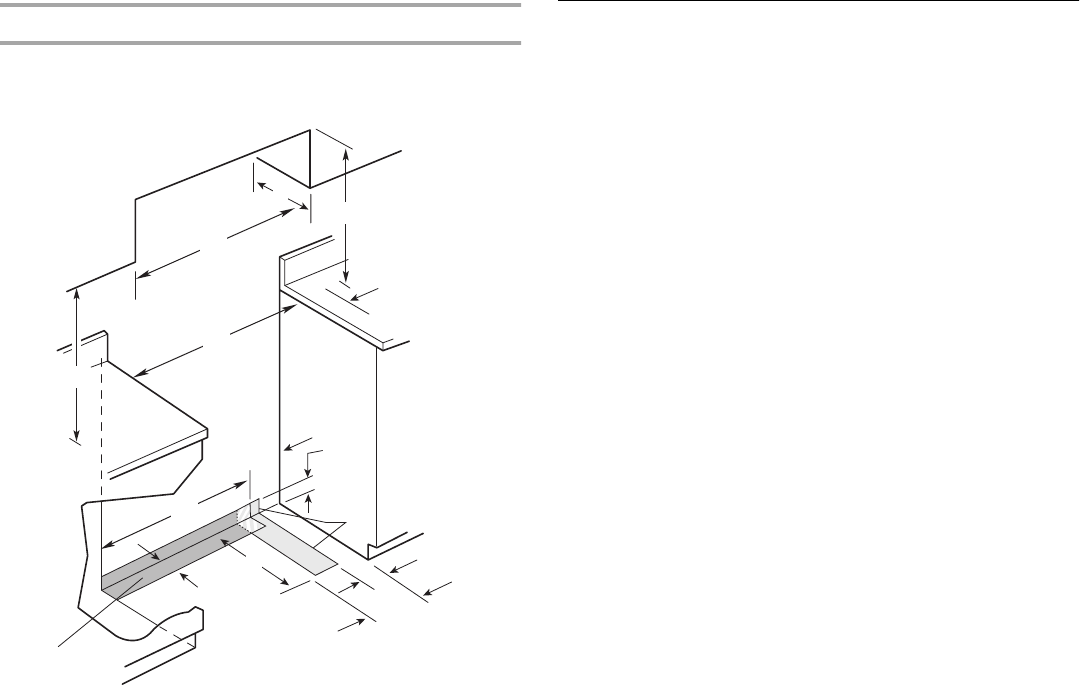

Installation Clearances
Cabinet opening dimensions shown are for 25" (64 cm)
countertop depth, 24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height.
*NOTE: Receptacle must be rotated 90° for Canadian
installation.
**NOTE: 42" (106.7 cm) minimum when bottom of wood or metal
cabinet is protected by not less than ¹⁄₄" (0.64 cm) flame
retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
48" (121.9 cm) minimum clearance between the top of the
cooking platform and the bottom of an unprotected wood or
metal cabinet.
If installing a hood above the range, follow the hood
instructions for dimensional clearances above the cooktop
surface.
Electrical Requirements - U.S.A. Only
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and wire gauge are in accordance with local
codes and that the ground path is adequate.
Do not use an extension cord.
Make sure that the electrical connection and wire size are
adequate and in conformance with the National Electrical Code,
ANSI/NFPA 70-latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association,
One Batterymarch Park,
Quincy, MA 02269
Electrical Connection
To properly install your range, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■ Do not ground to a gas pipe.
■ Check with a qualified electrical installer if you are not sure
the range is properly grounded.
■ Do not have a fuse in the neutral or ground circuit.
■ Range must be connected to the proper electrical voltage
and frequency as specified on the model/serial number rating
plate. (The model/serial number rating plate is located on the
right vertical surface of the oven door frame.)
■ Range must be connected to a grounded metal, permanent
wiring system.
■ A 4-wire or 3-wire, single phase, 208/240 volt, 60 Hz., AC
only electrical supply is required on a separate, 30-amp
circuit, fused on both sides of the line.
■ A time-delay fuse or circuit breaker is recommended. The
fuse size must not exceed the circuit rating of the range
specified on the model/serial rating plate located on the right
vertical surface of the oven door frame.
■ The range can be connected directly to the fused disconnect
(or circuit breaker box) through flexible, armored or
nonmetallic sheathed, copper or aluminum cable. The
flexible, armored cable extending from the fuse box or circuit
breaker box should be connected directly to the junction box.
See “Make Electrical Connection.”
■ Locate the junction box to allow as much slack as possible
between the junction box and the range so that the range can
be moved if servicing is ever necessary. Do not cut the
conduit.
■ A UL listed conduit connector must be provided at each end
of the power supply cable (at the range and at the junction
box).
■ Wire sizes and connections must conform with the rating of
the range (30 amps).
■ If the house has aluminum wiring, follow the procedure
below:
a) Connect the aluminum wiring to the copper wiring using
special connectors designed and UL listed for joining
copper to aluminum. Follow the electrical connector
manufacturer’s recommended procedure.
b) Aluminum/copper connection must conform with local
codes and industry-accepted wiring practices.
A.18" (45.7 cm) upper cabinet to countertop
B.28" (71.1 cm)
C.Junction box to be located in this shaded area, see NOTE*
D.4" (10.2 cm)
E.20" (50.8 cm)
F. 12" (30.5 cm)
G.5½" (14 cm)
H.Gas line opening to be located in this shaded area
I.3½" (8.9 cm)
J.8" (20.3 cm)
K.36¹⁄₄" (92.1 cm)
L.4" (10.2 cm) min. clearance from both sides of range to side
wall or other combustible material
M.For minimum clearance to top of range, see NOTE**
N.36" (91.4 cm) minimum upper cabinet width
O.13" (33 cm) maximum upper cabinet depth
B
C*
D
E
F
G
H
I
J
L
M
K
N
O
**
A
