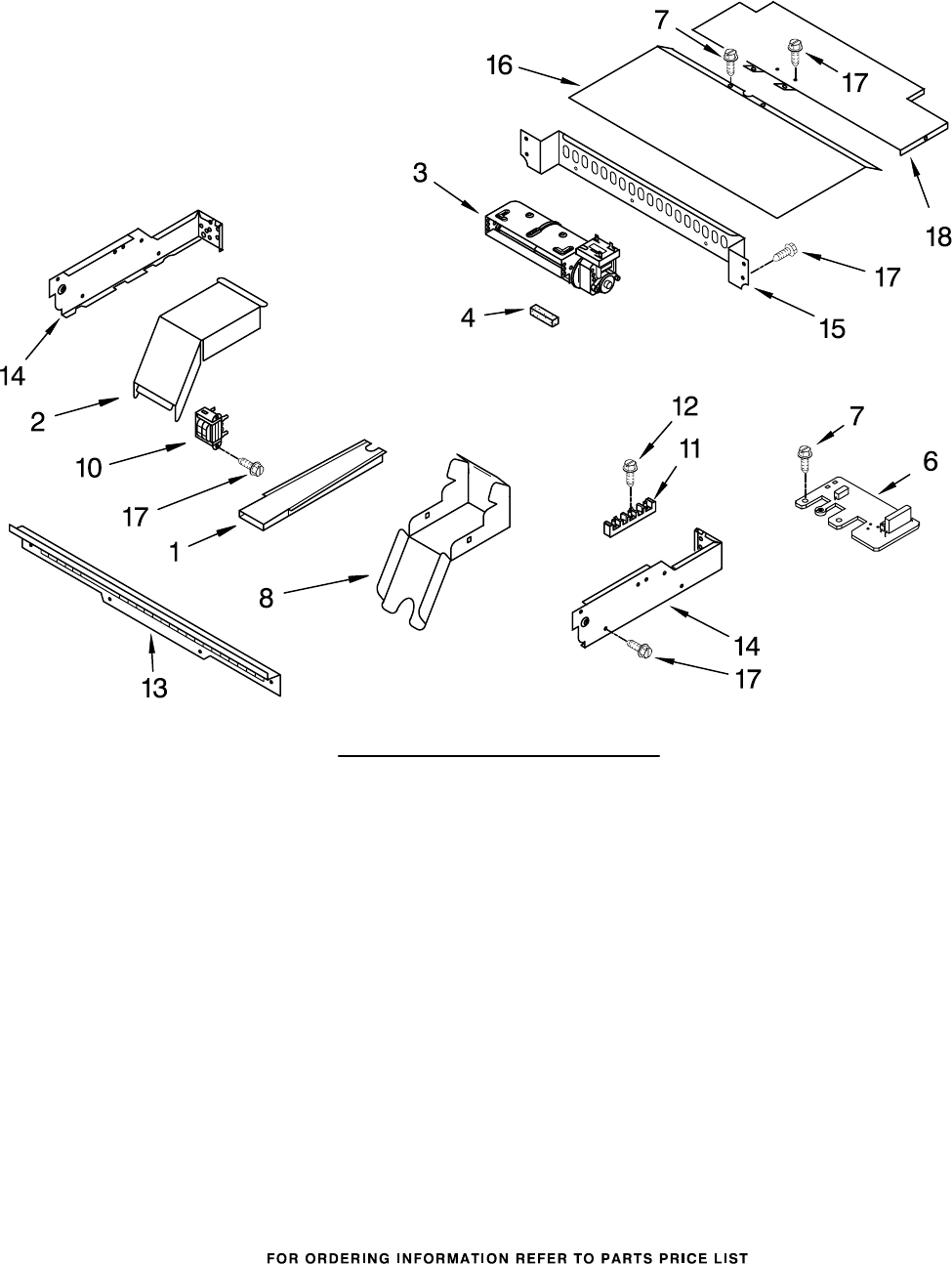

TOP VENTING PARTS
6
For Models: KEBC147VBL00,KEBC147VWH00,KEBC147VSS00
(Black) (White) (Stainless)
W10224607
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 4457289 Blower 60MM
4 4451758 Block, Foam
6 4451985 Suppressor
7 3400080 Screw
8 4455177 Elbow, Vent Bottom
10 9760587 Control,
Transformer
11 4449868 Block, Terminal
12 3400080 Screw
13 4448547 Vent,
Control Panel
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450549 Cover, Top Rear
17 4449809 Screw
18 4452365 Cover, Top Front
