3. Continue adjusting all of the leveling legs to raise the
refrigerator until the top is within at least 1" (2.54 cm) of the
top soffit.
NOTE: If an anti-tip board has been used, adjust the leveling
legs until the top of the refrigerator is within ¹⁄₄" (6.35 mm) of
the bottom of the anti-tip board as shown. Do not crush the
compressor cover.
IMPORTANT: Adjust in small increments to keep from
damaging the cabinet trim and causing problems with the
door alignment or top grille fit. To avoid damage to the cabinet
or leveling legs, do not apply more than 50 inch-pounds
(5.65 Nm) of torque to the leveling bolts. The leveling legs can
be extended to a maximum of 1¹⁄₄" (3.18 cm) below the rollers.
4. For Classic and Overlay models, additional adjustments may
be needed after the custom panels are installed.
Install Overlay and Classic Series
Custom Panels
IMPORTANT:
■ Install the custom handles prior to installing the panels on
the refrigerator. For more information on KitchenAid
custom handle selection, refer to the KitchenAid Catalog,
visit www.kitchenaid.com, or call 1-800-422-1230.
In Canada, visit www.KitchenAid.ca, or call
1-800-807-6777.
■ Create custom door overlay panels according to the
specifications in the “Overlay Series Custom Panels”
section.
■ KitchenAid is not responsible for the removal or addition of
molding or decorative panels that would not allow access
to the refrigerator for service.
Door Panel Installation
1. Remove all tape and door bracing from the refrigerator door(s)
and freezer drawer.
2. Open the refrigerator door(s) and freezer drawer and remove
the trims and corner caps on each door as shown.
3. Slide the custom panels into the trims on the refrigerator
door(s) and freezer drawer, making sure that the backer panel
fits into the hinge side trims.

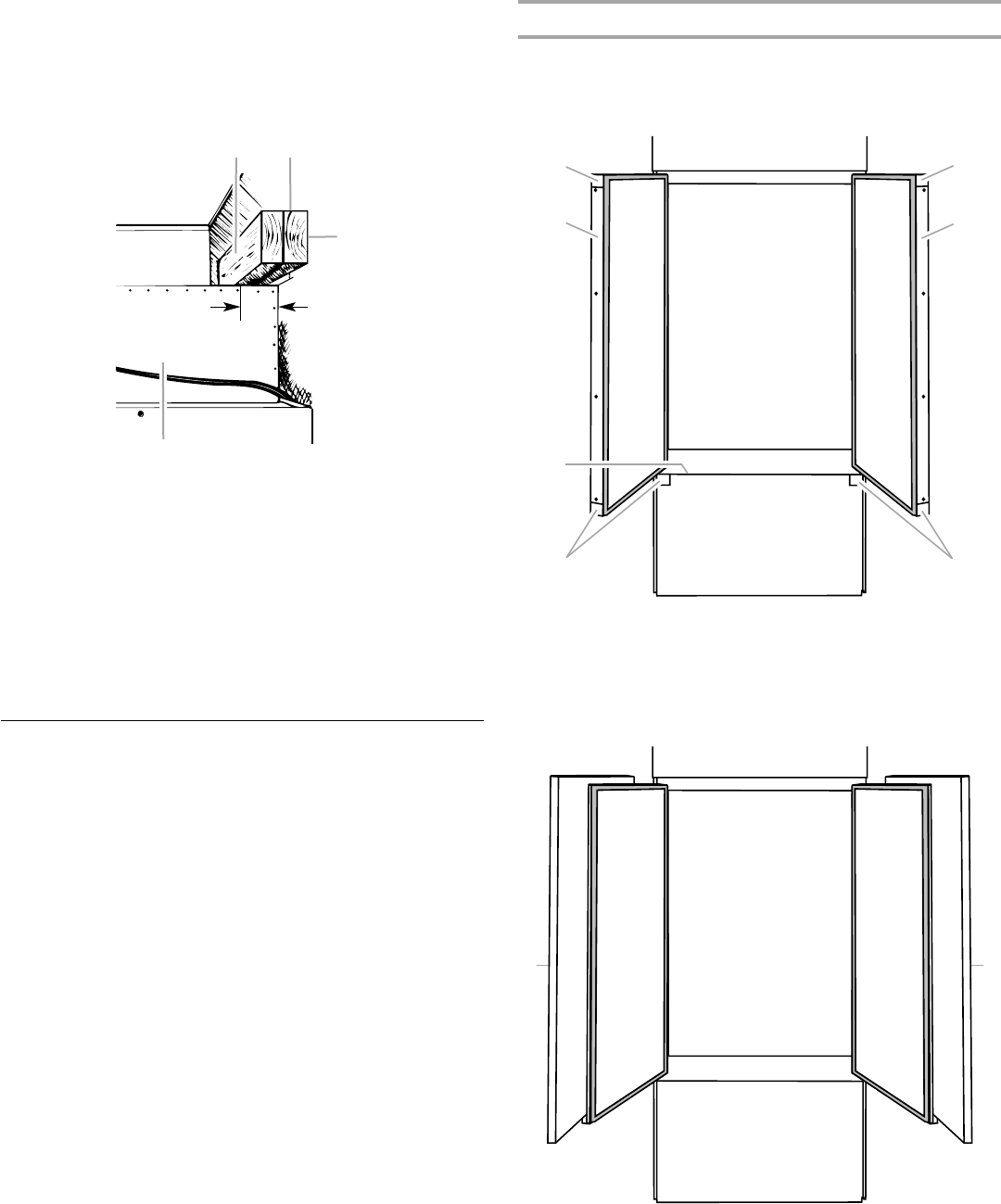

A.Center board
¹⁄₄
" (6.35 mm) max. above refrigerator
B.Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
C.Attach to studs with six #8 x 3" (7.6 cm) screws
D.Compressor cover
BA
C
2" (5 cm)
D
¹⁄₄" (6 mm)
max.
A.Corner caps
B.Refrigerator door trims
C.Freezer drawer trim
A.Panels
B
A
B
A
C
A
A
A
A
