WARNING
(FOR MODELS MANUFACTURED BEFORE 9/1/90)
WHEN ATTACHING WIRE CONNECTIONS< MAKE SURE
CARGLAS SLEEVING IS FULLY INSERTED THROUGH
OPENINGS AND COMPLETELY COVER TERMINAL ENDS.
FAILURE TO DO SO WILL CAUSE ELECTRICAL SHORTING.
G. Center Heater Card Assembly
1. Remove case cover. (Section A)
2. Remove 4 machine metal screws securing upper chassis.
3. Straghten twist tabs on upper chassis.
4. Disconnect both return springs at front of unit.
5. Remove both snap rings on upper chassis.
6. Slip off 2 heater jumper wires from chassis tabs.
7. Lift off upper chassis.
8. Lay unit on side. On underside of unit straighten center
row of twist tabs.
9. Remove 2 screws securing end panel to lower chassis.
(Figure 7)
10. Note: If thermal barriers are present on unit, remove
the 4 screws securing barrier to end panel. Do not remove
barriers. (Figure 5)
11. Straighten 3 twist tabs on end panel and the 1 tab on
center front panel. Pull off end panel.
12. Disconnect wiring connections to center heater card assembly.
13. Slide out center card assembly.
14. When replacing individual heater cards on center heater card
assembly, be sure to note correct positioning of ceramic spacers.
These spacers MUST be in correct position when new cards are
attached.
15. NOTE: Left side heater card has tap wire. When installing this
card, be sure tap wire faces front of unit.
16. When replacing heater card assembly, be sure all spacer eyelets
at ends of toast guides are in proper position.

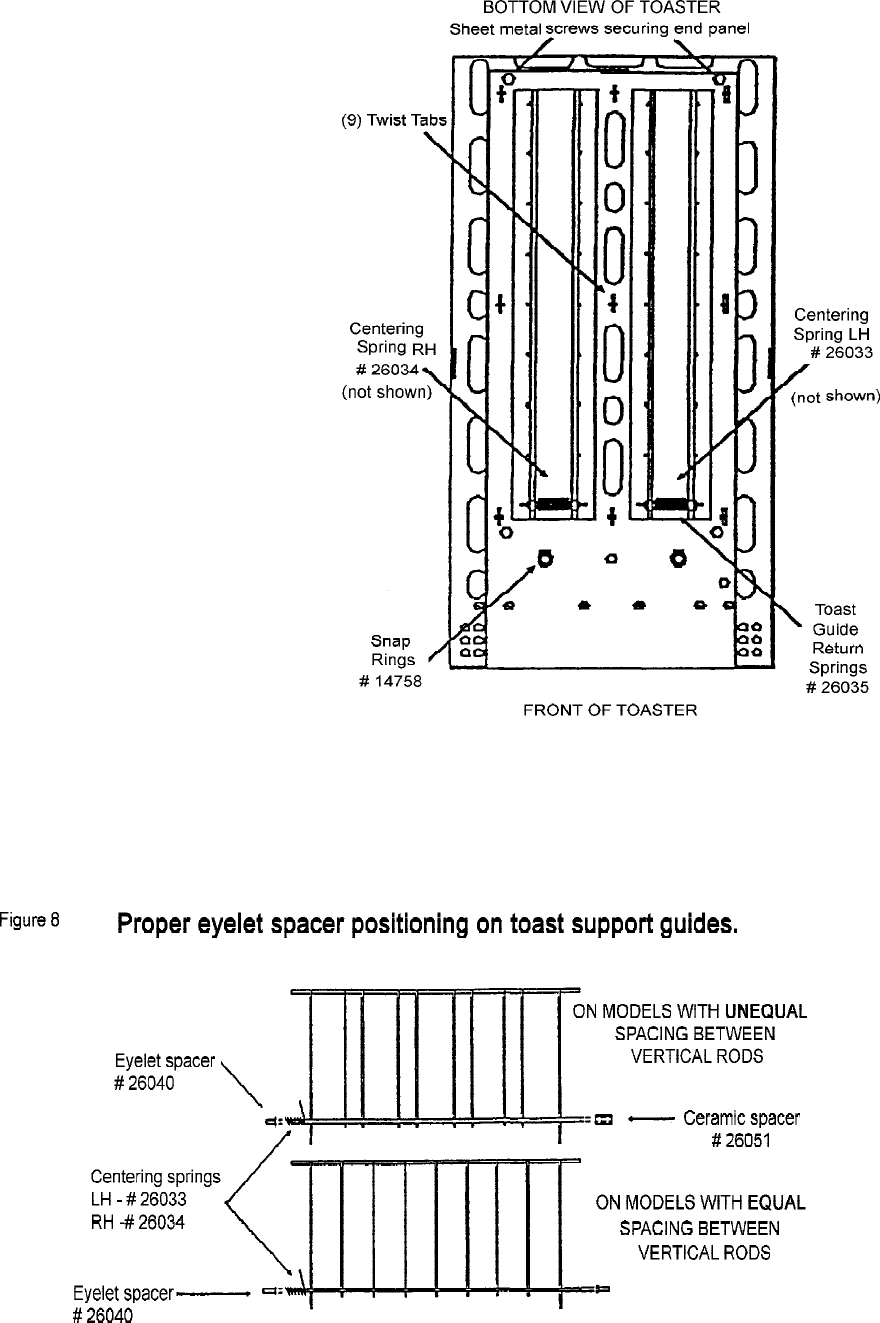

Figure 7
7
