Panasonic FV-07VB1 Ventilation Hood User Manual



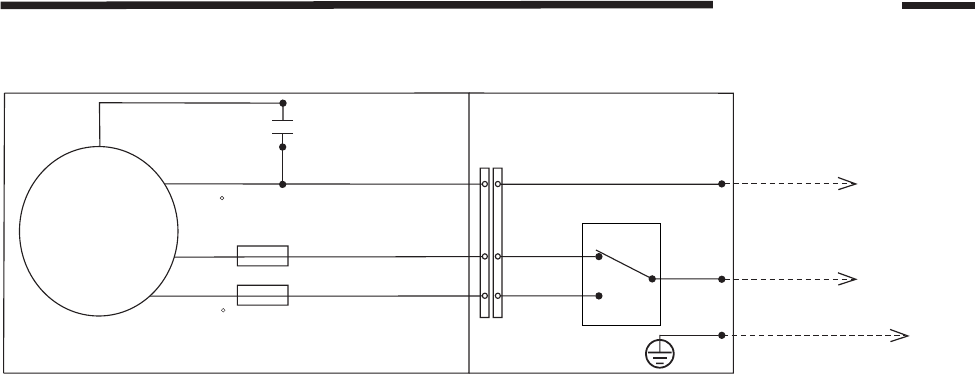

3. Wiring diagram
5
Thermally - protected
(114 Fuse in motor)
C
Fan body
Junction box
Black
Switch
Capacitor
Earth ground
AC120V 60Hz
Power supply
White
Live
Neutral
Motor
White
Red
Black
Black
White
Green
Yellow
Yellow
Thermally - protected
(114 Fuse in motor)
C
FV-07VB1
I-Standard
II-Boost
