The deflector connects to the top of
Bracket “A” and forces the air out

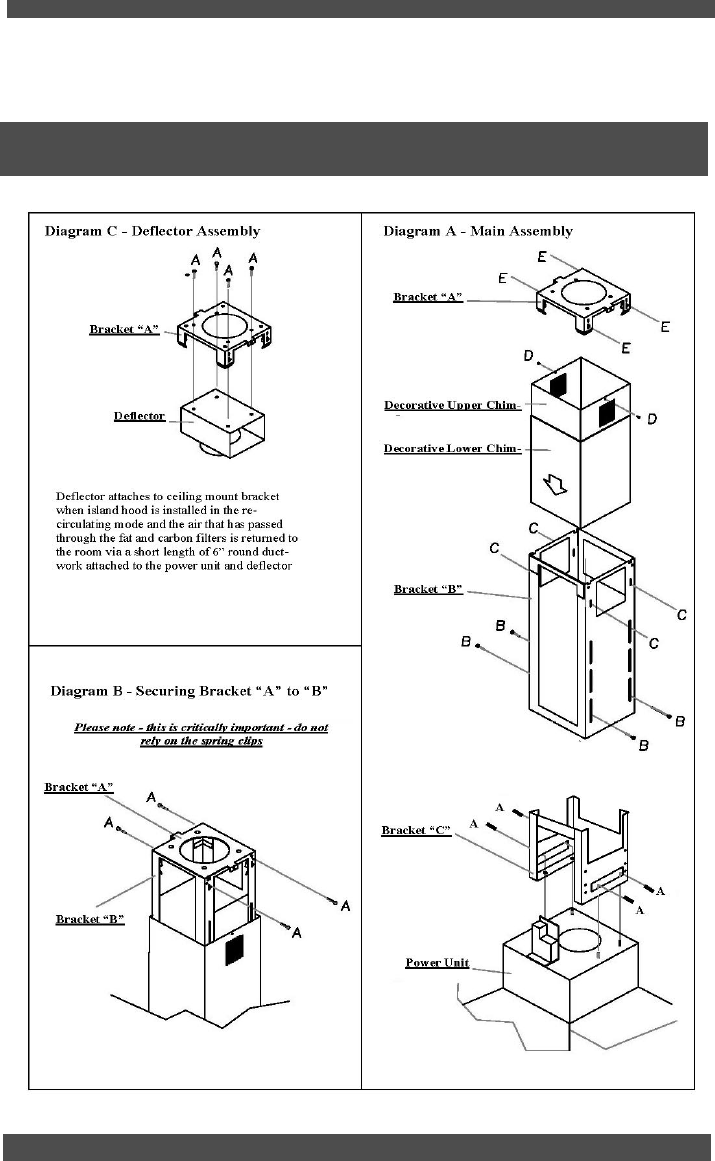

SCHEMATIC OF MODULAR ISLAND COMPONENTS
through the grills on the side of the
chimney section back into the
room.
