Re-Circulating Requirements
Fit the carbon filter after the
installation is complete – these fit in
behind the aluminum grease filter.
A short length of ductwork must be
connected from the exhaust outlet
up to the deflector (must be
purchased with hood).
The deflector, after attaching part B
with screws E connects to the top of
Bracket “A” and forces the air out
through the grills on the side of the
chimney section back into the room.
(see diagram C).

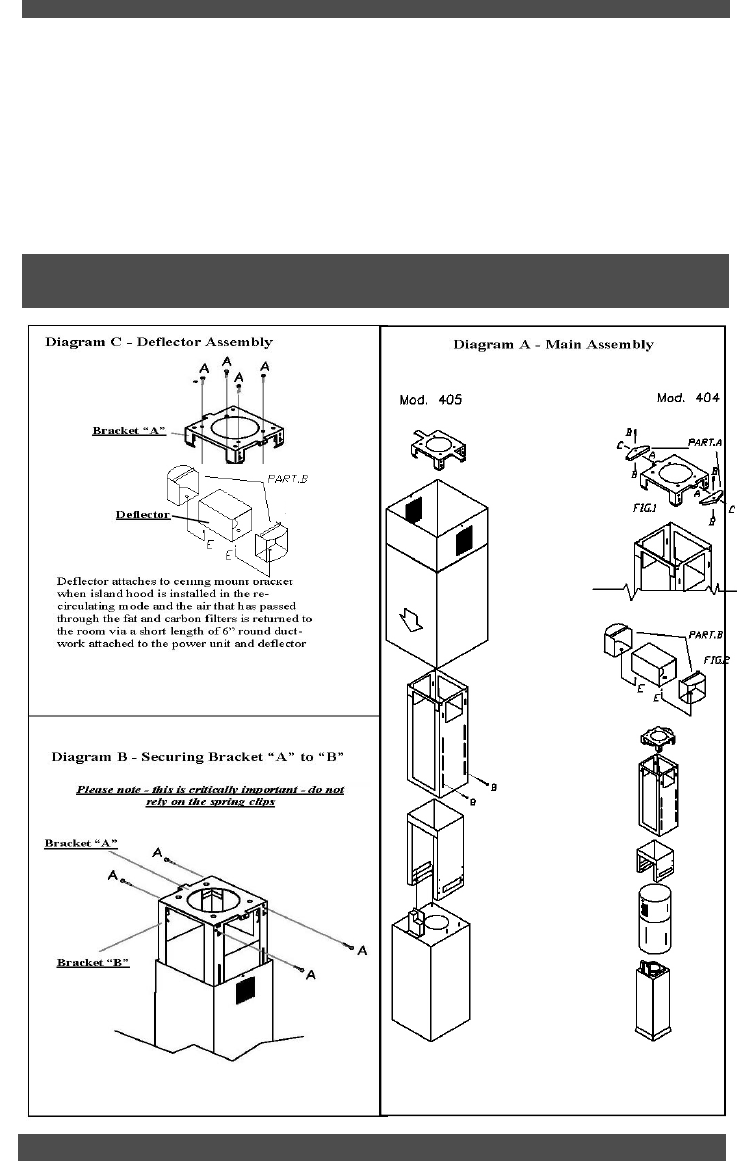

SCHEMATIC OF MODULAR ISLAND COMPONENTS
