Whirlpool 3ED27DQ Refrigerator User Manual

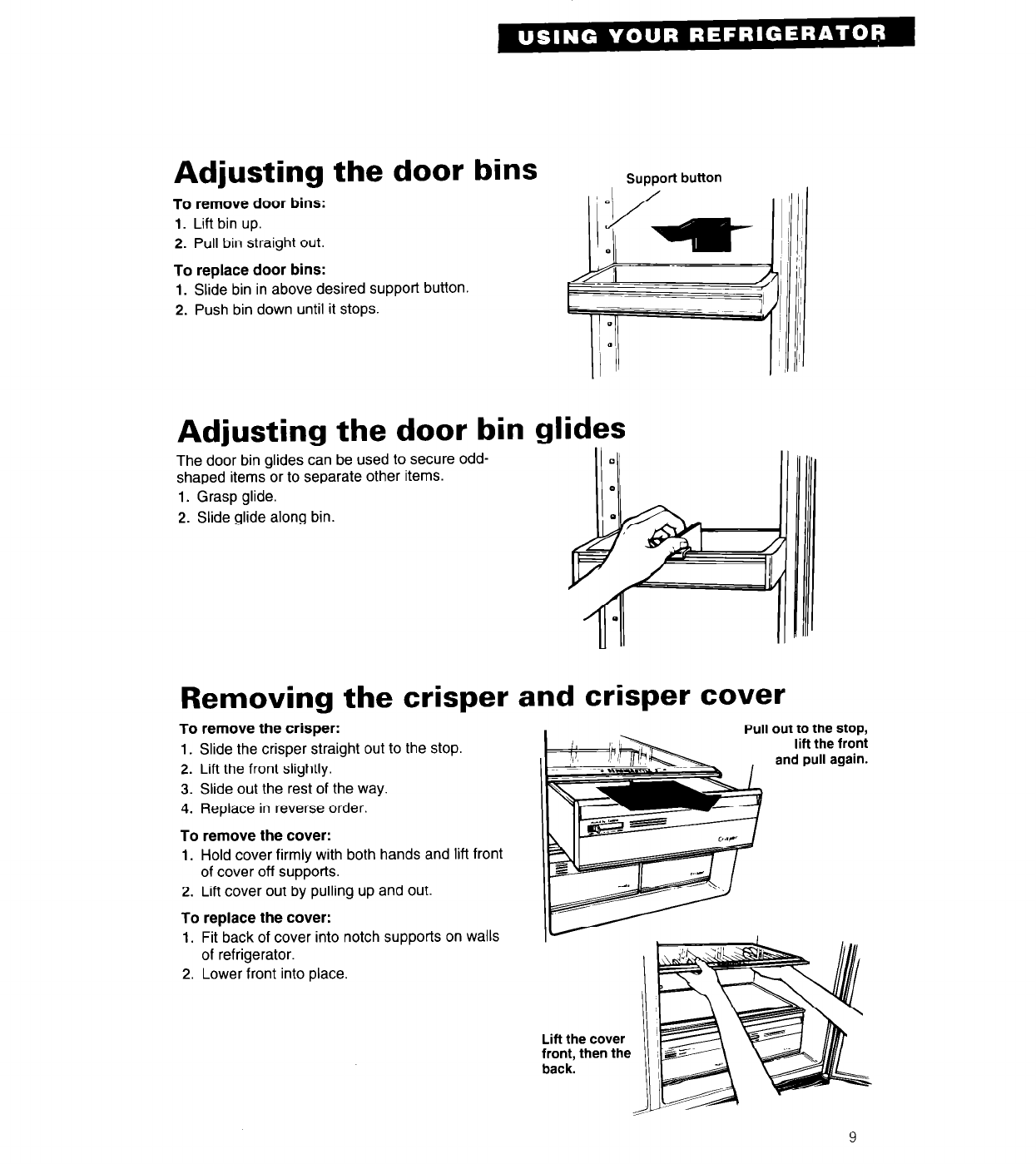

Adjusting the door bins
To remove door bins:
1. Lift bin up.
2. Pull bin straight out.
To replace door bins:
1. Slide bin in above desired support button.
2. Push bin down until it stops.
support
button
Adjusting the door bin glides
The door bin glides can be used to secure odd-
shaped items or to separate other items.
1.
Grasp glide.
2. Slide glide along bin.
Removing the crisper and crisper cover
To remove the crisper:
1. Slide the crisper straight out to the stop
2. Lift the front slightly.
3. Slide out the rest of the way.
4. Replace in reverse order.
To remove the cover:
1.
Hold cover firmly with both hands and lift front
of cover off supports.
2. Lift cover out by pulling up and out.
To replace the cover:
1.
Fit back of cover into notch supports on walls
of refrigerator.
2. Lower front into place.
Lift the cover
front, then the
back.
